Loads shift, angles tighten, and surfaces fight back, so you need a clear plan for lifting chains and accessories that survives real jobs. Start with markings and standards, then match finish and fittings to the site, and finally set geometry with numbers rather than guesses. This field guide shows how to read the steel, how to pair hooks, shackles, shorteners, and swivels, and how to run a short inspection that crews finish before the first pick.

Read the Steel First

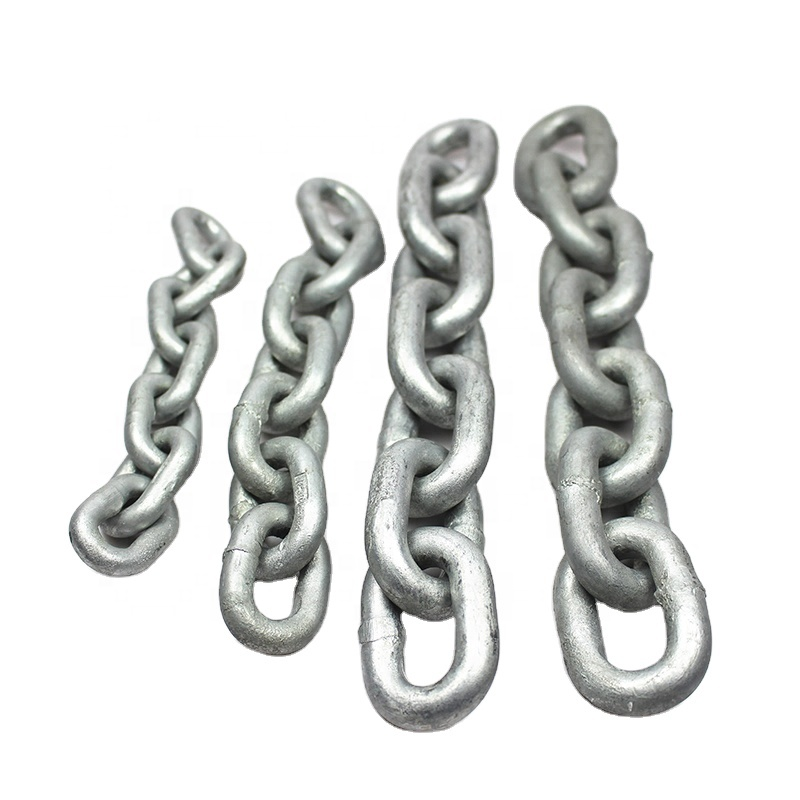

Ignore paint and focus on markings. Chain links carry grade stamps (often “8” for Grade 80 or “10” for Grade 100) and a size mark. The sling tag lists Working Load Limits (WLL) by hitch (vertical, choke, basket) and by angle, plus a serial or batch ID and manufacturer ID. Hooks, shackles, shorteners, and swivels carry their own WLL and maker marks. For rule sets, you reference ASME B30.9 and EN 818-4 for chain slings and ASME B30.26 or EN 13889 for shackles and many fittings. Read every stamp, then photograph the tag and the hardware so traceability stays tight.

Match Lifting Chains and Accessories to the Job

You choose the system by environment and motion, then you size from the tag.

Indoor fabrication and MRO: black-oxide or phosphate G80/G100 wipes clean and keeps marks readable.

Coastal yards or splash zones: zinc–nickel coated alloy sheds salt faster; rinse gear and oil pivots.

Washdown or chemical duty: stainless (304/316) resists pitting; match stainless hooks and shackles to curb galvanic attack.

Hot work nearby: follow the maker’s temperature curve and log heat exposure in the sling record.

Long travel, wind, or vibration: pick self-locking hooks so the latch stays shut under load.

Tight headroom or offset CG: add shorteners or an adjustable head so you trim leg length and reopen angles.

Spin risk: add an in-line swivel and keep the force in line; avoid side loading.

Changing angles at the head: use bow shackles; run the pin through the hardware and face the bow toward the legs.

Accessory Quick Map — Lifting Chains and Accessories

Always let the lowest-rated component set the limit.

Control Geometry—Angle Drives Tension

Angle changes leg tension faster than any other variable, so you measure rather than guess. Hold an included angle near 60° whenever space allows; if headroom squeezes, add a spreader or trim long legs evenly to reopen geometry.

Two-leg quick check:
Tension per leg = Load ÷ (2 × sin θ), with θ measured from vertical for one leg.

For three- or four-leg assemblies, plan conservatively as if three legs carry while the fourth balances, then choose chain diameter and hook size from the sling tag’s angle table. Lift 150 mm, pause, confirm angle and balance, then travel.

Set Up a Clean Pick—Nine Steps

Lay the sling flat and roll links until grade stamps face up; clear twists.

Inspect shorteners, hooks, shackles, and the master link; replace scarred or cracked parts.

Seat the master link in the crane hook; close the latch and check free swing.

Engage hooks in rated padeyes or shackles; align eyes to the line of pull.

Snug the rig and measure the angle with a card or an inclinometer.

Trim legs with shorteners until the load sits level and the plan angle returns.

Guard corners wherever chain meets a radius or edge.

Lift 150 mm, pause, re-check latch closure, balance, and clearances.

Travel slowly, then land straight and unhook in reverse order.

Inspection that Crews Actually Finish

You keep checks short and measurable; then you log them with photos.

Tag & traceability: confirm grade, WLL by hitch and angle, serial/batch, and maker ID.

Pitch growth: measure five consecutive links under light tension; retire legs that exceed the maker’s elongation limit.

Crown wear: gauge link diameter; retire legs at the published wear limit for your brand and standard.

Hooks & latches: cycle the latch ten times; verify throat opening and look for cracks at the saddle or neck.

Shorteners & shackles: inspect pocket faces, sidewalls, pins, and threads; fit cotters on bolt-type shackles.

Records: file the proof-test and the last inspection sheet with the sling record.

Use Cases That Reward Good Pairing

Structural steel and nodes
You land beams and rotate heavy nodes while grinders throw sparks. G80 or G100 chain handles abrasion, self-locking hooks keep holds during pauses, and bow shackles at the head tolerate sweep.

Precast and yard handling
You steer panels past braces and uneven inserts. Shorteners let you equalize leg length, guards protect corners, and a quick angle check keeps WLL honest.

Machinery moves and plant maintenance
You lift gearboxes and motors in tight steel. A two-leg chain sling plus a leveler gives precise pitch control, while an in-line swivel stops twist.

Marine and offshore
Wind and swell keep angles alive. Multi-leg chain slings with self-locking hooks hold control; zinc–nickel or stainless finishes reduce cleanup; crews rinse and lube at day’s end.

Tight access installs
Small padeyes and narrow routes demand slim chain sizes and neat hardware. Adjustable heads keep shorteners at the hook so the layout stays tidy.

Mistakes You Avoid

Trusting color over stamps. Read the tag and the steel; treat finish as cosmetic.
Guessing at weight or angle. Pull the drawing or a scale reading and use an angle card.
Mixing grades. Keep chain, hooks, shackles, and shorteners in the same grade family.
Tip-loading hooks. Seat the load in the hook bowl and keep lines in plane.
Skipping edge protection. Fit guards before the pick, not after the scar.

Conclusion

Read stamps, match grades across every component, measure angles with tools, protect edges, and log inspections, and lifting chains and accessories will carry demanding work with control and traceability—contact TOPONE CHAIN today for certified chain slings, matched accessories, and full documentation for your next job.
