Loads shift, angles tighten, and surfaces fight back, so you need a plan that turns uncertainty into repeatable steps. This guide frames lifting chains and slings as one system: you read stamps, you follow standards, you set geometry with numbers, and you log inspections that any auditor can follow. Use the checklists, angle tips, and tables below to choose confidently across shops, yards, and decks while you keep margin and move fast.

Read the steel first

Start at the link and the tag. Chain links carry grade stamps (often “8” for Grade 80 or “10” for Grade 100) and a size mark; the sling tag lists Working Load Limits (WLL) by hitch and by angle, plus a serial/batch and maker ID. Hooks, shackles, shorteners, and master links show their own WLL and IDs. Align everything to one rule set—common references include ASME B30.9 and EN 818-4 for chain slings and ASME B30.26 / EN 13889 for shackles and many fittings. Read the metal, photograph the marks, and file the proof test with the sling record.

Lifting chains and slings—where each option wins

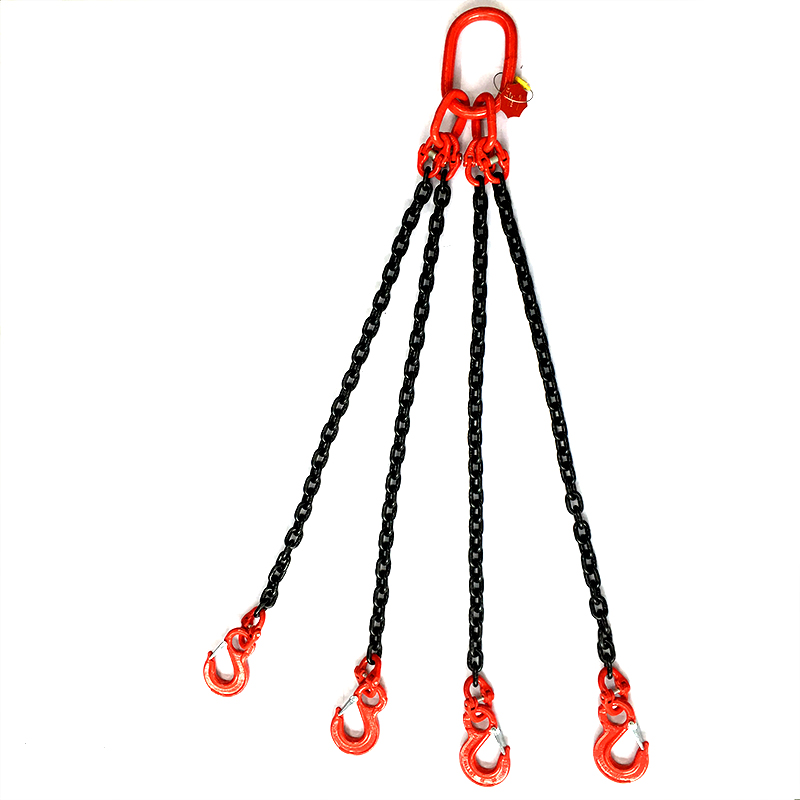

Alloy chain slings handle heat, sparks, and abrasion; shorteners let you trim leg length and reopen angles without a re-rig.
Wire rope slings bring stiffness and high crush resistance; they snake through hot paths when you protect bend radii and edges.
Web slings protect finished surfaces; softeners spread pressure and keep coatings intact.

Choose by environment first, then size from the tag:

Indoor fabrication and MRO: black-oxide or phosphate G80/G100 cleans fast and keeps stamps readable.

Coastal or splash zones: zinc–nickel coated alloy sheds salt; rinse after splash and oil pivots.

Washdown or chemicals: stainless (304/316) resists pitting; match stainless hooks and shackles to curb galvanic attack.

Hot work nearby: follow the maker’s temperature curve and log heat exposure.

Selection matrix — lifting chains and slings

Always confirm WLL on the sling tag before any pick.

Control geometry—measure, then move

Angle drives tension more than any other factor, so measure rather than guess. Hold an included angle near 60° when space allows; if headroom squeezes, add a spreader or shorten long legs evenly.

Two-leg quick check
Tension per leg = Load ÷ (2 × sin θ), with θ measured from vertical for one leg.

For three- or four-leg rigs, plan conservatively as if three legs carry while the fourth balances; then choose chain diameter and hook size from the sling tag’s table. Lift 150 mm, pause, re-check angle and balance, then travel.

Accessory map — lifting chains and slings

Let the lowest-rated component set the limit.

Field setup—follow one clean sequence

1. Lay the sling flat; roll links until grade stamps face up and legs untwist.

2. Inspect shorteners, hooks, shackles, and the master link; replace scarred or cracked parts.

3. Seat the master link in the crane hook; close the latch and check free swing.

4. Engage hooks in rated padeyes or shackles; align eyes to the line of pull.

5. Snug the rig and measure the angle with a card or an inclinometer.

6. Trim long legs, add a spreader, and fit guards on sharp radii; hold the plan angle.

7. Lift 150 mm, pause, re-check latch closure, balance, clearances, and pin security.

8. Travel slowly; steer clear of snag points; watch corner guards.

9. Land straight; release tension and unhook in reverse order.

Inspection—use numbers, not hunches

Keep the routine short and measurable, then log results with photos.

Tag & traceability: confirm grade, WLL by hitch and angle, serial/batch, and maker ID.

Pitch growth: measure five consecutive links under light tension; retire legs that exceed the maker’s elongation limit.

Crown wear: gauge link diameter; retire legs at the published wear limit for your brand and standard.

Hooks & latches: cycle the latch ten times; verify throat opening; reject cracks at the saddle or neck.

Shorteners & shackles: inspect pocket faces, sidewalls, pins, and threads; fit cotters on bolt-types; replace bent parts.

Records: store the proof test and the last inspection sheet with the sling file.

Mistakes you avoid

Trusting color over stamps. Read the tag and the steel; treat finish as cosmetic.
Guessing at weight or angle. Pull drawings or a scale reading and use an angle card.
Mixing grades. Keep chain, hooks, shackles, and shorteners in the same grade family.
Tip-loading hooks. Seat the load in the hook bowl and keep lines in plane.
Skipping edge protection. Fit guards before the pick, not after the scar.

Quick reference at the hook

Hold 60° included angle whenever you can.

Keep master-link inside width ≥ 5× chain diameter.

Keep hook throat ≥ 4× chain diameter.

Match component grades; the lowest grade rules the assembly.

Photograph stamps and tag; file the proof test with the job.

Conclusion

Read stamps, match grades, measure angles with tools, protect edges, and log inspections, and lifting chains and slings will carry demanding work with control and traceability—contact TOPONE CHAIN today for certified chain slings, matched hardware, and full documentation for your next job.
