Every lift brings moving targets: off-center loads, tight headroom, and edges that bite back. You keep control when you treat lifting chains and shackles as one rated system, read the steel instead of the paint, and set geometry with numbers rather than guesses. This guide maps real-world selection rules, shows how to match grades and fittings, and lays out a short setup and inspection routine that crews finish before the first pick. Use it in shops, yards, and on decks, and you’ll move faster while audits stay simple.

Read the steel, not the color

Start at the link. Grade stamps on the chain (often “8” for Grade 80 or “10” for Grade 100) and a size mark tell you the material class. A sling tag lists Working Load Limits (WLL) by hitch (vertical, choke, basket) and by angle, plus a serial or batch ID and a maker ID. Hooks, shackles, shorteners, master links, and swivels carry their own WLL and marks. You match all pieces to one rating language and you let the lowest-rated component govern capacity. For rule sets, you consult ASME B30.9 and EN 818-4 for chain slings and ASME B30.26 or EN 13889 for shackles and many fittings.

Choose the environment first

You pick finish and alloy for where the gear works, then you size from the tag.

Indoor fabrication and MRO: black-oxide or phosphate G80/G100 wipes clean and keeps stamps visible.

Coastal yards or splash zones: zinc–nickel coated alloy sheds salt faster; rinse after splash and oil pivots.

Washdown or chemical plants: stainless (304/316) resists pitting; match stainless hooks and shackles to curb galvanic attack.

Hot work nearby: follow the maker’s temperature curve and log heat exposure so the next inspection checks the right places.

Control geometry—angle drives tension

Angles multiply leg tension faster than any other variable, so you measure rather than guess. You hold an included angle near 60° when space allows; if headroom squeezes, you add a spreader or trim legs evenly to reopen the angle.

Two-leg quick check
Tension per leg = Load ÷ (2 × sin θ), where θ equals the angle from vertical for one leg.

For three- or four-leg assemblies, you plan conservatively as if three legs carry while the fourth balances, then you choose chain diameter and hook size from the sling tag’s angle table. You lift 150 mm, pause, re-check angle and balance, then travel.

Pick shackles that match the motion

Shackles connect the system and handle sweep at the head or at the load. You read WLL, size, maker ID, and a trace code on the body and the pin, then you fit the style that matches the geometry.

Shackle selection table — lifting chains and shackles

Always match shackle WLL to the highest leg tension, not to the total load.

Build one rating path from hook to load

You size the master link so the crane latch clears; as a field rule, keep inside width ≥ 5× chain diameter. You choose self-locking hooks for long travel, wind, or vibration; you keep spring-latch sling hooks for short, protected moves. You set hook throat opening ≥ 4× chain diameter so links seat in the bowl without pinch. You add shorteners (adjustable heads or grab clutches) to trim leg length and reopen tight angles. You place in-line swivels where loads tend to spin and you keep the force in line.

Field setup—repeat the same steps

1. Lay the sling flat; roll links until grade stamps face up and legs untwist.

2. Inspect shorteners, shackles, hooks, and the master link; replace scarred or cracked parts.

3. Seat the master link; close the crane latch and confirm free swing.

4. Pin bow shackles through padeyes where legs may sweep; face the bow toward the legs.

5. Hook into rated points; seat loads deep in the hook bowl.

6. Snug the rig and measure the angle with a card or an inclinometer.

7. Trim long legs, add a spreader, and fit guards on sharp radii; hold the plan angle.

8. Lift 150 mm, pause, re-check latch closure, balance, clearances, and shackle pins.

9. Travel slowly; land straight; release tension; unhook in reverse order.

Inspection—use numbers, not hunches

You keep checks short and measurable, then you log them with photos so audits move fast.

Tag & traceability: confirm grade, WLL by hitch and angle, serial/batch, maker ID.

Pitch growth: measure five consecutive links under light tension; retire legs that exceed the maker’s elongation limit.

Crown wear: gauge link diameter; retire legs at the published wear limit for your brand and standard.

Hooks & latches: cycle the latch ten times; verify throat opening; reject cracks at the saddle or neck.

Shackles & pins: check thread condition and straightness; fit cotters on bolt-types; replace bent pins.

Shorteners & connectors: inspect pocket faces and sidewalls; seat one full link only.

Records: store the proof test and the last inspection sheet with the sling file.

Avoid the usual traps

Trusting color over stamps. You read the tag and the steel; finish only helps with housekeeping.
Guessing at weight or angle. You pull drawings or a scale reading and you use an angle card.
Mixing grades. You keep links, hooks, shackles, and shorteners in the same grade family; the lowest grade rules.
Tip-loading hooks. You seat the load in the hook bowl and you keep lines in plane.
Skipping edge protection. You fit guards before the pick, not after the scar.

Where lifting chains and shackles earn their keep

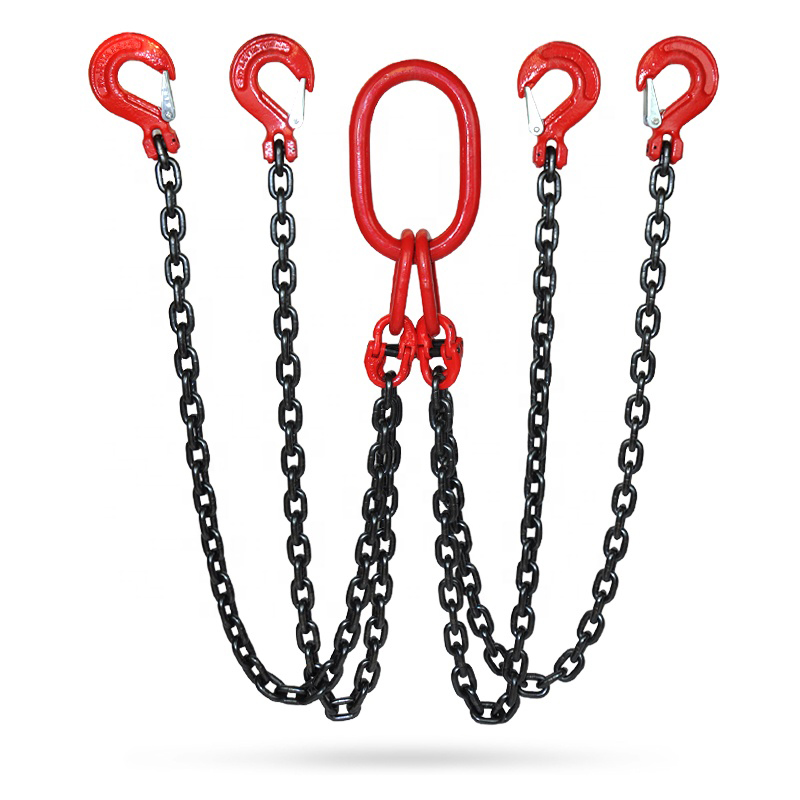

Structural steel and nodes demand secure travel across wind; multi-leg alloy chain slings plus bow shackles keep the head calm while fitters dog pieces into position.
Precast and yard handling rewards quick angle control; shorteners equalize leg length while guards protect corners.
Machinery moves and MRO need pitch control; a two-leg chain sling and a load leveler align feet and shims on the first try.
Marine and offshore bring motion and salt; coated alloy or stainless hardware keeps cleanup short while bow shackles tolerate sweep at the head.
Tight access installs call for slim chain sizes and neat hardware; adjustable heads keep shorteners tidy at the hook.

Conclusion

Read stamps, match grades, measure angles, protect edges, and log inspections, and lifting chains and shackles will carry demanding work with control and traceability—contact TOPONE CHAIN today for certified chain slings, marked shackles, and full documentation for your next job.
