Every safe chain sling starts at the head. Choose the lifting chain master link correctly, and your welded round-link sling breathes through the hook, carries clean angles, and keeps traceability tight. Rush that choice, and you fight pinch, chatter, and surprise overloads. This guide shows how to match master links to crane hooks and leg counts, how to size clearances, how to control geometry with shorteners and spreaders, and how to verify stamps, tags, and proof data before the first pick.

What the master link actually does

The master link creates one rated path from crane hook to chain legs. It sets head behavior, shares load into the sub-links, and gives you space for latches, swivels, and shorteners. Because it anchors the system, you read three things before anything else: the WLL stamped on the master link body, the grade/size pairing it was built for, and the leg count rating of the sub-assembly.

Speak one rating language: the lowest WLL among the master link, sub-links, chain, and hooks governs the sling.

Fit the crane hook first—then choose legs

You size the master link to the hook, not to the catalog photo. Seat the master link deep, let the latch close freely, and keep the hook throat uncrowded so the head swings without pinch.

Field fit rules that work across brands

Keep inside width generous so the crane latch clears without rubbing.

Keep inside length ample so the master link stays centered in the hook bowl during bumps and stops.

Avoid adapters unless the hook and head geometry truly require them; each adapter adds tolerance stack and inspection work.

Once the head fits cleanly, you choose the sub-assembly that matches leg count (2-, 3-, or 4-leg) and chain diameter.

Configuration guide — lifting chain master link & sub-assembly

Use the manufacturer’s tables for exact pairings; let the smallest stamp rule capacity.

Control geometry—angle drives tension

Master links do not fix bad angles; they reveal them. You set angles with tools, not guesses, and you trim length at the head with rated shorteners.

Target an included angle ≈ 60° between adjacent legs whenever headroom allows.

For two legs, compute per-leg tension:
Tleg=Load2×sin⁡θT_{ ext{leg}} = rac{ ext{Load}}{2 imes sin heta}
where θ is the angle from vertical.

For three or four legs, plan conservatively as if three legs carry while the fourth stabilizes.

When headroom squeezes angles shut, add a spreader beam or shorten long legs evenly; never “make do” by crowding the hook throat.

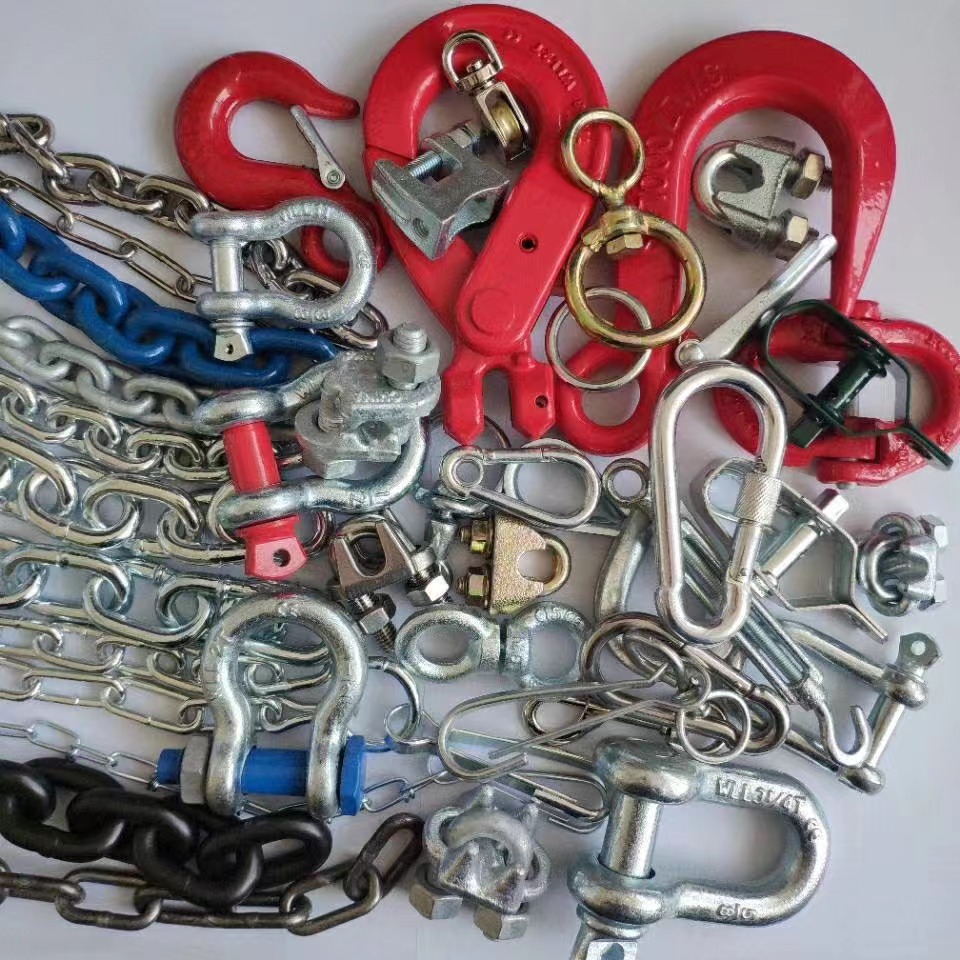

Pair the master link with the right fittings

You turn capacity into control with fittings that match the route.

Self-locking hooks at the load end for long travel, wind, or pauses; the latch locks under load and stays shut.

Grab/shortening hooks or clutches mounted near the master link so crews trim opposite legs quickly and keep the load level. Capture one full link centered in the pocket—never a half link.

Bow shackles at the head when legs may sweep; run the pin through the hardware and face the bow toward the legs so the pin works in pure shear.

In-line swivel only when the load path stays straight; a swivel never cures misalignment.

Selection table — materials, finish, and head behavior

Read the metal—traceability keeps audits short

A lifting chain master link must show readable WLL, maker ID, and, on sub-assemblies, the leg count and chain diameter it supports. Your chain links show grade marks (e.g., “8” or “10”) and size; your sling tag lists WLL by hitch and angle plus serial/batch. You photograph these marks at receiving and you file them with the proof sheet that ties the serial to the test machine, load level, and date.

Ask your supplier for:

Proof-test certificates per assembly;

Dimensional checks for the head and sub-links;

Material pedigree for chain and forged fittings.

Build a repeatable setup around the head

1. Stage the sling with stamps up; clear twists.

2. Inspect the master link, sub-links, hooks, shackles, and shorteners; replace scarred or cracked parts.

3. Seat the master link in the crane hook; confirm latch travel and free swing.

4. Connect at the load; align eyes to the line of pull; seat hooks deep in the bowl.

5. Add corner guards wherever chain meets a radius or edge.

6. Snug, then measure angles on both faces; trim opposite legs at the head.

7. Test-bump 150 mm; pause; re-check angles, latch closure, and pin security; only then travel.

Receiving & pre-lift checks — quick table

Common mistakes—and the fast fixes

Crowding the hook throat. Upsize the master link or move to the correct sub-assembly so the latch closes cleanly.
Color over stamps. Read steel marks and the tag; paint never proves grade.
Half-link captures. Reseat a full link in the shortener or change the pocket.
Guessing at angle. Measure θ with a card or inclinometer and size from the tag.
Mixing grades. Keep chain, master link, sub-links, hooks, and shackles in one family; the smallest WLL rules.

Where the right master link pays off

Skids with uneven padeyes: a correctly sized head plus head-mounted shorteners lets crews reopen angles fast and level the load without a re-rig.

Tall modules with roof gear: a spreader under a properly fitted master link keeps latches clear and calms torsion during long travel.

Marine decks: a generous head with bolt-type shackles resists vibration, while clear stamps and photos shorten dockside checks.

Conclusion

Fit the crane hook first, match the sub-assembly to leg count and chain size, control angles with tools, and document every mark, and your lifting chain master link will turn rough jobs into clean, predictable lifts—contact TOPONE CHAIN today for certified master link assemblies, matched round-link chain slings, and complete documentation for your next job.
