Every lift changes: loads shift, angles tighten, and surfaces bite back. You keep control when you pick chain rigging equipment with the right grade and then match chain rigging accessories that lock, swivel, shorten, or protect without guesswork. This guide maps real applications, explains the standards you should cite, shows fast angle math you can apply at the hook, and lists inspection steps your crew can finish before the first pick.

1) What Counts as Chain Rigging Equipment

You build the system around one rated language—hook to load. That language comes from standards and stamps:

Chain slings (Grade 80/100) with a tag that cites ASME B30.9 or EN 818-4 and lists Working Load Limits (WLL) by hitch and by angle.

Master links sized for the crane hook and the leg count, marked with WLL and maker ID.

Hooks (spring-latch or self-locking) marked with WLL and grade; self-locking models shut under load and stay shut during pauses.

Shorteners/adjusters that seat a full link and hold it; the casting or body shows the same grade as the chain.

Shackles marked to ASME B30.26 / EN 13889; bow shapes tolerate leg sweep, while D shapes prefer in-line pulls.

Swivels that rotate in-line only and carry a clear WLL.

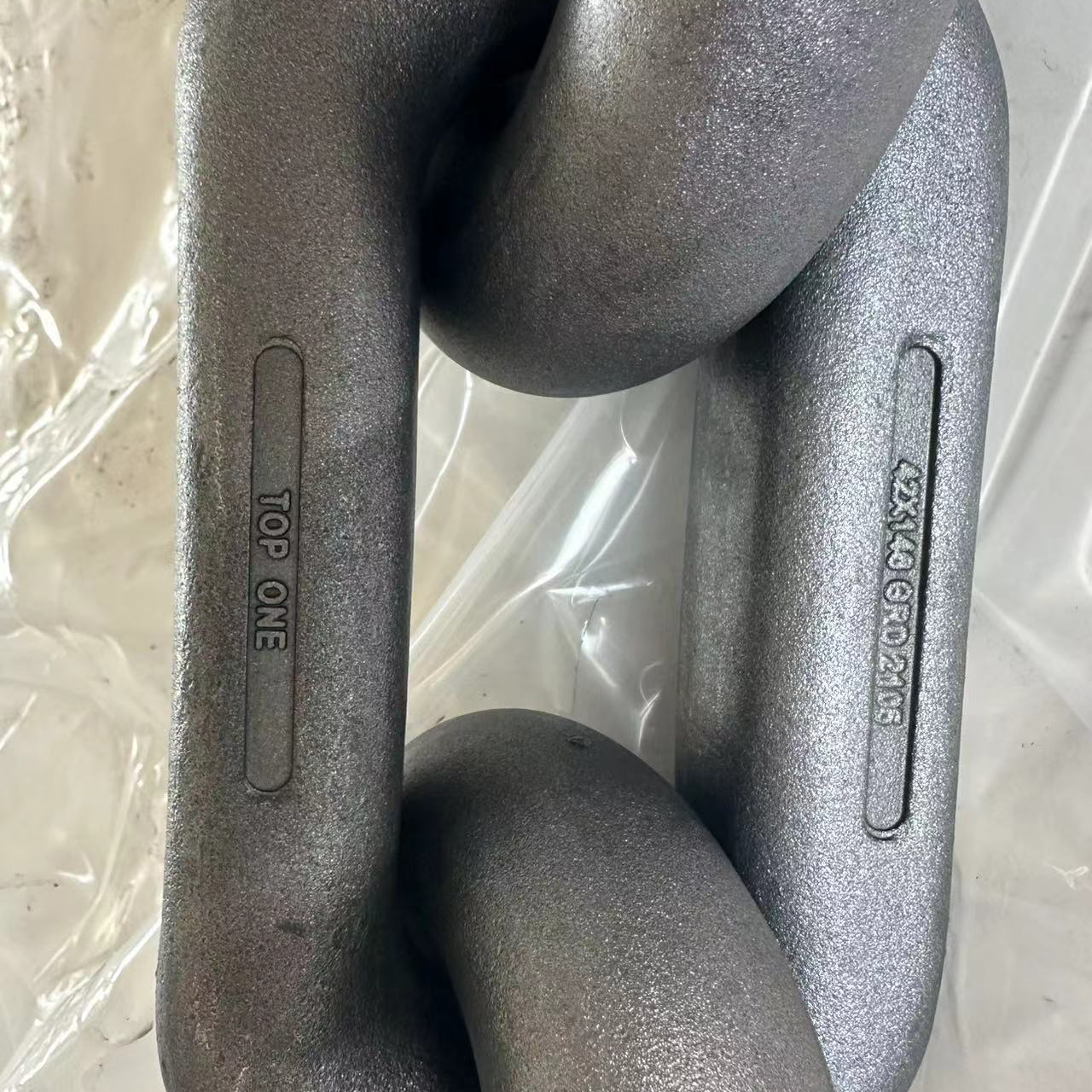

Read every stamp—grade on links (“8” or “10”), WLL on fittings, maker IDs, and batch/heat when available—and record them in the job file.

2) Where Chain Rigging Accessories Earn Their Keep

Fabrication bays: self-locking hooks stop shake-off while you tilt beams; shorteners reopen angles when headroom closes.
Precast yards: bow shackles handle multi-leg spreads; guards protect panel edges so crowns stay round.
Machinery moves: a two-leg sling with a leveler controls pitch; swivels prevent twist when you rotate a frame slowly.

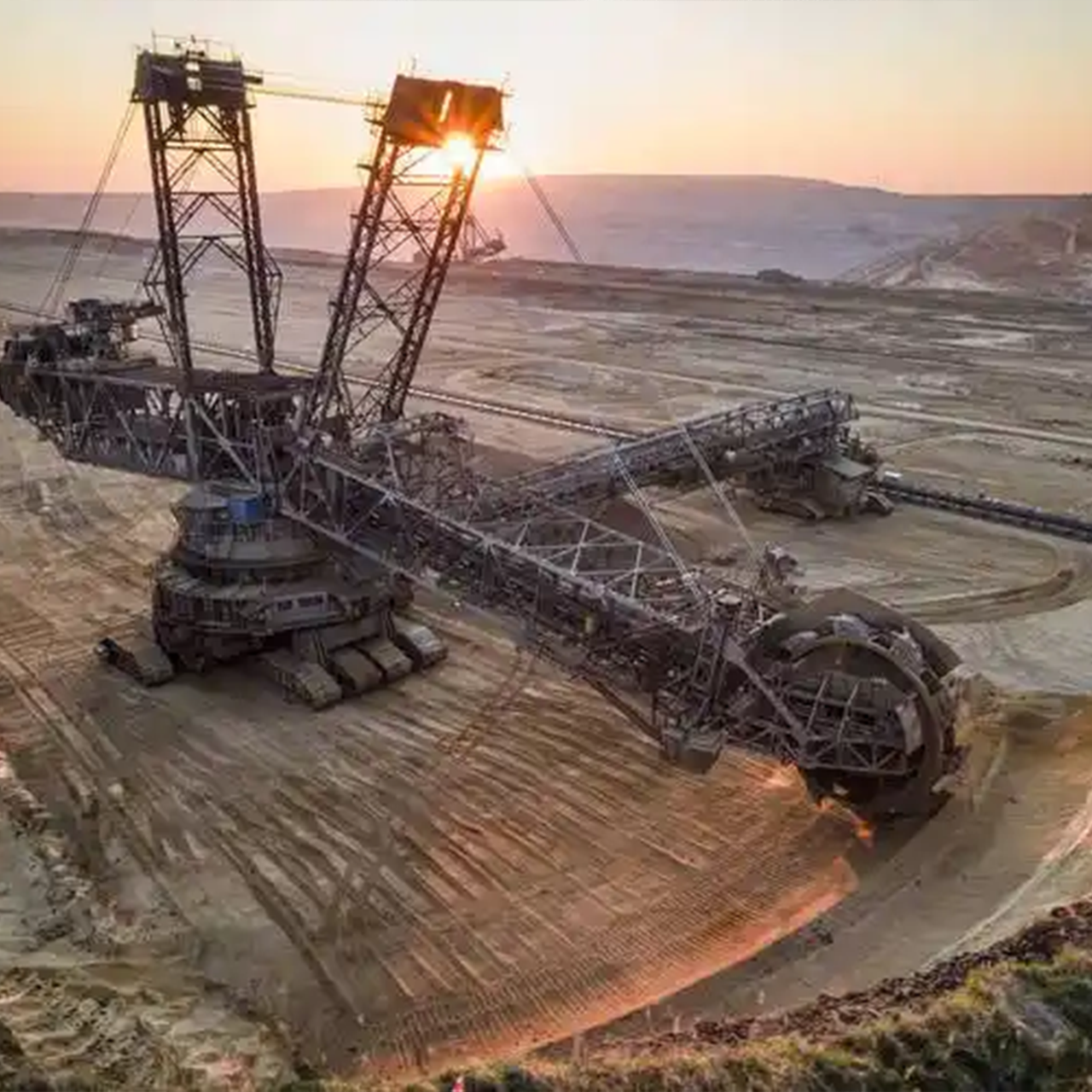

Mining and heavy equipment: wear sleeves shield contact points; bolt-type shackles hold in vibration.

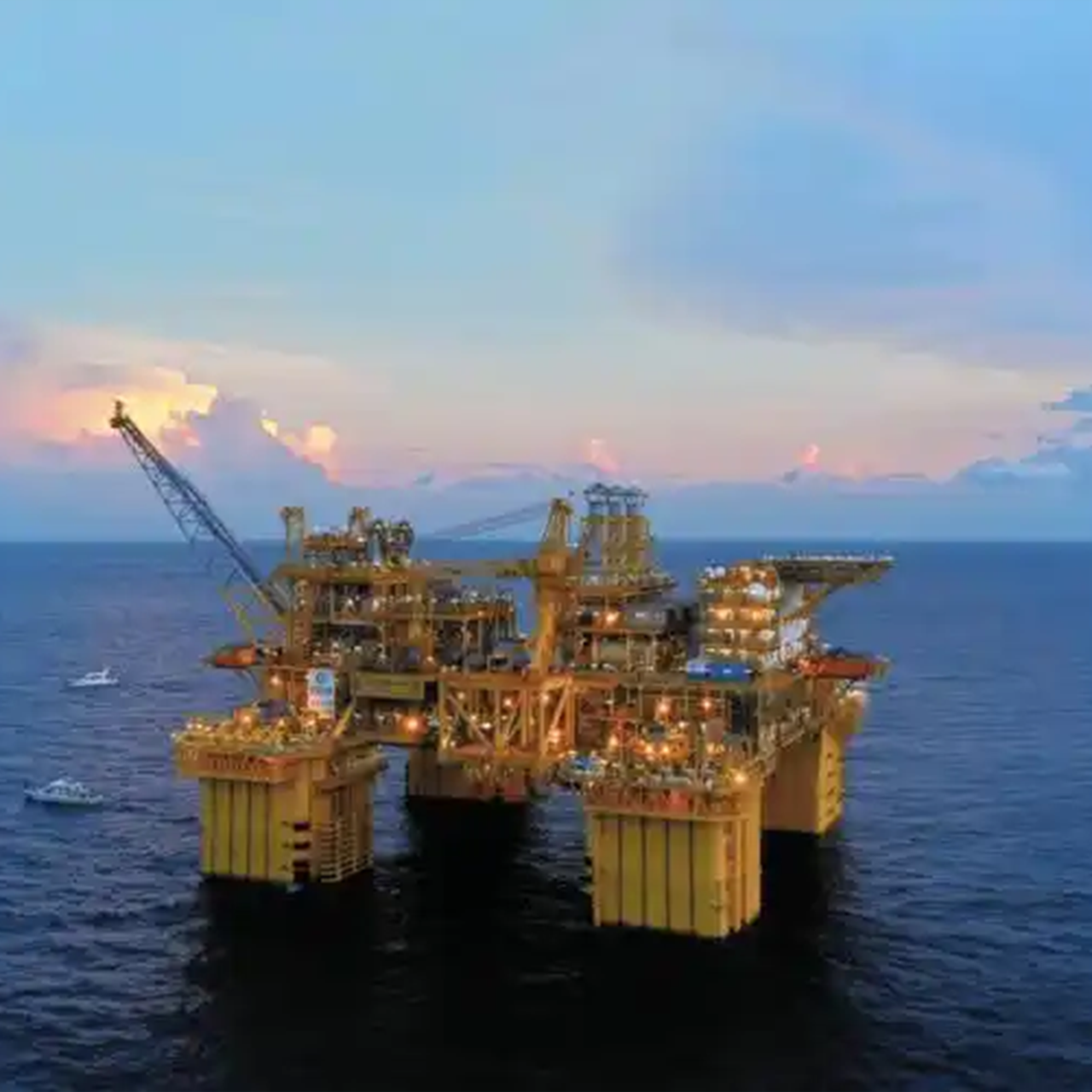

Marine and offshore: stainless or coated chains resist salt; swivels handle in-line rotation as the deck moves.

3) Use Standards and Stamps—Not Color or Habit

You verify the sling tag and the component markings before you rig. Look for:

ASME B30.9 / EN 818-4 on chain slings and ASME B30.26 / EN 13889 on shackles and many accessories.

WLL tables that match your hitch and angle.

Serial or batch numbers so you keep traceability.
Transport chain (G30/G43/G70) supports tie-down, not overhead lifting; keep it off the hook when you pick.

4) Angle Drives Tension—Measure, Then Choose

Angles change leg tension faster than anything else, so you measure, not guess. Hold 60° included angle whenever the site allows; add a spreader or use shorteners when geometry squeezes.

Two-leg quick check
Tension per leg = Load ÷ (2 × sin θ), where θ is the angle from vertical.

Three-/four-leg planning
Assume three legs carry while the fourth balances; size diameter and grade from the sling tag’s angle table.

Angle Factor Snapshot (apply to each active leg)

Tape this table in the cab so crews stop guessing.

5) Match Accessories to Jobs Without Overthinking

Always match accessory grade to chain grade; the lowest grade rules the assembly.

6) Build and Fit the Head Correctly

You seat the master link in the crane hook, close the latch, and check free swing. You keep master-link inside width ≥ 5× chain diameter so the latch clears. You keep hook throat ≥ 4× chain diameter so links feed cleanly. When legs may sweep, you use a bow shackle at the head and point the bow toward the legs so the pin works in pure shear.

7) Field Setup—A Repeatable Nine-Step Method

Lay out the sling and roll links until grade stamps face up; remove twists.

Inspect shorteners and connectors; look for cracks, burrs, or peening.

Seat the master link; confirm latch travel and hook alignment.

Attach hooks to rated padeyes or shackles; align eyes to the line of pull.

Snug the rig and measure the angle with a card or inclinometer.

Trim legs with shorteners until you hold the plan angle and level the load.

Lift 150 mm, pause, re-check balance, latches, and clearances.

Travel slowly; add corner guards where chain meets edges.

Land straight, release tension, and unhook in reverse order.

8) Inspection You Can Finish Before the First Pick

Keep it short and measurable; then log it.

Tag integrity: grade, WLL by hitch, angle table, serial, and maker ID must read cleanly.

Pitch growth: measure five consecutive links under light tension; retire legs that exceed the manufacturer’s elongation limit.

Crown wear: gauge diameter; retire legs that reach the published wear limit.

Hooks and latches: cycle ten times; verify throat opening; reject cracks at saddle or neck.

Shackles and pins: check thread condition and straightness; fit cotters on bolt-types.

Shorteners/adjusters: inspect pocket shape and seating faces; replace damaged bodies.

Traceability: photograph stamps and file certificates with the sling record.

9) Environment Drives Finish—Pick What Survives

Indoor shops: black-oxide or phosphate Grade 80 shows stamps clearly and cleans fast.

Coastal yards and splash zones: zinc–nickel coated alloy resists salt; rinse and oil after the job.

Washdown or chemical plants: stainless (304/316) chain and fittings resist pitting; match alloys to curb galvanic attack.

Hot work: follow the maker’s temperature curve and log exposure so the next inspection checks for discoloration and derating.

Accessory Matrix—Chain Rigging Equipment at a Glance

10) Troubleshooting—Fix It Before You Fly

One leg stays slack: trim length or add an equalizer; confirm padeyes sit in plane.
Chain jerks or jumps: angles closed too far or a sharp edge catches; reopen geometry and add guards.
Latch pops open: switch to self-locking hooks or replace a weak spring; re-seat the load in the hook bowl.
Shortener creeps: pocket wear or partial-link seating; replace the shortener and seat a full link only.

Conclusion

Read stamps, plan angles with numbers, match every accessory to the same grade, and log short inspections, and your chain rigging equipment with the right chain rigging accessories will move beams, panels, skids, and machines with clean control—contact TOPONE CHAIN today for certified chain slings, matched accessories, and full documentation for your next job.
