You handle lifts, tows, and tie-downs every week, so you need chain and shackles that match real loads, real angles, and real audits. This guide maps where chain and shackles deliver the most value, shows how to read stamps and tags, and explains what to request at a chain and rigging supplies ltd counter—proof loads, WLL tables, and batch traceability. You also get a fast angle primer, a selection checklist, and an inspection routine that crews can follow on any site.

Chain and Shackles: Roles You Rely On

You use chain for overhead lifting, for transport tie-down, and for tough environments that punish webbing. You pick G80 or G100 alloy chain for lifting because makers stamp grades on links and publish Working Load Limits (WLL) by hitch. You choose shackles to connect slings and hardware:

Bow (anchor) shackles give you room for multi-leg slings and angle changes.

D (chain) shackles keep straight, in-line pulls honest.
You read the crown for WLL, size, maker ID, and a trace code, and you match those stamps to the sling tag and data sheet.

What to Ask at a “Chain and Rigging Supplies Ltd” Counter

You buy faster when you carry a short list and you stick to it:

Ask for the standard reference on the tag (e.g., ASME B30.9 for chain slings, ASME B30.26 or EN 13889 for shackles, EN 818-4 for sling chain).

Request the WLL table by hitch and angle and the proof-test statement.

Record the serial or batch/heat number for traceability.

Check that hooks, shackles, and chain share the same grade family; the lowest grade rules the assembly.

Lay parts on the counter and read every stamp before you sign.

Where Chain and Shackles Earn Their Keep

Fabrication and steel erection
You land beams and tilt columns while grinders throw sparks. Alloy chain shrugs off heat better than webbing, and bow shackles let legs sweep as you dog a piece into place.

Machinery moves and MRO
You pull motors, swap reducers, and lift skids. A two-leg chain sling plus a load leveler handles pitch changes, and self-locking hooks hold during pauses.

Precast and yard handling
You steer panels and blocks around braces. Chain tolerates abrasion, and shackles give you clean, repeatable connections to inserts and rings.

Mining and heavy equipment
You pick frames and buckets and then load lowboys. Chain resists edge contact better than rope, and you protect crowns with guards at sharp corners.

Marine and offshore
Wind and swell keep loads lively. You run multi-leg chain with bow shackles at the head, hold angle near 60°, and rinse gear after splash to control corrosion.

Transport tie-down (non-lifting)

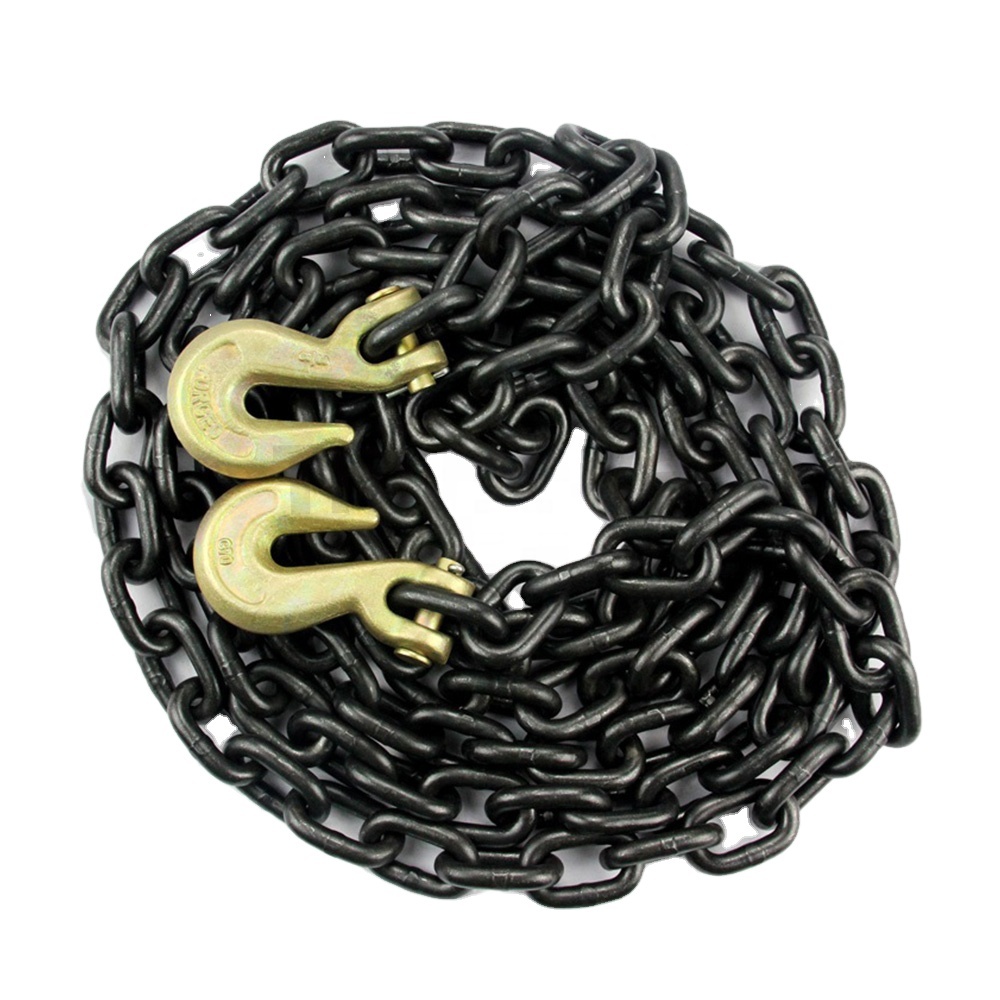

You secure machines with transport-rated chain and clevis-grab hooks. You keep lifting gear separate and you log both kits in different checklists.

Fast Angle Primer—Use Numbers, Not Hunches

Angle drives tension. You measure instead of guessing and you plan a 60° included angle whenever space allows.

Two-leg quick check: Tension per leg = Load ÷ (2 × sin θ), where θ = angle from vertical.

Three- or four-leg rigs: plan as if three legs carry while the fourth balances, then size legs from the tag’s angle table.

Angle Factor Snapshot (apply to each active leg)

Keep a card in the cab; you cut guesswork and you keep margin.

Shackle Types and Uses (Pick by Geometry)

Match shackle WLL to the highest leg tension, not to the total load.

Selection Checklist—Chain and Shackles

Grade and size: confirm G80/G100 for lifting; note link diameter and pitch on the tag.

Master link width: keep inside width ≥ 5× chain diameter so the crane latch clears.

Hook throat: keep opening ≥ 4× chain diameter so links seat without pinch.

Finish and environment: pick black-oxide/phosphate for shops, zinc-nickel for coastal yards, and 304/316 stainless for washdown or chemical zones.

Compatibility: keep hooks, shackles, and connectors in the same grade family; avoid mixing transport and lifting hardware.

Field Setup—Make a Clean Pick

Lay the sling flat and roll links until stamps face up. Seat the master link in the crane hook, close the latch, and confirm free swing. Engage hooks in rated padeyes or shackles, align eyes to the line of pull, and pull snug. Measure the angle with a card or an inclinometer; fit a spreader or shorteners to reopen angles when headroom squeezes. Lift 150 mm, pause, and re-check latches, balance, and clearances before you travel.

Inspection That Crews Actually Follow

You keep the routine short and measurable:

Tag check: read grade, WLL by hitch, angle table, serial, and maker ID.

Pitch growth: measure five consecutive links; retire legs that exceed the maker’s elongation limit.

Crown wear: gauge diameter; retire legs that cross the published wear limit.

Hooks and latches: cycle ten times; verify throat opening; reject cracks at the saddle or neck.

Shackles: check pin straightness, thread condition, and correct pin-to-eye fit; replace bent or scarred pins.

Traceability: snap photos of stamps and upload them with the proof-test sheet.

Document and Store—So Audits Move Fast

You file the purchase record, the sling tag photo, the WLL table, and the latest proof-test. You label racks, separate lifting gear from transport gear, and keep stainless away from carbon-steel racks to limit cross-contamination. You also log unusual exposures—heat, chemicals, salt—so the next inspector starts informed.

Quick Use Map—Chain and Shackles by Zone

Conclusion

Read stamps, match grades, measure angles, protect edges, and log every check, and your chain and shackles program will run clean across shops, yards, and decks—contact TOPONE CHAIN today for tested chain, marked shackles, and documentation that keeps your team moving.
