Crews face odd centers of gravity, tight headroom, and abrasive edges, so they need flexible choices that still meet clear rules. A chain rope sling handles soft surfaces and tight turns, while chain rigging equipment—master links, Grade 80/100 chain legs, latching hooks, shackles, shorteners, and swivels—thrives around heat, shock, and rough steel. This guide maps where each option shines, shows how to read tags and markings, and lays out angle control you can apply at the hook. Use it to brief teams, align purchases with standards, and move jobs faster without guesswork.

Chain Rope Sling: Where It Solves Problems

You choose a chain rope sling when the load needs a soft touch yet the head of the rig must stay tough. Typical builds attach a synthetic rope or wire-rope body to a chain head so you clip standard fittings, shorten legs, and hold angles while you reduce surface damage at the contact point. You land finished panels, painted housings, or delicate stainless tanks and you still steer around tight corners because the rope bends smoothly.

Why crews like it: rope conforms to surfaces, spreads pressure, and routes easily through cramped spaces; the chain head accepts common accessories and handles sparks better than pure rope hardware.

What to check: read the sling tag for Working Load Limits (WLL) by hitch, confirm the angle table, and match fittings to the tag. You protect corners with guards and you keep rope away from hot edges and sharp radii.

Where it fits: architectural installs, clean manufacturing, light equipment sets, and any pick that rewards a softer footprint with precise balance.

Chain Rigging Equipment: Build a Tough, Modular System

When heat, abrasion, or impact dominate the site, chain rigging equipment carries the job. You build the path from hook to load with one rating language and you keep every stamp visible.

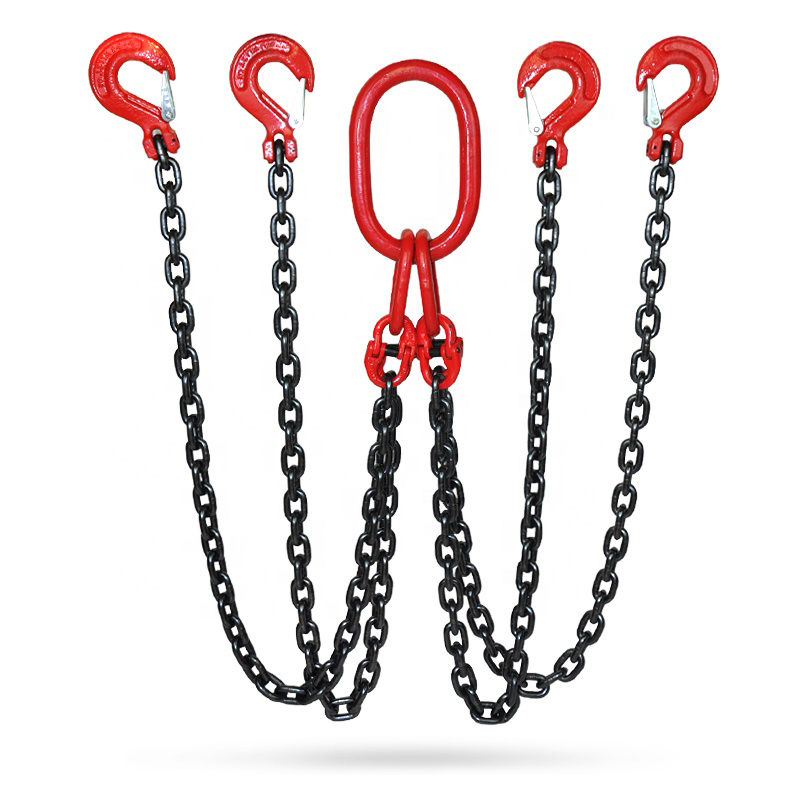

Chain slings (G80/G100): links carry grade marks (“8” or “10”); tags list WLL by hitch and angle under standards such as ASME B30.9 or EN 818-4.

Master links: size them so the crane latch clears and the head accepts the planned leg count.

Hooks: use self-locking hooks for long travel, wind, or vibration; use spring-latch hooks for short protected moves.

Shorteners/adjusters: seat a full link in a rated pocket; trim leg length to reopen angles without re-rigging.

Shackles: bow shackles tolerate sweep on multi-leg heads; run the pin through the hardware and face the bow toward legs.

Swivels: allow in-line rotation when loads want to spin; keep the force in line and avoid side load.

You read every stamp—grade, WLL, size, maker ID, and any trace code—and you log them in the job file with photos.

Pick by Environment, Not Habit

Loads and sites change; your sling choice should follow.

Hot, abrasive, or spark-heavy work: choose chain slings and matching accessories; add wear sleeves on corners and keep included angle near 60°.

Delicate finishes or tight routing: bring a chain rope sling for the final leg or for all legs when surfaces matter; still measure angles and protect the contact line.

Coastal or washdown jobs: consider stainless chain and fittings (304/316) or coated alloy; dry and lube hardware after salt or chemicals.

Short headroom: trim legs with shorteners or insert a spreader so you hold angle and keep tension predictable.

Angle Drives Tension—Measure, Then Lift

Angles change leg tension faster than any other factor, so you measure rather than guess. Plan for a 60° included angle whenever space allows; reopen tight angles with a spreader or shorten long legs evenly.

Two-leg quick check:
Tension per leg = Load ÷ (2 × sin θ), where θ = angle from vertical.

For three- or four-leg assemblies, assume three legs carry while the fourth balances, then choose chain diameter and hook size from the tag’s table.

Application Matrix—Chain Rope Sling vs Chain Rigging Equipment

Always confirm WLL and angle limits on the sling tag and component stamps.

Build and Fit the Head Correctly

Seat the master link in the crane hook, close the latch, and check free swing. Keep master-link inside width ≥ 5× chain diameter so the latch clears, and keep hook throat ≥ 4× chain diameter so links feed cleanly. When legs may sweep, choose bow shackles; set the pin through the hardware and face the bow toward legs so the pin works in pure shear.

Field Setup—One Repeatable Sequence

Lay the sling flat; roll links until grade stamps face up and legs lie untwisted.

Inspect shorteners and connectors; remove burrs and replace cracked or peened parts.

Protect edges with guards; route rope segments away from hot or sharp contact.

Seat the master link; verify latch travel and hook alignment.

Engage hooks in rated padeyes or shackles; seat hooks in the bowl, not on the tip.

Snug the rig and measure the angle with a card or an inclinometer.

Trim legs or add a spreader until you hit the plan angle and balance.

Lift 150 mm, pause, re-check latches, balance, and clearances, then travel.

Land straight, release tension, and unhook in reverse order.

Inspection—Use Numbers, Not Hunches

Keep checks short and measurable; then log them.

Tag and traceability: read grade, WLL by hitch, angle table, serial, and maker ID.

Pitch growth (chain legs): measure five consecutive links; retire legs that exceed the manufacturer’s elongation limit.

Crown wear (chain): gauge diameter; retire legs that cross the published wear limit.

Rope body (if present): check for cuts, glazing, flat spots, and UV damage; follow the maker’s discard criteria.

Hooks and latches: cycle ten times; verify throat opening; reject cracks at the saddle or neck.

Shackles and pins: check thread condition and straightness; fit cotters on bolt-types.

Swivels and shorteners: rotate and seat under light load; confirm smooth motion and full-link seating.

Store proof-test certificates and inspection sheets with the sling record; add photos of stamps so audits move quickly.

Finish and Care—Extend Service Life

Rinse hardware after salt exposure, then dry and oil lightly at pivots. Keep stainless away from carbon-steel racks to reduce cross-contamination. Clean rope segments per the maker’s guidance and avoid solvents that attack fibers. Log heat exposure around hot work and check for discoloration or stiffness at the next inspection.

Quick Reference—At the Hook

Conclusion

Choose a chain rope sling when the load needs a soft footprint, reach for chain rigging equipment when heat, edges, and shock dominate, and control angles with tools so every pick stays inside the tag—contact TOPONE CHAIN today for certified chain slings, hybrid chain-rope solutions, and full documentation for your next job.
