Crews move faster when one method covers selection, setup, and inspection. This playbook treats lifting chains and accessories as a single, traceable system. You will map the job, pick materials for the site, match hooks and shackles by function, set geometry with numbers, and lock documentation that auditors accept. Use these steps in shops, yards, and ports, and you will cut resets while safety margins stay obvious.

1) Define the kit as a system, not pieces

You start with a rating path from hook to load and keep it consistent end-to-end.

Chain: read grade and size on the links; common marks show “8” (G80) or “10” (G100).

Master link: confirm leg count and chain diameter on the sub-assembly tag.

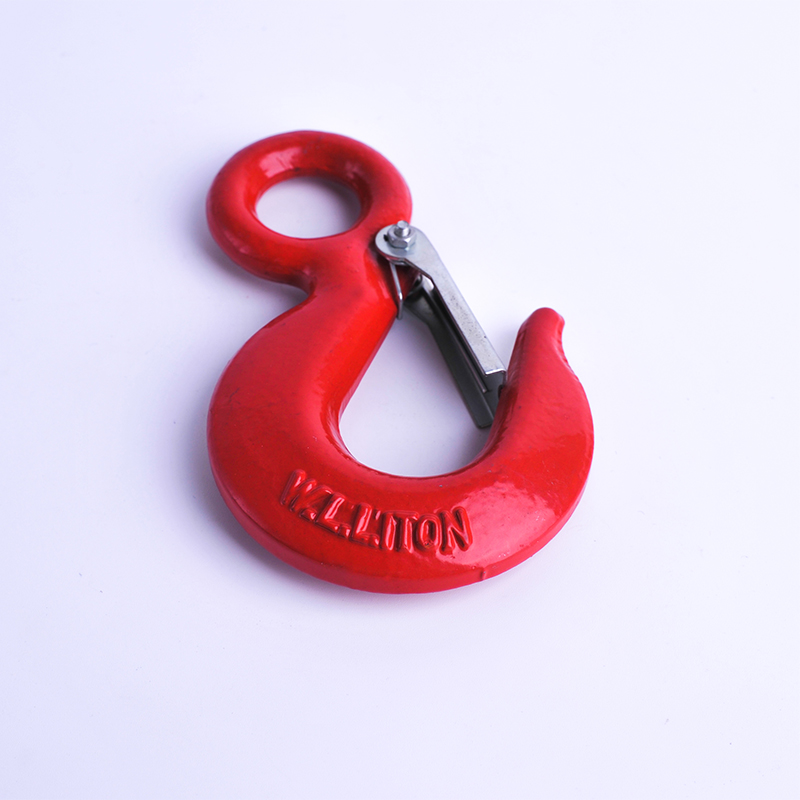

Hooks: read Working Load Limit (WLL) on the body; choose the style for the route.

Shackles: read WLL on body and pin; match both to the leg with the highest tension.

Tag: check WLL by hitch and angle, plus serial or batch ID. The smallest WLL in the path rules capacity.

2) Choose materials by environment first

Pick steel for the site, then size from the tag.

G80 alloy handles abrasion and sparks in fabrication bays and yards.

G100 alloy delivers higher WLL for the same diameter, useful when headroom squeezes angles.

Stainless (304/316) resists pitting in splash and washdown; pair stainless hardware to reduce galvanic pairs.

Zinc–nickel coated alloy sheds salt on coastal work; rinse and oil pivots at day’s end.

3) Match accessories to motion and control

Different jobs need different controls. Choose by function, not by habit.

Accessory roles for lifting chains and accessories

4) Set geometry with numbers, not guesses

Angles drive tension, so you measure and adjust before the lift.

Target an included angle ≈ 60° between adjacent legs when space allows.

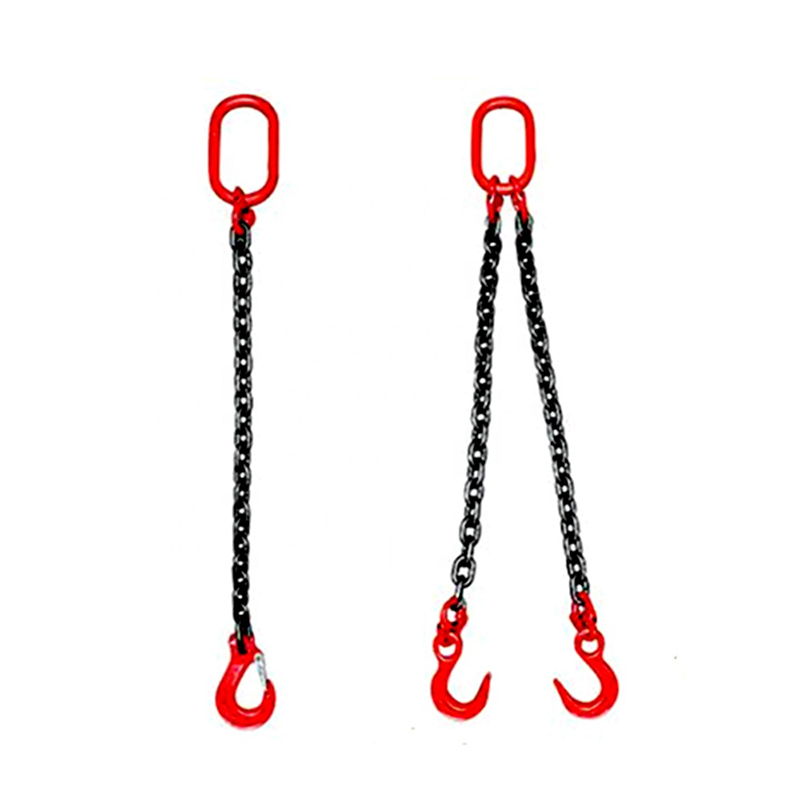

For a two-leg plan, compute per-leg tension:
Tleg=Load2×sin⁡θT_{ ext{leg}} = rac{ ext{Load}}{2 imes sin heta}
where θ is the angle from vertical.

For three- or four-leg plans, size conservatively as if three legs carry while the fourth stabilizes, then fine-tune with shorteners.

Quick angle guide (per active leg)

Tape this guide to the hook block or spreader.

5) Build a repeatable setup flow

Crews finish more checks when the list stays short and visual.

1. Stage the rig with stamps up; clear twists and dirt.

2. Read the sling tag and every WLL mark; align grades across parts.

3. Seat the master link so the crane latch closes freely.

4. Connect at the load; align eyes to the line of pull; seat hooks in the bowl.

5. Add corner guards wherever links touch radii or edges.

6. Snug, then measure angles with a card or inclinometer; trim until the plan reads true.

7. Raise the load ~100 mm; pause; re-check angles, latch closure, and pin security; only then travel.

6) Inspection you actually finish

Keep criteria numeric; log photos so audits move quickly.

Tag & traceability: grade, size, WLL by hitch/angle, serial/batch, maker ID.

Elongation: measure five consecutive links under light tension; retire legs at the maker’s limit.

Crown wear: gauge link diameter; compare to the published wear limit.

Hooks: verify throat opening; cycle latches ten times; scan saddle and neck for cracks.

Shorteners: inspect pocket faces and walls; seat one full link; remove burrs.

Shackles: check pin straightness and threads; use bolt-type pins for vibration and fit cotters.

Swivels: confirm smooth axial rotation and clean bearings; replace units with side-load scars.

Lifecycle table—service rhythm for lifting chains and accessories

7) Storage and labeling that prevent mix-ups

You stage chain slings and accessories by grade and size on labeled racks. You keep stainless separate from carbon-steel hardware to reduce cross-contamination. You bag spare cotters, latch kits, and shackle pins with the same grade family, then you print QR tags that link the serial to the proof sheet and the latest inspection.

8) Avoid the classic traps

Reading paint instead of stamps. Color helps housekeeping; stamps and tags set capacity.

Half-link capture in a grab. Reseat a full link centered in the pocket.

Tip-loading hooks. Place the load deep in the bowl and keep lines in plane.

Guessing at weight or angle. Pull drawings or a scale read, then measure θ with a card.

Mixing grades. The smallest WLL in the path rules; keep one rating language.

9) Put it together on real jobs

Skids with uneven padeyes: head-mounted shorteners reopen angles; bow shackles at the head tolerate sweep.

Precast panels: spreaders open geometry; self-locking hooks stop chatter during slow lowers.

Marine lifts: zinc–nickel coatings clean fast; bolt-type shackles hold under vibration; rinse and re-oil after docking.

Cleanroom modules: stainless chain and fittings resist washdown; guards protect painted edges without fibers.

10) One-page record that calms audits

Your file shows: a photo of the sling tag, photos of all WLL stamps, link diameter and five-link pitch values, the angle plan, and the quick lift note that confirms the 100-mm trial raise and the re-check. You attach the proof sheet that matches the serial and you keep the inspection cadence on the same page.

Conclusion

Treat lifting chains and accessories as a single rated path, pick materials for the site, measure angles with tools, protect every edge, and keep photo-rich records; that discipline turns rough work into controlled, repeatable lifts. Contact us for more information.
