Procurement moves quickly, yet lifts demand evidence. You need a chain sling supplier that proves steel pedigree, shows clean Working Load Limit (WLL) marks, and delivers test data that auditors accept without debate. This guide gives you a repeatable method: check standards and traceability first, confirm factory tests and accessories next, and then run a short receiving inspection that catches the usual traps. Follow these steps and you will qualify vendors with confidence and keep jobs moving while records stay tight.

Start with standards, not slogans

A credible chain sling supplier anchors every claim to recognized rules. You read the sling tag and you look for:

The governing standard for slings (ASME B30.9 or EN 818-4) and for fittings (ASME B30.26 or EN 13889).

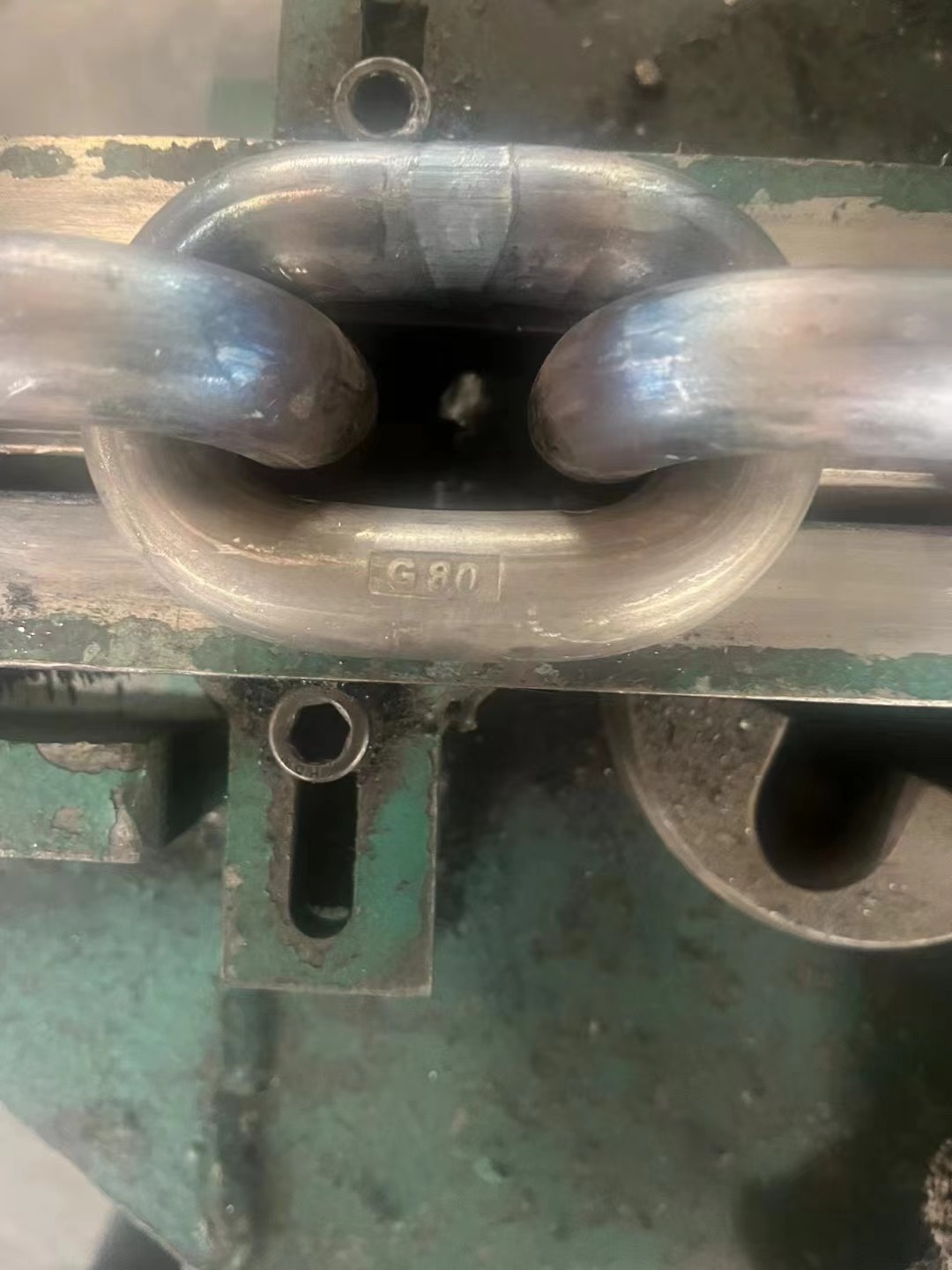

Grade and size on the links (e.g., “8” for G80 or “10” for G100) and WLL on every hook, shackle, master link, and shortener.

A serial or batch ID you can trace back to mill certificates and proof tests.
You also confirm that the supplier runs a quality system (e.g., ISO 9001) and that documents match the physical stamps; numbers must agree, or the conversation ends.

Traceability you can audit in minutes

You build the chain-of-custody from melt to hook. Ask the supplier to show:

Mill Test Reports (MTRs) that identify heat numbers for bar or rod.

Process sheets for welding, heat treatment, and finishing that link to batches.

Proof-test certificates tied to the sling’s serial; photos of the tag and stamps help.

Inspection records that log dimensional checks, elongation limits, hardness checks, and visual acceptance criteria.
You keep scans with the purchase order, then you label storage racks so serialized slings never lose their paperwork.

Factory tests that actually reduce risk

Good suppliers test slings and components to the published standard, but great suppliers show the raw data. You request:

Proof load results per leg and per assembly, recorded with the test machine ID and the date.

Break test summaries on sample links or chain lengths to verify minimum breaking force targets.

Dimensional and pitch checks across several links so wear limits start from real numbers.

Latch cycling and throat-opening measurements on hooks, noted against the maker’s limits.

NDT where relevant (magnetic particle or dye penetrant) on welded areas or suspect lots.
When you review data, you match serials and batch IDs first, then you file one concise summary page for quick audits.

Supplier Checklist—Evidence You Should See

Materials and finishes—pick for the site, then size from the tag

You select material for the environment and only then choose diameter from the WLL table on the tag.

G80 alloy steel (typical quenched-and-tempered round-link) handles abrasion, sparks, and daily rigging in shops and yards.

G100 alloy steel gives higher WLL for the same diameter, so you solve tight angles without jumping sizes.

Stainless (304/316) resists pitting in washdown and splash zones; you match stainless hooks and shackles to curb galvanic attack.

Zinc–nickel or similar coatings shed salt faster in coastal work; you still rinse gear and oil pivots at day’s end.

A solid chain sling supplier lists these options clearly and explains where each survives best.

Accessories that turn ratings into control

Capacity means little if hardware fights you. You ask the supplier to kit slings with accessories that keep geometry honest:

Self-locking hooks for long travel, wind, or vibration; the latch locks under load and stays shut.

Shortening clutches / grab hooks at the head so crews trim opposite legs quickly and reopen angles.

Bow shackles where legs may sweep; you run the pin through the hardware and face the bow toward the legs.

Master link sub-assemblies sized to leg count and chain diameter so the crane latch clears every time.
You keep all parts in the same grade family and you treat the smallest WLL as the system limit.

Receiving inspection—12 minutes that save a shift

You finish one short routine before the first pick and you log it with photos:

1. Lay the sling flat; roll links until stamps face up; clear twists.

2. Read the tag: standard, grade, size, WLL by hitch and angle, serial or batch.

3. Read WLL marks on hooks, shackles, master link, and shorteners; confirm no weak link.

4. Measure link diameter and five-link pitch under light tension; record baselines.

5. Cycle latches ten times; check throat opening against the maker’s limit.

6. Inspect pockets and sidewalls on shorteners; seat one full link; remove burrs.

7. Check shackle pins (straightness, threads); fit cotters on bolt-types.

8. Guard any sharp radii on the planned route; stage corner protection.

9. Photograph stamps, the tag, and the layout; file images with the order.

Vendor red flags—and how you course-correct

Color over content. Paint never proves grade; you read steel stamps and the tag.

Missing serials. No traceability, no lift; you quarantine the lot and request documents.

Inconsistent WLL marks. The smallest number rules; you either replace parts or you relabel the assembly.

Vague test sheets. You ask for machine ID, date, leg count, and load level; you file the corrected certificate.

Poor fit at the head. You swap to the correct master link sub-assembly so the crane latch clears and the head swings freely.

Service and re-inspection cadence that works

You wipe stamps clean after use, you rinse coated alloy after salt, and you oil pivots lightly. You separate stainless from carbon-steel storage to limit contamination. You track hours, environment, and incidents in the sling record, and you schedule periodic inspections that mirror your receiving checklist so trends show early. When elongation or crown wear hits the maker’s limit, you retire the leg and you log the decision.

Conclusion

Read standards first, demand traceable steel and real test data, match accessories to geometry, and run a short receiving inspection, and your chain sling supplier will support safe, predictable lifts every shift—contact TOPONE CHAIN today for certified chain slings, matched hardware, and full documentation for your next project.
