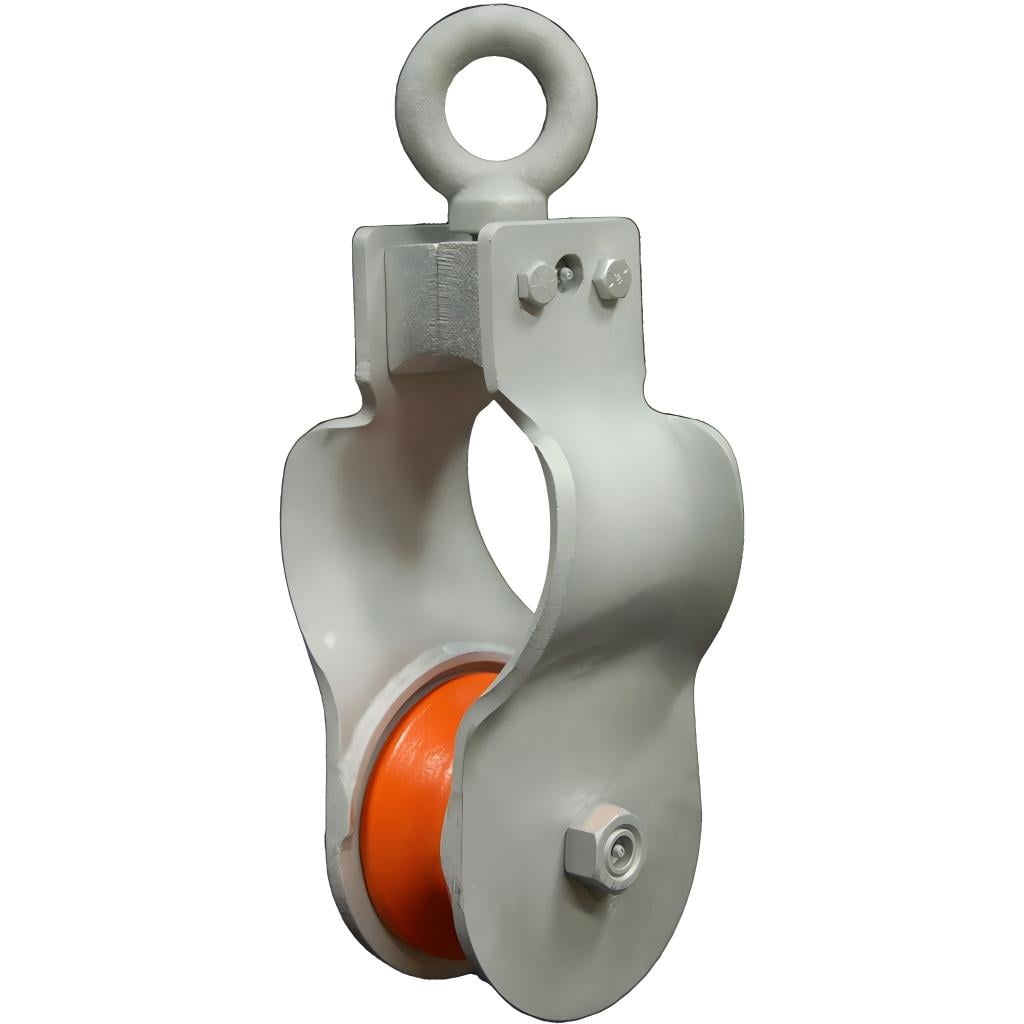

TOPONE Try Net Block is a marine pulley block designed for oceanographic research, experimental fishing and offshore rope-handling applications. Featuring forged steel construction, a swivel eye connection, an extra-wide throat opening and a hot-dip galvanized finish, it provides a practical solution for demanding marine environments. Available in 6-inch and 8-inch reference sizes with Safe Working Loads (SWL) of 5 and 10 tons, respectively, the block accommodates compatible steel wire ropes and marine rigging arrangements.
TOPONE Try Net Block features a forged steel structure, hot-dip galvanized finish and swivel eye connection for marine rope-handling applications. Its wide throat opening provides clearance for compatible connecting fittings, while the pressure lubrication fitting supports smooth sheave operation and routine maintenance.
Available in 6-inch and 8-inch sizes, these blocks are suitable for marine research, experimental fishing, offshore equipment handling and related rigging systems. TOPONE accepts inquiries for customized dimensions, connection fittings and surface treatments.
Explore our Fishing and Aquaculture Products, Tail Board Snatch Block, and Rigging Block for related marine and rope-handling equipment.
Contact TOPONE with your required SWL, wire rope diameter, connection dimensions and order quantity to request a quotation.
Size (inch) | Reference SWL (ton) | Wire Rope Diameter (mm) |
6 | 5 | 26 |
8 | 10 | 36 |
Item | Reference Specification |
Product Name | Try Net Block |
Product Type | Marine Wire Rope Pulley Block |
Main Material | Forged Steel |
Surface Treatment | Hot-Dip Galvanized |
Top Connection | Swivel Eye |
Structural Feature | Wide Throat Opening |
Lubrication | Pressure Lubrication Fitting |
Nominal Sizes | 6 / 8 inches |
Reference SWL | 5 / 10 ton |
Compatible Rope | Steel Wire Rope |
Reference Rope Diameter | 26 / 36 mm |
Applications | Marine Research, Experimental Fishing, Offshore Rigging |
Customization | Dimensions, Connection Fittings, Surface Finish |
Technical Notes:
The above values are reference specifications and must be confirmed against TOPONE's final product drawing.
SWL means Safe Working Load.
The exact meaning of the reference “ton” unit must be confirmed before final product labeling.
Rope diameter must match the approved sheave groove and operating requirements.
The swivel eye is designed to permit rotation within its approved operating conditions; side loading and unrestricted rotation under load must not be assumed permissible.
The wide throat opening refers to fitting clearance and does not mean that an anchor chain can automatically be routed through the sheave.
Final product ratings, material specifications and customization options require technical confirmation.
Name: Try Net Block
MOQ: To Be Confirmed
Package: Carton + Steel Pallet
Manufacturing Standards:
Manufactured according to approved product drawings, material specifications and dimensional requirements. The forged steel components, swivel eye, sheave, axle and connecting fittings must meet the confirmed product design.
Hot-dip galvanized components may be evaluated according to ISO 1461 where applicable to the materials and finishing process. Any specific standard compliance claim must be supported by product documentation.
Testing Standards:
Inspection and verification may include:
Visual and dimensional inspection
Material verification
Sheave and rope groove measurement
Swivel eye inspection
Throat opening and fitting clearance checks
Sheave rotation and lubrication checks
Galvanized surface inspection
Working load and proof-load verification according to approved requirements
Load testing and certification must follow the applicable product specification. Test reports shall only be declared when supported by actual records.
Application Standards:
Select the Try Net Block according to its verified SWL, rope diameter, attachment dimensions and marine operating conditions.
The block, wire rope, connecting fittings and supporting structure must be suitable for the forces produced by the complete rigging arrangement.
Avoid overload, shock loading, unintended side loading and incompatible connection fittings. The equipment must not be used for personnel lifting unless specifically designed and approved for that purpose.
Maintenance Standards:
Inspect the block frame, sheave, axle, swivel eye and retaining components before operation. Check for cracks, deformation, excessive wear, corrosion and restricted sheave movement.
Lubricate moving components according to the approved maintenance instructions. Clean salt deposits and marine contaminants using suitable procedures, and inspect the protective finish regularly.
Remove damaged equipment from service until it has been evaluated and approved for continued use.
