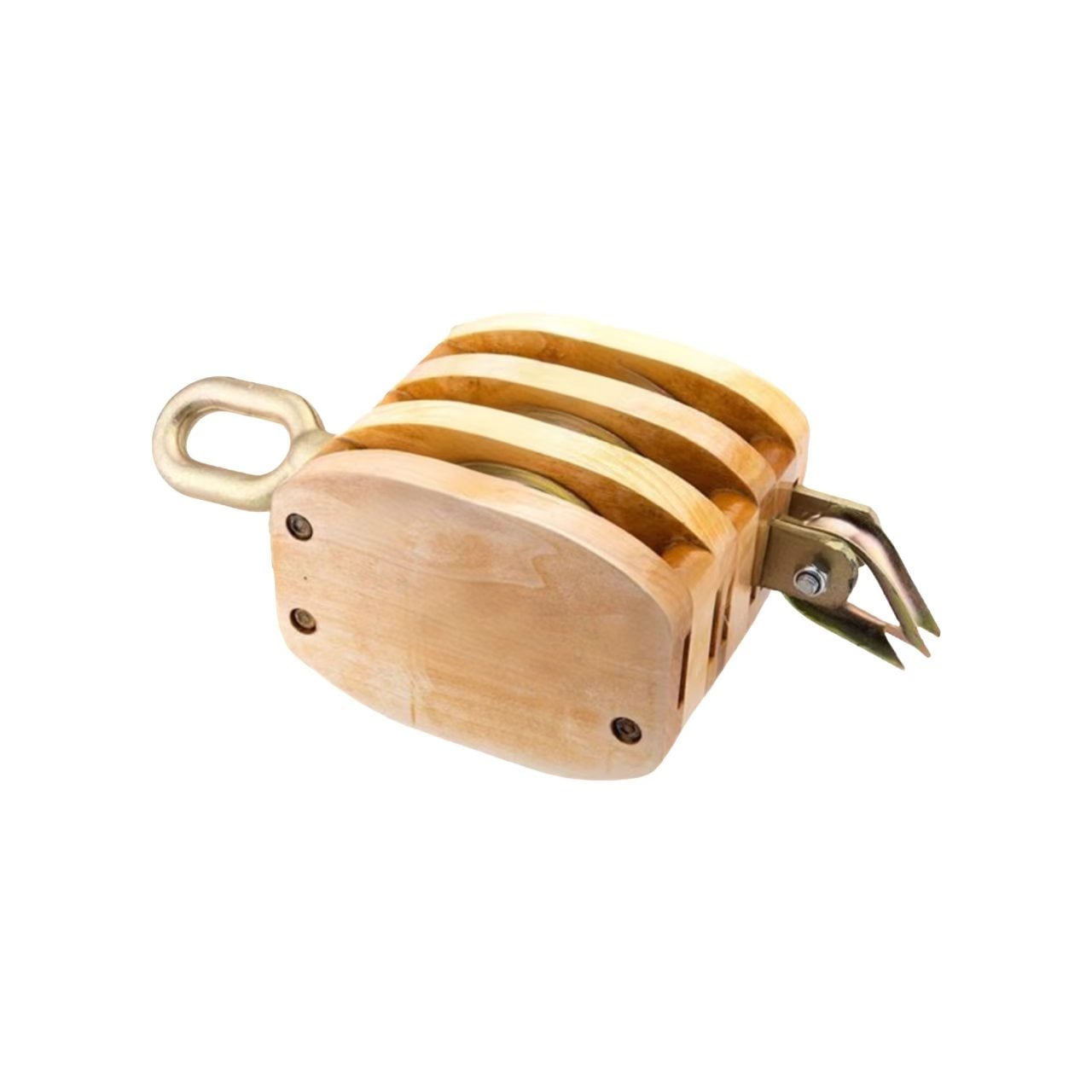

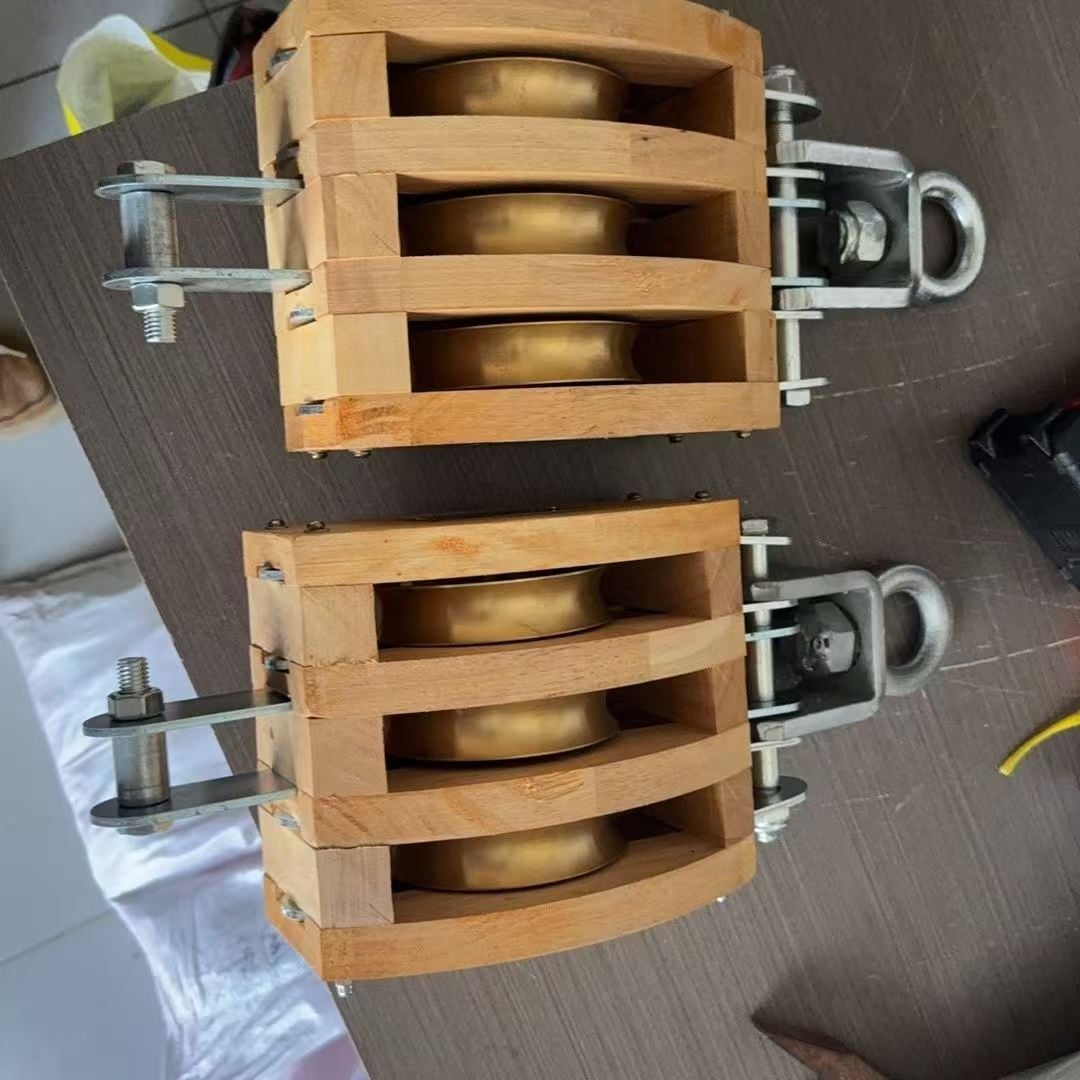

TOPONE Triple Wooden Shell Blocks guide rope through three sheaves in a wooden housing. The pictured eye-type models are available in 200 mm and 220 mm sizes, with listed safe working loads of 660 kg and 1,100 kg respectively. Swivel Hook, Fixed Hook, Anchor Shackle and Swivel Eye connections can be specified as options.
· Three-sheave design: Three sheaves provide separate rope paths for a suitable multi-part reeving arrangement. The pulling force depends on the complete reeving setup, rope friction and load direction.
· Wooden shell and fittings: The wooden housing supports the sheave assembly. Specify the required wood finish, metal fittings and bushing arrangement against the approved product drawing. The reference product family describes hardwood shells and forged fittings.
· Optional top fittings: Swivel Hook, Fixed Hook, Anchor Shackle or Swivel Eye, etc. The product shown in the parameter table is the eye-type reference configuration. State the required fitting when ordering.
· Rope and applications: The pictured models list rope diameter ranges of 20–22 mm and 22–24 mm. They may be specified for compatible fiber-rope lifting and pulling arrangements in workshops, construction and general material handling.
· Customization: TOPONE accepts requests for connection style, shell size, rope groove, finish and project-specific drawings. The final rated load, dimensions and weight must be confirmed for the selected configuration.
· Precautions: Check the wooden shell for cracks and the fittings for deformation or looseness before use. Confirm that all three sheaves rotate freely, the rope fits the grooves and the complete rigging arrangement stays within its rated load. Store the block in a clean, dry place.
TOPONE can review the intended rope, load and connection requirements before confirming a production specification. Its wider manufacturing facility covers more than 15,000 m², including over 5,000 m² of manufacturing warehouse space. www.toponechain.com
Explore other configurations in the Block range, or view compatible Shackles and Hooks.
Nominal Size (mm) | Wooden Shell Height (mm) | Compatible Rope Diameter (mm) | Safe Working Load (kg) | Unit Weight (kg) |
200 | 200 | 20–22 | 660 | 4.5 |
220 | 220 | 22–24 | 1,100 | 5.5 |
The table applies to the pictured eye-type models. Confirm the fitting type, SWL and weight against TOPONE’s final drawing and test records. Other top-fitting options require their own confirmed ratings.
Name: Triple Wooden Shell Blocks
MOQ: 1 piece
Package: Carton + Steel Pallet
Manufacturing Standards: Manufacture to the approved drawing, including wooden shell dimensions, sheave arrangement, rope grooves, axle, bushings and selected top fitting.
Testing Standards: Inspect dimensions, fitting security and rotation of all three sheaves. Verify the rated load according to the agreed test plan for the final configuration.
Application Standards: Match rope type and diameter to the verified sheaves. Select the block, top fitting, anchor point and reeving arrangement as one rated system.
Maintenance Standards: Inspect the wood for cracks or splitting and the metal parts for wear, corrosion or deformation. Clean and lubricate moving parts as instructed; keep the block dry during storage.
