The TOPONE Single Pulley Snatch Block with Eye redirects wire rope in lifting and pulling systems. Its opening side allows rope installation without feeding the full rope length through the block. Five reference sizes are available, with nominal sheave sizes from 3 to 8 inches.

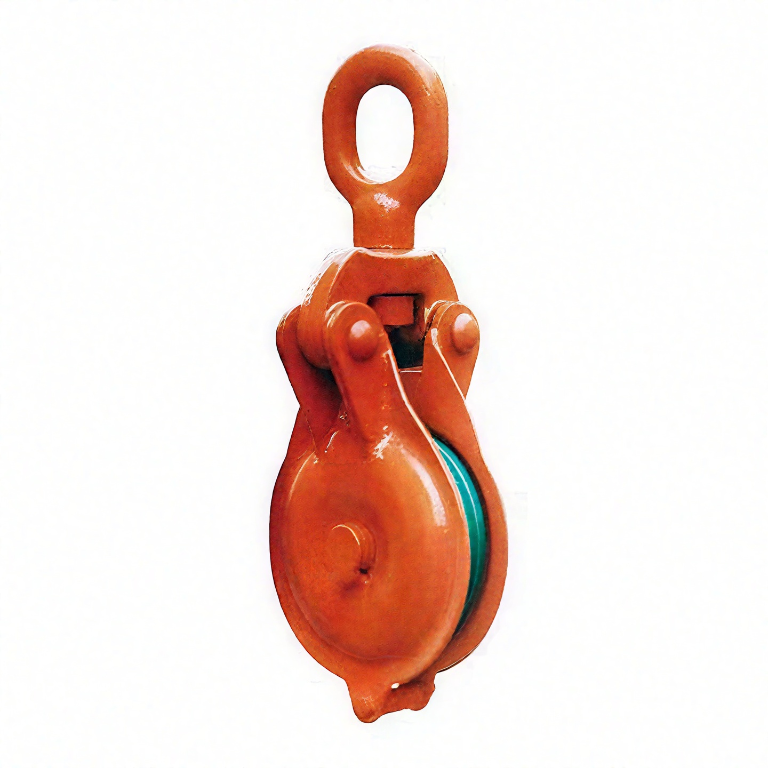

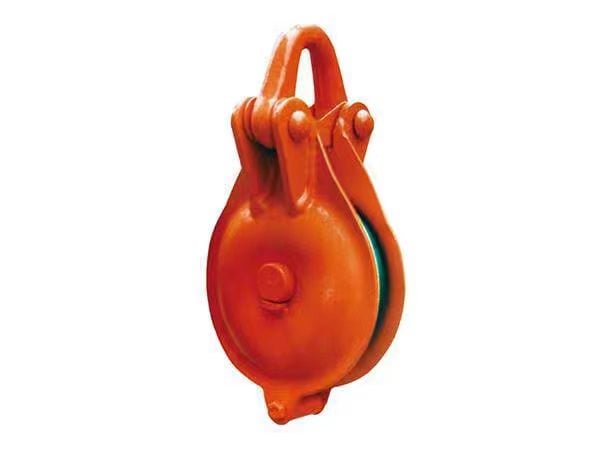

The Single Pulley Snatch Block with Eye combines one grooved sheave, an eye connection and an opening side. During setup, the side can be opened to place the wire rope on the sheave. The eye connects to a suitable, rated fitting at the anchor point.
· Size and load rating: Five reference sizes are listed below, with published safe working loads from 0.5 to 4 ton. Select a block using the forces acting on the block in the complete rope arrangement.
· Rope compatibility: The listed rope diameters range from 6 to 16 mm. Confirm the rope construction and groove compatibility for the selected size.
· Applications: Suitable configurations can be used for rope direction changes in lifting, drilling, mining and general industrial pulling systems.
· Finish and customization: TOPONE accepts requests for block size, connection details, rope compatibility and surface finish. Final specifications depend on the approved product drawing.
For a different top connection, see the Snatch Block with Swivel Hook. The Half Side Block provides another single-sheave option for applications requiring accessible rope installation.

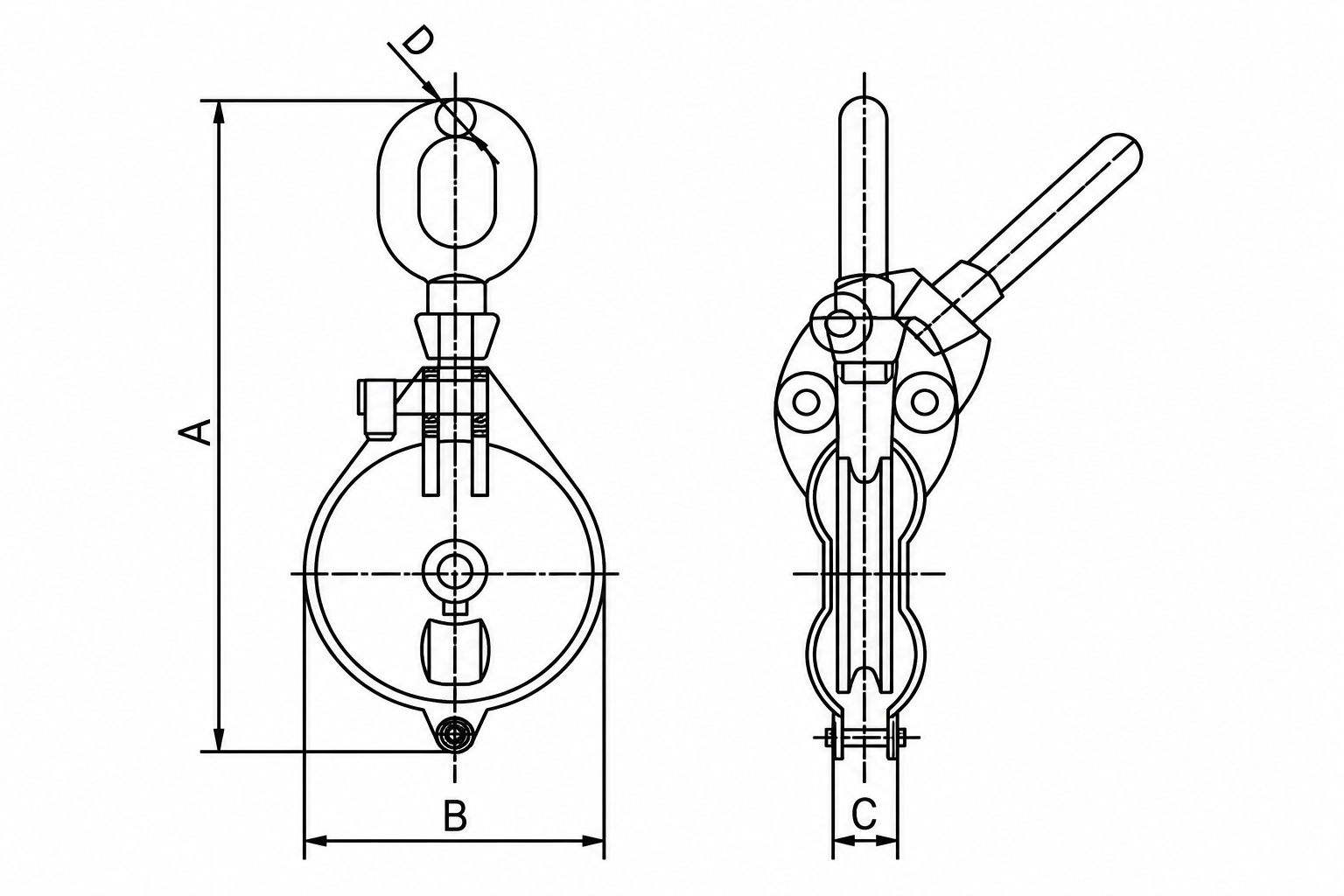

| WLL/T | SIZE/mm | N.W (kg) | FOR WIRE DIA (mm) | |||
| A | B | C | D | |||
| 0.5 | 230 | 85 | 26 | 12 | 1.5 | 8 |
| 1 | 285 | 121 | 34 | 16 | 2.4 | 8 |
| 1.5 | 346 | 145 | 38 | 18 | 4.2 | 9 |
| 2 | 419 | 180 | 41 | 22 | 6.4 | 12 |
| 4 | 517 | 225 | 46 | 28 | 12.5 | 16 |
| 5 | 655 | 275 | 60 | 28 | 16 | 22 |
| 0.5 | 230 | 85 | 50 | 12 | 2.1 | 8 |
| 1 | 285 | 121 | 61 | 16 | 3 | 8 |
| 1.5 | 355 | 145 | 73 | 18 | 5.9 | 9 |
| 2 | 265 | 180 | 83 | 22 | 9 | 12 |
| 4 | 517 | 225 | 93 | 28 | 17.5 | 16 |
| 5 | 600 | 275 | 115 | 28 | 28.6 | 22 |
· The table is for initial model selection. Confirm the load rating, the meaning of “ton”, rope diameter and product marking against TOPONE’s final approved specification before publication.
· When specifying the complete system, check the selected steel wire rope, connecting fitting and anchor point together with the block.
Name: Single Pulley Snatch Block with Eye
MOQ: 1 piece
Package: Carton + Steel Pallet
Manufacturing Standards: Manufacture and inspect the eye, opening side, sheave, axle and rope groove according to the approved TOPONE drawing. Confirm the material and finish for each order.
Testing Standards: Verify key dimensions, side closure and sheave rotation. State proof-load results or certification only when supported by the records for the supplied product.
Application Standards: Match the block’s marked rating and rope groove to the intended rigging arrangement. Calculate the force acting on the block when the rope changes direction, and verify the capacity of the connection and anchor point.
Maintenance Standards: Before use, check the eye, side closure, axle, sheave and groove for deformation, cracks, wear or restricted movement. Remove a damaged block from service and maintain moving parts according to the supplied instructions.
