The Double Sheave Snatch Block guides steel wire rope through a two-sheave rigging arrangement. Its opening side allows rope installation during setup, while the selected swivel fitting connects the block to a suitable anchor point.
Product: Double Sheave Snatch Block
Reference Sizes: 4½–18 in, with published safe working loads from 4 to 15 ton. Select the rating and rope diameter from the row for the exact size.

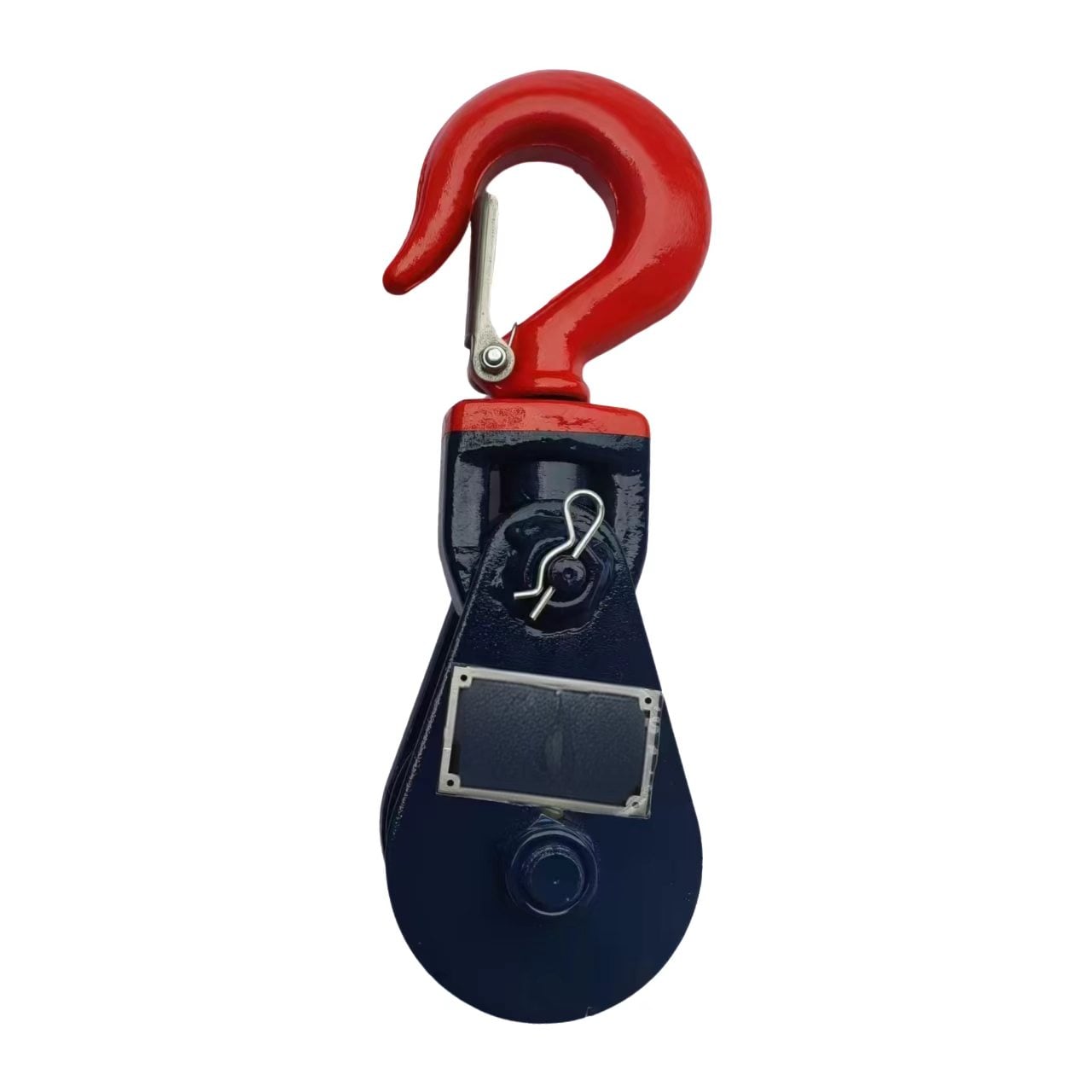

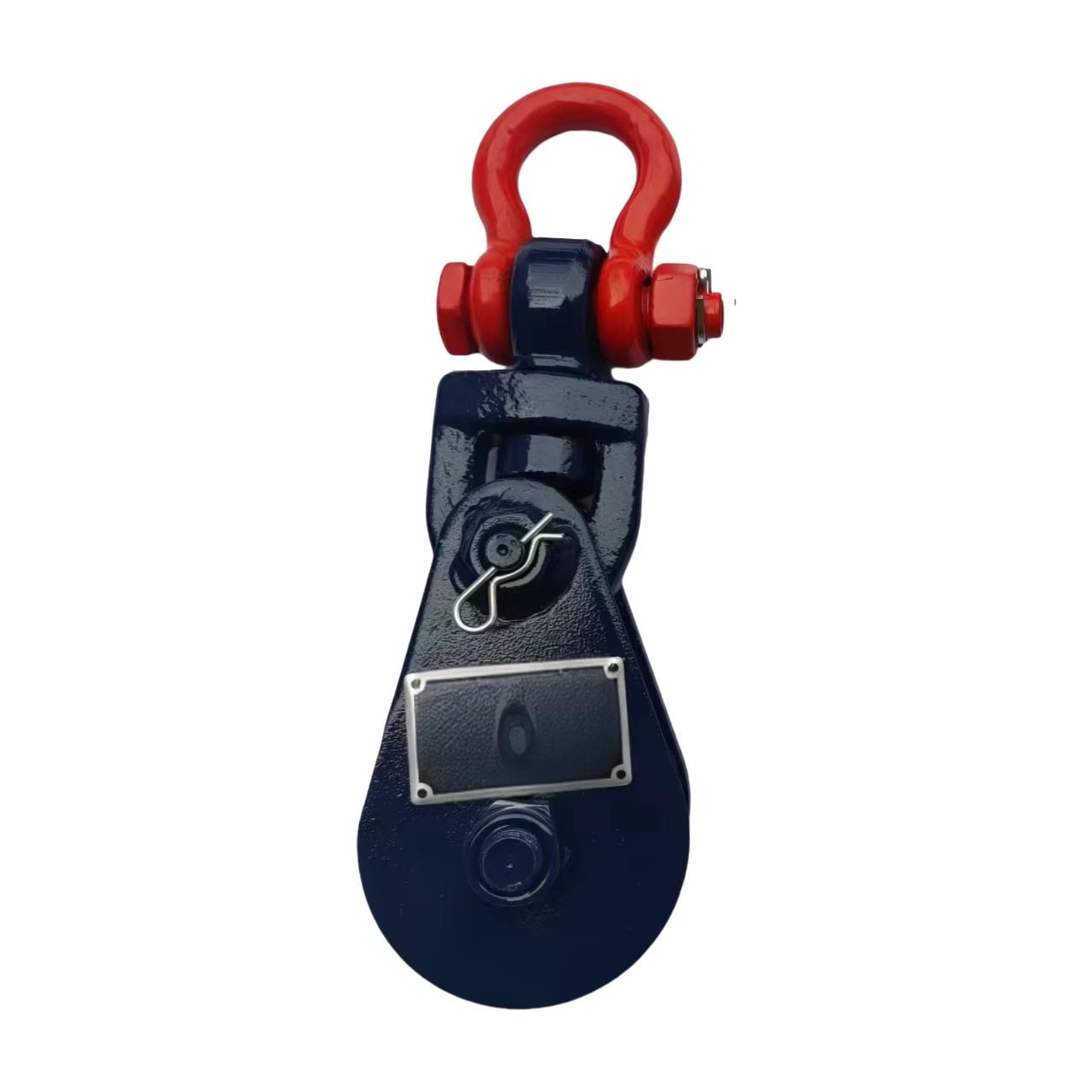

Configuration: Two grooved sheaves with a swivel hook or swivel shackle connection. The reference design lists roller bearings or bronze bushings as configuration options.
Applications: Rope reeving for suitable lifting and pulling systems in construction, equipment handling and industrial rigging. The available mechanical advantage depends on the complete reeving arrangement, not on the number of sheaves alone.
Customization: TOPONE accepts requests for sheave size, connection style, bearing arrangement and rope compatibility. The approved design and test records determine the final rating.
Marked Capacity | Size | Overall Length (mm) | Block Width (mm) | Shackle Opening (mm) | Groove Width (mm) | Unit Weight (kg) |
2 ton | 3 in | 240 | 75 | 30 | 12 / 20 | Approx. 2.3 |
4 ton | 4 / 4.5 in | 365 | 101 | 48 | 15 / 17 | Approx. 6 |
8 ton | 6 in | 460 | 152.4 / 152 | 65 | 20 | Approx. 12.22 |
8 ton | 8 in | 460 | 200 | 65 | 20 | — |
15 ton | 8 in | 665 | 200 | 90 | 30 | — |
20 ton | 8 in | 750 | 200 | 127 | 28 | — |
The table reproduces the reference supplier’s published values. Confirm TOPONE’s rated capacities, sheave dimensions and compatible rope diameters against its approved drawings before publication.
The reference table does not define whether “ton” means metric tonne or another unit. State the verified unit on the final product table and rating mark.
For a ustom block, provide the intended rope, load, connection style and reeving arrangement so TOPONE can confirm the specification.
Name: Double Sheave Snatch Block
MOQ: 1 piece
Package: Carton + Steel Pallet
Manufacturing Standards: Manufacture each configuration to the approved TOPONE drawing and material specification. ASME B30.26 provides a relevant reference for rigging blocks where its scope and the destination market apply. Confirm conformity against the applicable edition before making a compliance claim.
Testing Standards: Check the sheaves, grooves, side plates, pins, swivel fitting and bearing arrangement against the approved specification. Verify free rotation, secure side closure and the rated load through the applicable inspection and test plan. Retain results with the block’s identification and issue product-specific documents according to the verified records.
Application Standards: Match the block rating, rope diameter and connection to the complete lifting or pulling system. Calculate the force acting on the block and anchor for the actual rope directions and reeving arrangement; do not select the block from the suspended load alone. Follow the applicable rules for the equipment and worksite.
