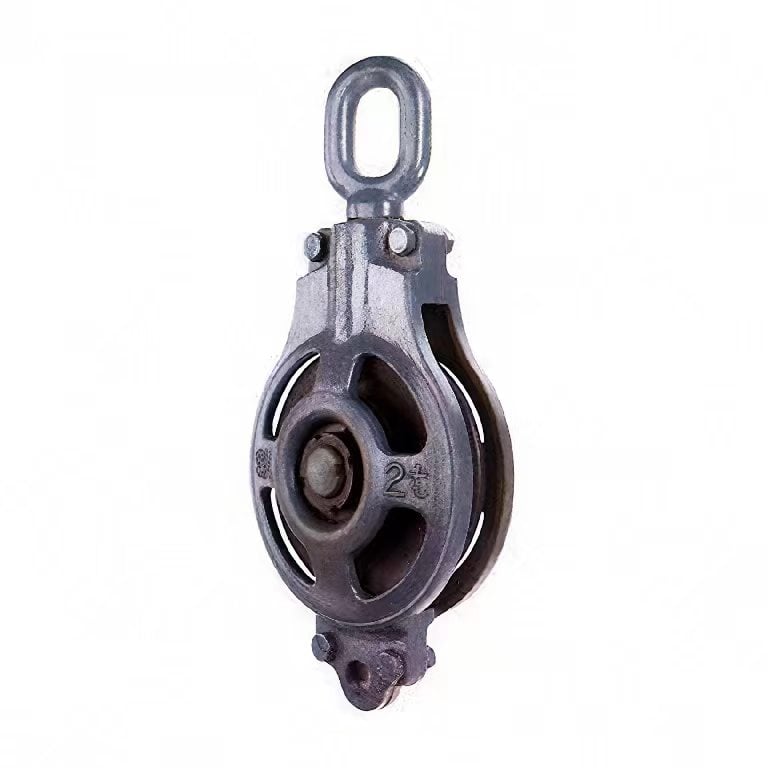

TOPONE Single Sheave Marine Cargo Blocks guide steel wire rope in vessel and port rigging systems. The reference range covers 6–18 in sizes, 2–20 ton SWL and 10–28 mm rope diameters, with tapered roller bearings and a painted finish. Connection fittings can be specified for the intended installation.
These cargo blocks use a single grooved sheave to guide rope through a marine lifting or pulling arrangement. Select the block by its rated load, rope diameter and top connection, then verify the forces acting on the complete system.
· Materials and construction: The reference configuration uses a painted steel assembly and a sheave fitted with tapered roller bearings.
· Connection options: N type stud eye, L type oval eye, Q type double lug and Y type duckbill eye. Specify the required fitting when ordering.
· Applications: Vessel equipment handling, shipyard rigging and port cargo handling where the block and its supporting structure are rated for the task.
· Customization: TOPONE accepts requests for fitting geometry, bearing arrangement, rope groove and finish. The final rating depends on the approved configuration.
TOPONE’s manufacturing facilities cover more than 15,000 m², including over 5,000 m² of manufacturing warehouse space. For each cargo block order, TOPONE confirms the drawing, material specification and inspection requirements before supply. For system selection, also review the matching steel wire rope and shackles.

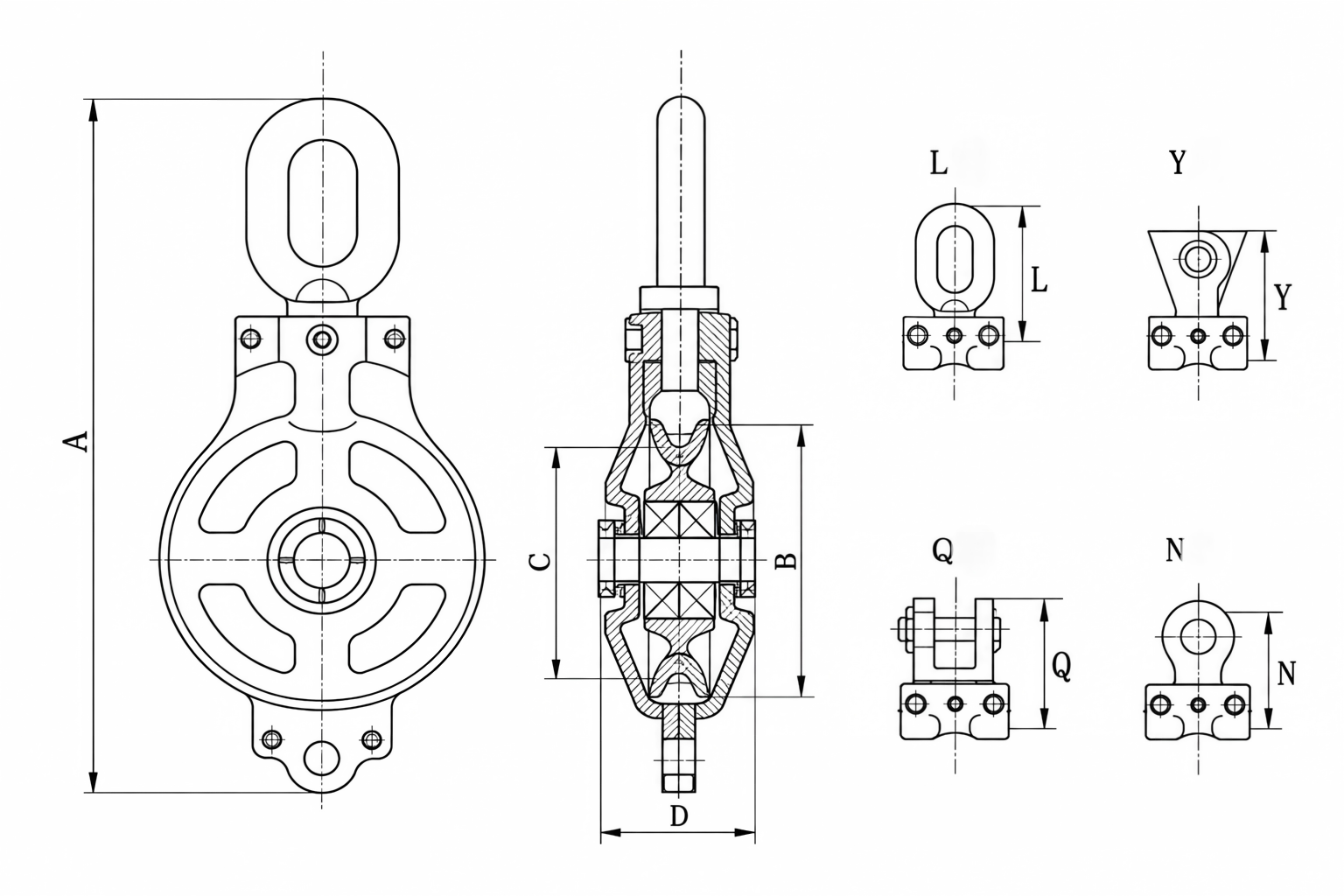

| KN(t) | KN(t) | FOR WIRE DIA(m) | A(mm) | B | C | D | N.W(kg) | |||||||||||
| L type | N type | Y type | Q type | L type | N type | Y type | Q type | |||||||||||
| 20(2) | 80(8) | 10-13 | 429 | 384 | 384 | 401 | 156 | 132 | 100 | 11 | 11 | 11 | 12.5 | |||||
| 30(3) | 120(12) | 16-20 | 568 | 482 | 482 | 501 | 196 | 164 | 124 | 20 | 20 | 20 | 22 | |||||
| 30(3) | 120(12) | 16-20 | 606 | 551 | 551 | 570 | 260 | 224 | 124 | 27 | 27 | 27 | 30 | |||||
| 50(5) | 200(20) | 20-22 | 685 | 643 | 643 | 658 | 300 | 260 | 134 | 40 | 40 | 41 | 46 | |||||
| 50(5) | 200(20) | 20-24 | 796 | 737 | 737 | 750 | 340 | 300 | 151 | 55 | 55 | 55 | 59 | |||||
| 100(10) | 400(40) | 24-26 | 945 | 881 | 881 | 897 | 406 | 356 | 190 | 100 | 100 | 102 | 110 | |||||
| 160(16) | 640(64) | 26-28 | 1018 | 948 | 948 | 968 | 430 | 378 | 192 | 125 | 125 | 128 | 132 | |||||
| 200(20) | 800(80) | 26-28 | 1095 | 1035 | 1035 | 1055 | 460 | 410 | 210 | 150 | 150 | 155 | 175 | |||||
· The figures are reference specifications. Confirm the “ton” unit, marked SWL, rope compatibility and selected fitting on TOPONE’s final datasheet.
· More project context is available in Marine Engineering Solutions.
Name: Single Sheave Marine Cargo Block
MOQ: 1 piece
Package: Carton + Steel Pallet
Manufacturing Standards: Manufacture the selected frame, sheave, pin and top fitting to the approved drawing. Specify material grades, bearing arrangement and finish in the order.
Testing Standards: Verify dimensions, sheave rotation, fitting security and load marking. Publish proof-load results only when supported by the supplied model’s test records.
Application Standards: Match the block’s marked capacity and groove to the rope and rigging layout. Verify the load on the block, its connection and the supporting structure.
Maintenance Standards: Inspect the frame, fitting, pin, bearings and rope groove before use. Clean salt deposits and lubricate the sheave pin and moving fitting as specified in the supplied instructions.
