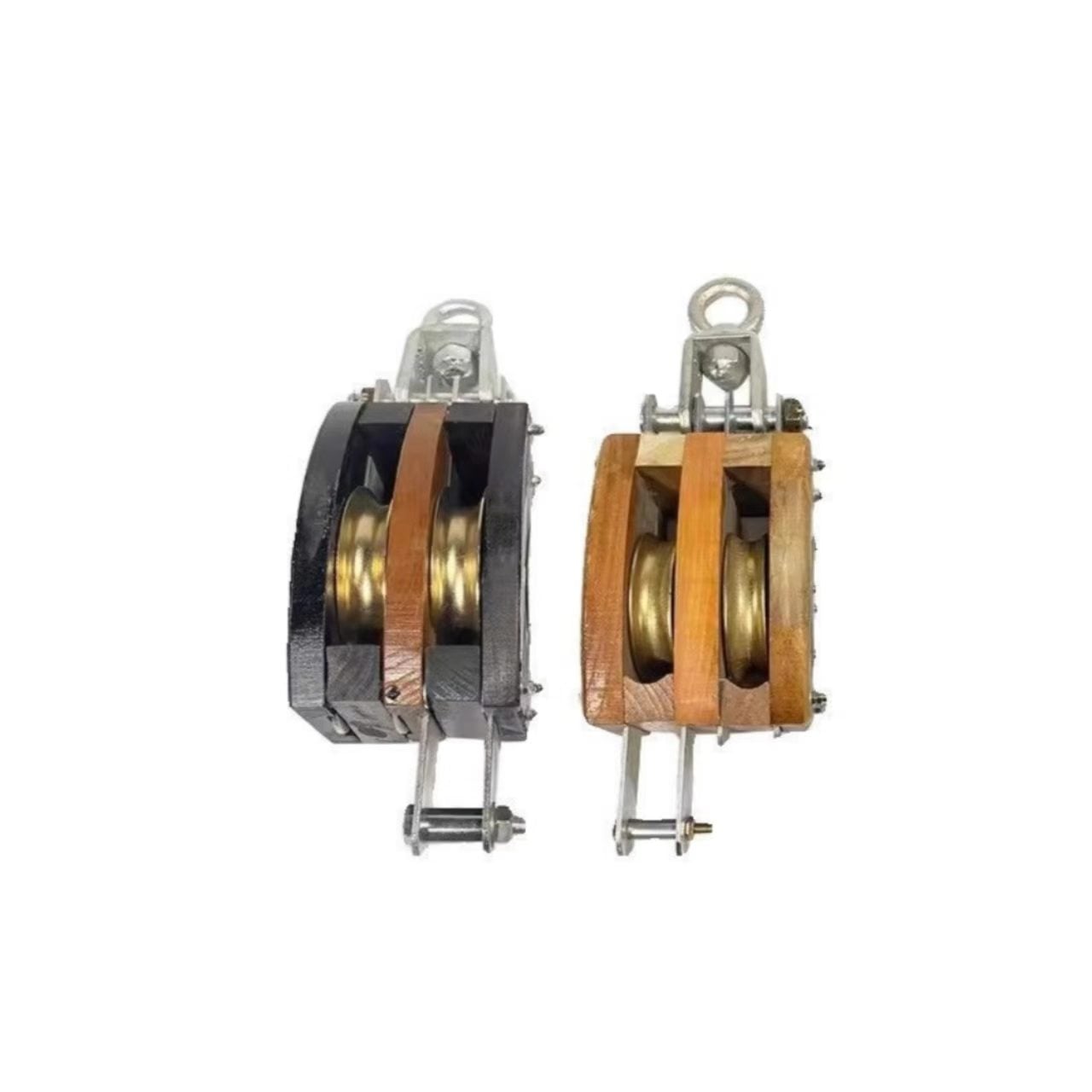

TOPONE Double Wooden Shell Blocks guide rope through two sheaves housed in a wooden shell. The pictured eye-type models cover 140–240 mm sizes, 14–24 mm rope diameter ranges and listed safe working loads of 660–1,800 kg. The top connection can be specified to suit the rigging arrangement.
Double-sheave design: Two separate sheaves support multi-part rope reeving. The pulling force and load acting on the block depend on the complete rope arrangement; two sheaves do not automatically double the block’s rated capacity.
Construction: A wooden shell encloses the two grooved sheaves and their axle assembly. Confirm the wood finish, sheave material, bushings and metal fittings against the approved drawing. The reference product family describes hardwood shells, forged fittings and galvanized metal parts.
Optional top fittings: Swivel Hook, Fixed Hook, Anchor Shackle or Swivel Eye. State the required fitting when ordering. The table below describes the pictured eye-type reference configuration; another fitting may change the rated load, dimensions and weight.
Applications: For compatible fiber-rope lifting and pulling arrangements in workshops, construction and general material handling. Select the rope and attachment hardware according to the approved block specification.
Customization: TOPONE accepts requests for shell size, sheave grooves, top fitting and finish. The final configuration is confirmed on the product drawing.
Precautions: Inspect the wood for cracks or splitting and check the fitting, axle and free rotation of both sheaves before use. Avoid shock loading, keep the rope seated in the grooves and store the block in a clean, dry location.
TOPONE can review the intended rope diameter, load and connection arrangement before confirming a specification. Its wider manufacturing facility covers more than 15,000 m², including over 5,000 m² of manufacturing warehouse space. www.toponechain.com
Explore the Block range and related Shackles or Hooks.
Nominal Size (mm) | Wooden Shell Height (mm) | Compatible Rope Diameter (mm) | Safe Working Load (kg) | Unit Weight (kg) |
140 | 140 | 14–16 | 660 | 4.5 |
180 | 180 | 16–18 | 1,100 | 5.5 |
200 | 200 | 20–22 | 1,300 | 6.9 |
220 | 220 | 20–22 | 1,600 | 10.2 |
240 | 240 | 22–24 | 1,800 | 13 |
The listed values apply to the pictured eye-type models. Confirm the code, connection type, rated load and weight against TOPONE’s final drawing before publication or quotation.
Name: Double Wooden Shell Blocks
MOQ: 1 piece
Package: Carton + Steel Pallet
Manufacturing Standards: Manufacture to the approved drawing covering the wooden shell, two sheaves, axles, rope grooves, finish and selected top fitting.
Testing Standards: Inspect dimensions, fitting security and the rotation of both sheaves. Verify the rated load under the agreed test plan for the finished configuration.
Application Standards: Use compatible rope and correctly rated attachment hardware. Evaluate the forces on the block for the intended reeving and rope direction.
Maintenance Standards: Inspect the shell, fittings, axles and sheave grooves before use. Clean and maintain moving parts according to the supplied instructions; withdraw damaged blocks from service.
