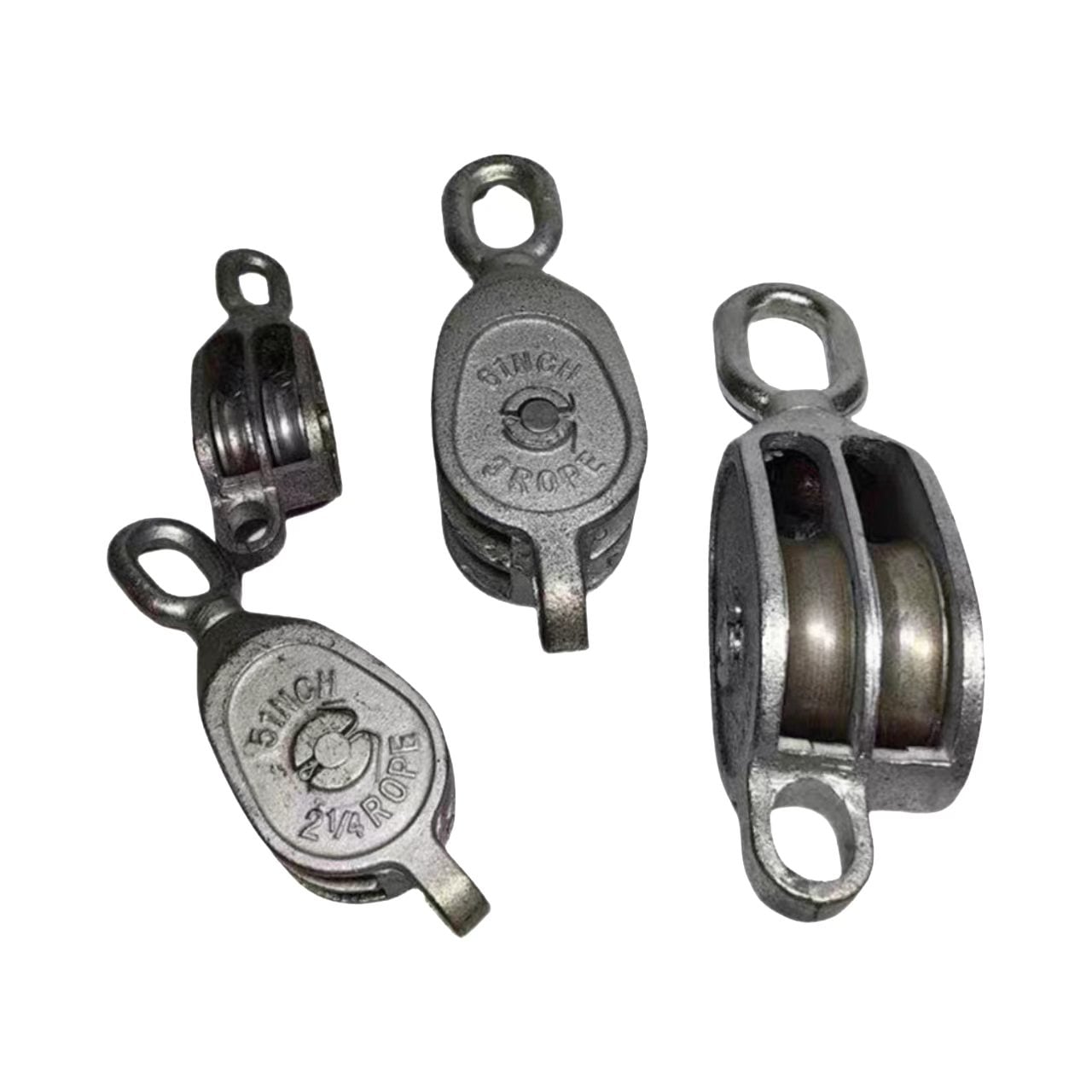

The TOPONE Double Sheave Pulley Block guides fiber rope through two iron sheaves fitted with bronze bushings. Its hot-dip galvanized malleable iron body is available in 3–9 inch sizes, with a swivel eye or hook connection to suit the rigging arrangement.

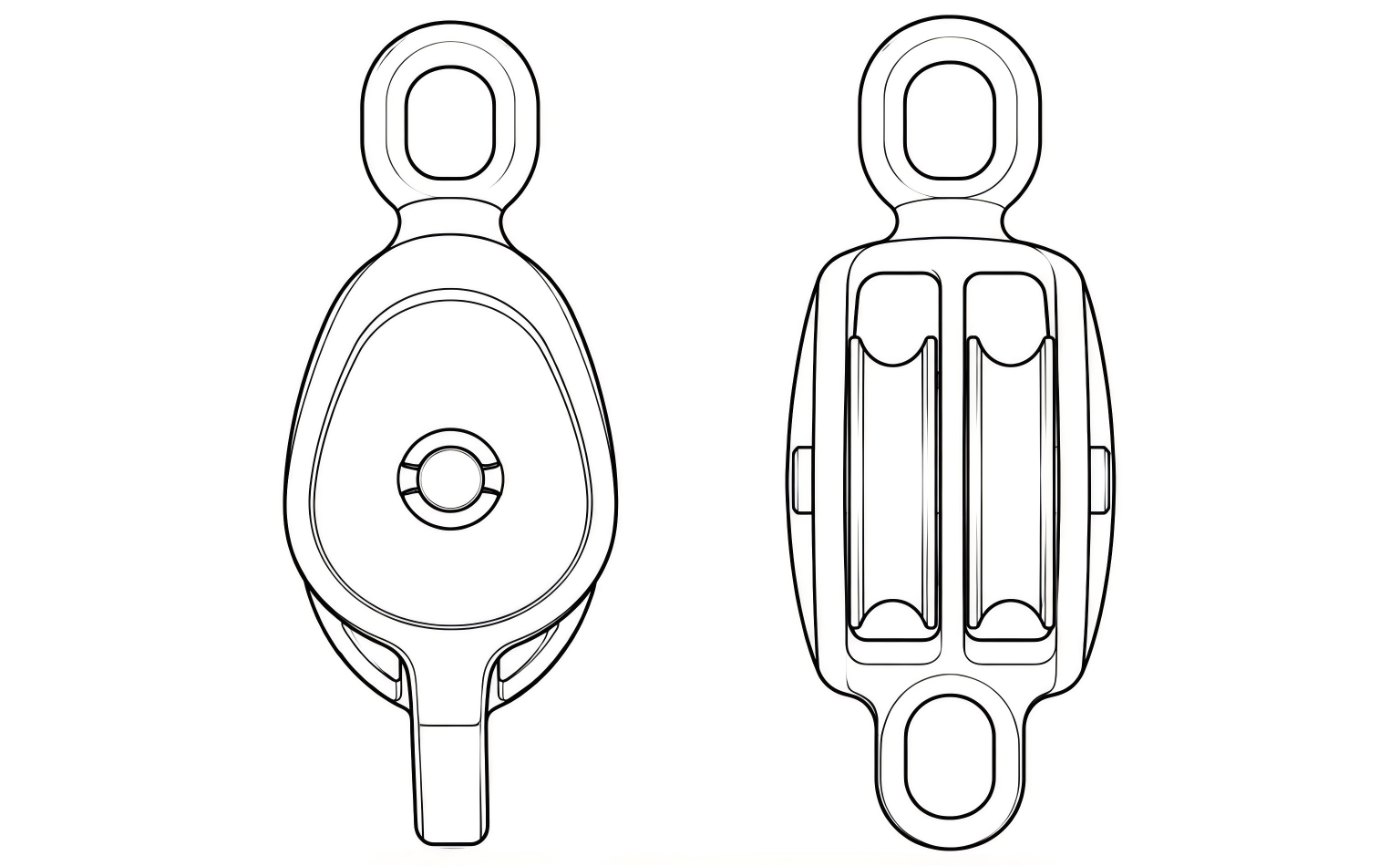

· Construction: The double sheave pulley block has a hot-dip galvanized malleable iron body, two iron sheaves and bronze bushings. It is designed to guide fiber rope through a two-sheave rigging arrangement.
· Connections: A swivel oval eye or swivel hook can be selected to suit the installation. For an eye connection, choose a compatible shackle rated for the complete assembly.
· Applications: Suitable for specified fiber-rope lifting and pulling arrangements in construction, workshops, warehouses and general material handling.
· Precautions: Check the block’s marked working load, rope diameter and the ratings of all connecting components before use. Account for the load imposed on the block by the rope direction and rigging arrangement; two sheaves do not automatically double its rated capacity. Keep the rope seated in the grooves, avoid side loading, and inspect the body, fitting, bushings and free rotation of both sheaves before each use. Do not use a damaged or unmarked block. thecrosbygroup.com
· Customization: TOPONE accepts requests for connection style, sheave configuration, finish and project-specific drawings. Our manufacturing facility covers more than 15,000 m², including over 5,000 m² of manufacturing warehouse space.
Explore other configurations in our Block range.
Size (in) | Reference S.W.L. (ton) | Fiber Rope Diameter (mm) |
3 | 0.2 | 12 |
4 | 0.4 | 16 |
5 | 0.5 | 18 |
6 | 1.0 | 24 |
7 | 1.1 | 26 |
8 | 1.2 | 28 |
9 | 1.5 | 30 |
The table shows reference specifications. Confirm the ton unit, rated capacity, rope compatibility and fitting configuration against TOPONE’s approved product drawing before use.
· Name: Galvanized Malleable Iron Double Sheave Pulley Block
· MOQ: 1 piece
· Package: Carton + Steel Pallet
· Manufacturing Standards: Manufacture to the approved product drawing, including material, dimensions, sheave fit, connection and finish requirements.
· Testing Standards: Confirm the required inspection and load-test method in the purchase specification; provide test records when specified.
· Application Standards: Use only within the marked working load and with compatible fiber rope and correctly rated connections.
· Maintenance Standards: Inspect the body, hook or eye, sheaves and bushings for wear, deformation and corrosion; check that both sheaves rotate freely before use.
