Anchor Chain
Stud Link Anchor Chain close left right

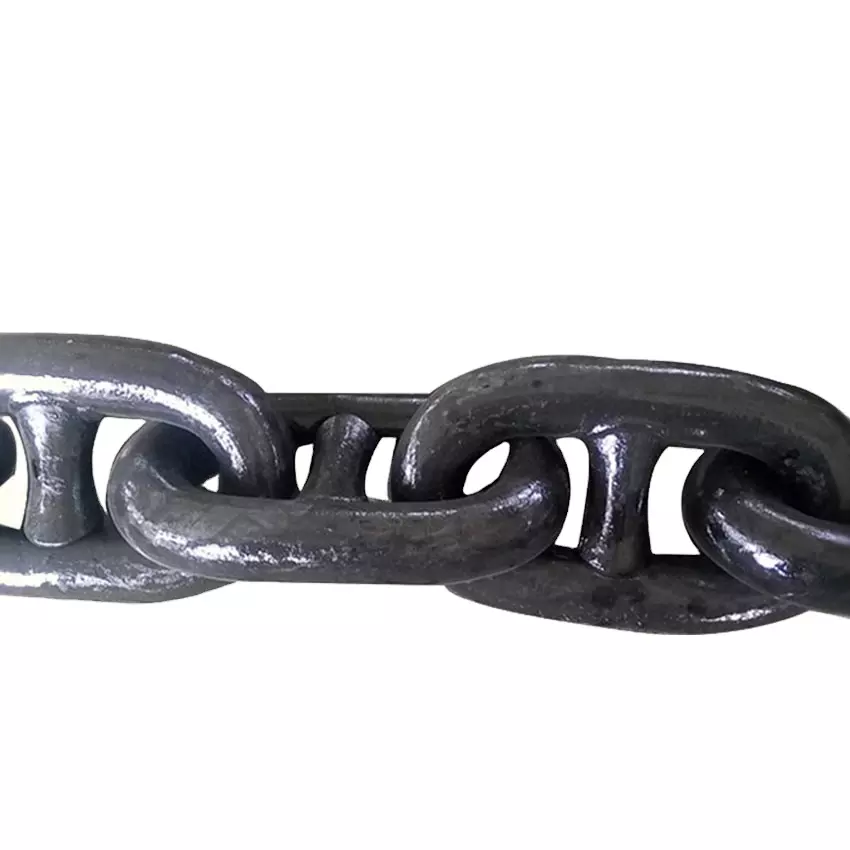

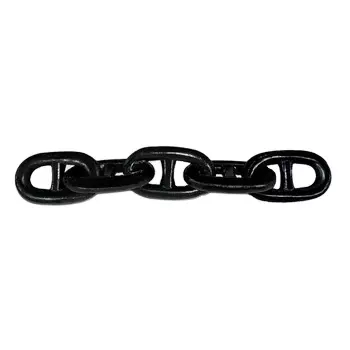

Stud Link Anchor Chain

An anchor chain is a chain connecting the anchor and the hull to transmit and buffer the external forces experienced by the ship. Part of the friction can also be generated. The main function of the anchor is to fix and stabilize the ship. The anchor chain is made up of many chain links, and the size is expressed by the chain diameter (mm). The anchor chain can be made by forging, casting and welding. The ship anchor chain is composed of several "sections", each section is 25 to 27 meters long, and the sections are connected by chain links or shackles. After the anchor is twisted, the chain is stored in the chain locker at the bow of the ship. The specifications of the anchor chain are calculated in accordance with the ship construction standards.

Introduction


Type:Ring

Material:Steel CM490/CM690

Size:12.5mm - 90mm(Provide OEM services)

certificate:ABS, CCS, NK, BV, KR, DNV, LR, GL, RINA, RS

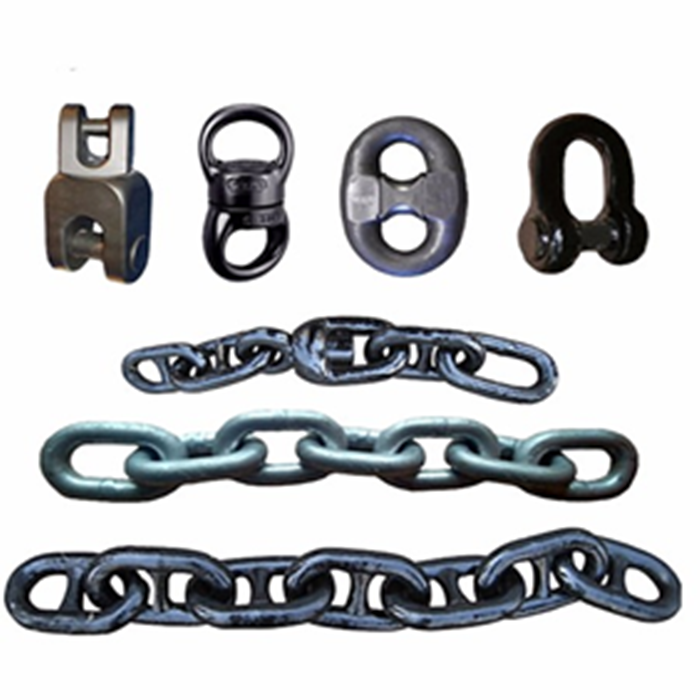

Accessories:shackles, swivels & Anchors

Grade:U1 and U2 and U3

Structure:Welded Chain

Finishing: Hot-dip galvanized, black, natural color


Parameter


D(φ)
DIAMETER


CHAIN LINK SIZE


AM1
U1 STUD LINK CHAIN


AM2
U2 STUD LINK CHAIN


AM3
U3 STUD LINK CHAIN


APPROX.
WEIGHT


OUTSIDE
LENGTH


OUTSIDE
WIDTH


PROOF
LOAD


BREAKING
LOAD


PROOF
LOAD


BREAKING
LOAD


PROOF
LOAD


BREAKING
LOAD

27.5M

INCH

MM

MM

MM

KN

KN

KN

KN

KN

KN

KG

1/2

12.5

75

45

46

66

66

92

92

132

98.00

9/16

14

84

50.4

58

82

82

116

116

165

119.00

5/8

16

96

57.6

76

107

107

150

150

216

156.00

11/16

17.5

105

63

89

127

127

179

179

256

186.00

3/4

19

114

68.4

105

150

150

211

211

301

230.00

13/16

20.5

123

73.8

123

175

175

244

244

349

260.00

7/8

22

132

79.2

140

200

200

280

280

401

300.00

15/16

24

144

86.4

167

237

237

332

332

476

370.00

1-1/16

26

156

93.6

194

278

278

389

389

556

431.00

1-1/8

28

168

100.8

225

321

321

449

449

642

496.00

1-3/16

30

180

108

257

368

368

514

514

735

564.00

1-1/4

32

192

115.2

291

417

417

583

583

833

635.00

1-5/16

34

204

122.4

328

468

468

655

655

937

712.00

1-7/16

36

216

129.6

366

523

523

732

732

1050

800.00

1-1/2

38

228

136.8

406

581

581

812

812

1160

887.00

1-9/16

40

240

144

448

640

640

896

896

1280

1032.00

1-5/8

42

252

151.2

492

703

703

981

981

1400

1084.00

1-3/4

44

264

158.4

538

769

769

1080

1080

1540

1197.00

1-13/16

46

276

165.6

585

837

837

1170

1170

1680

1310.00

1-7/8

48

288

172.8

635

908

908

1270

1270

1810

1438.00

2

50

300

180

686

981

981

1370

1370

1960

1546.00

2-1/16

52

312

187.2

739

1060

1060

1480

1480

2110

1661.00

2-1/8

54

324

194.4

794

1140

1140

1590

1590

2270

1791.00

2-3/16

56

336

201.6

851

1220

1220

1710

1710

2430

1926.00

2-5/16

58

348

208.8

909

1290

1290

1810

1810

2600

2086.00

2-3/8

60

360

216

969

1380

1380

1940

1940

2770

2249.00

2-7/16

62

372

223.2

1030

1470

1470

2060

2060

2940

2361.00

2-1/2

64

384

230.4

1100

1560

1560

2190

2190

3130

2516.00

2-9/16

66

396

237.6

1160

1660

1660

2310

2310

3300

2676.00

2-11/16

68

408

244.8

1230

1750

1750

2450

2450

3500

2885.00

2-3/4

70

420

252

1290

1840

1840

2580

2580

3690

3010.00
