Shackle Grades Explained: U2 vs U3 vs Other Standards

When selecting a shackle for a critical marine or lifting application, the term "grade" is one of the most important factors to consider. However, with designations like U2, U3, and various other standards, it can be challenging to know which one is right for your needs. Choosing the wrong grade can lead to premature wear, component failure, and significant safety risks.

This guide is designed to clarify the differences between common shackle grades, with a focus on the U2 and U3 standards prevalent in the marine industry. We will explain what these grades mean, how they compare to other standards, and how to select the appropriate grade to ensure the safety and longevity of your equipment.

What Does "Shackle Grade" Mean?

A shackle's grade is a designation that indicates the ultimate breaking strength of the steel it is made from. It is directly related to the material's tensile strength, which is the maximum stress it can withstand before breaking. In simple terms, a higher grade number means a stronger shackle for the same size.

Key Terminology

• Tensile Strength: Measured in megapascals (MPa) or newtons per square millimeter (N/mm²), this is the ultimate strength of the material.

• Working Load Limit (WLL): The maximum load a shackle is certified to handle in normal use. This is determined by applying a safety factor to the ultimate breaking strength.

• Proof Load: A quality control test where the shackle is subjected to a load that is typically twice the WLL to ensure it has no defects.

Marine Shackle Grades: U2 vs. U3

In the context of anchor chains and fittings, U2 and U3 are the most common grades specified by classification societies. These grades are specifically defined for mooring applications.

Grade U2 Shackles

Grade U2 is the standard for many commercial vessels and general marine applications. It is manufactured from a carbon-manganese steel that provides a good balance of strength, ductility, and wear resistance. U2 shackles are a reliable and cost-effective choice for standard anchoring needs.

Grade U3 Shackles

Grade U3 is a higher-strength grade, offering approximately 30% more tensile strength than U2. This is achieved by using a higher-grade alloy steel and a more advanced heat treatment process (quenching and tempering). The primary advantages of U3 shackles are:

• Higher Strength-to-Weight Ratio: For the same load capacity, a U3 shackle can be smaller and lighter than a U2 shackle.

• Increased Durability: The alloy steel provides superior resistance to wear and fatigue, making it ideal for more demanding environments.

Comparison Table: U2 vs. U3

Soft CTA: Unsure if U2 or U3 is right for your vessel? Contact our technical team for a free consultation based on your specific requirements.

Other Common Shackle Standards

While U2 and U3 are specific to marine anchoring, you may encounter other grading systems in different industries.

Lifting and Rigging Grades (Grade 80 & Grade 100)

These grades are commonly used for overhead lifting slings and components. They are not interchangeable with marine grades but offer a useful comparison.

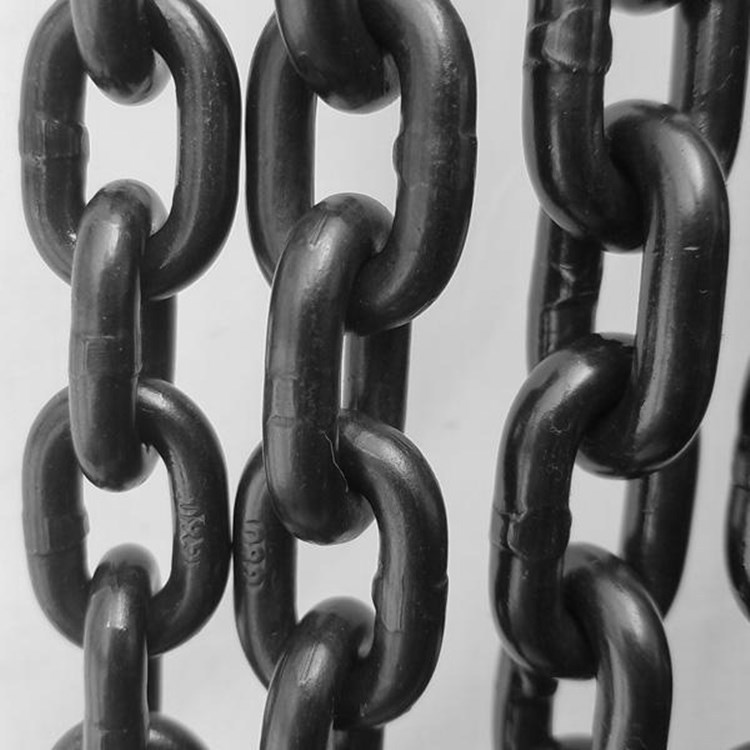

• Grade 80 (G80): A high-strength, heat-treated alloy steel. It has long been the industry standard for lifting chains and components.

• Grade 100 (G100): Offers approximately 25% more strength than Grade 80. It is becoming the new standard for heavy-duty lifting due to its superior strength-to-weight ratio.

Federal Specifications (RR-C-271)

This is a U.S. government standard that defines the requirements for various types of shackles used in federal and military applications. It includes specifications for different types, classes, and grades of shackles.

How to Choose the Right Shackle Grade

Selecting the correct shackle grade is a critical step in ensuring the safety and reliability of your system. Here are the key factors to consider:

1. Match the Chain Grade

The most important rule is to always use a shackle with a grade that is equal to or greater than the grade of the chain it is connected to. Using a lower-grade shackle creates a dangerous weak point in the system.

2. Consider the Application

• Standard Commercial Vessels: Grade U2 is often sufficient and provides a good balance of performance and cost.

• Offshore Rigs, Large Tankers, or High-Stress Environments: The superior strength and durability of Grade U3 make it the safer and more reliable choice.

• Overhead Lifting: Use only shackles specifically rated for lifting, such as Grade 80 or Grade 100.

3. Verify Certification

Always purchase shackles from a reputable supplier who can provide proper certification. For marine applications, this often means a certificate from a classification society (like ABS, DNV, or LRS) that verifies the shackle meets the required standards.

Soft CTA: Need certified U2 or U3 shackles for your next project? Browse our full range of anchor chain fittings and request a quote today.

Conclusion

Understanding shackle grades is essential for making informed purchasing decisions that ensure safety and compliance. While Grade U2 is a reliable standard for many marine applications, the superior strength and durability of Grade U3 offer significant advantages in more demanding conditions. Always match your shackle grade to your chain grade and partner with a trusted supplier like TopOne Chain to guarantee you receive certified, high-quality products.
