Skids tilt, padeyes miss heights, and headroom shrinks at the worst moment, so crews reach for chain bridle slings when a simple two-leg rig cannot keep attitude. You gain control because a bridle lets you bias legs, trim length quickly, and steer around obstacles without a full re-rig. This guide focuses on planning, equalization, and verification rather than formulas, so you can pick the right bridle layout, build a calm head, and document tension control before any lift.

Map the load and choose a bridle that matches reality

Start with the steel, not the catalog. Walk the load and mark actual pick points, then sketch heights so you see where planes disagree. Now match the job:

Two-leg bridle for straight lifts with slight fore-aft bias and tight access.

Three-leg bridle when the load offers three solid points on one face but hides the fourth.

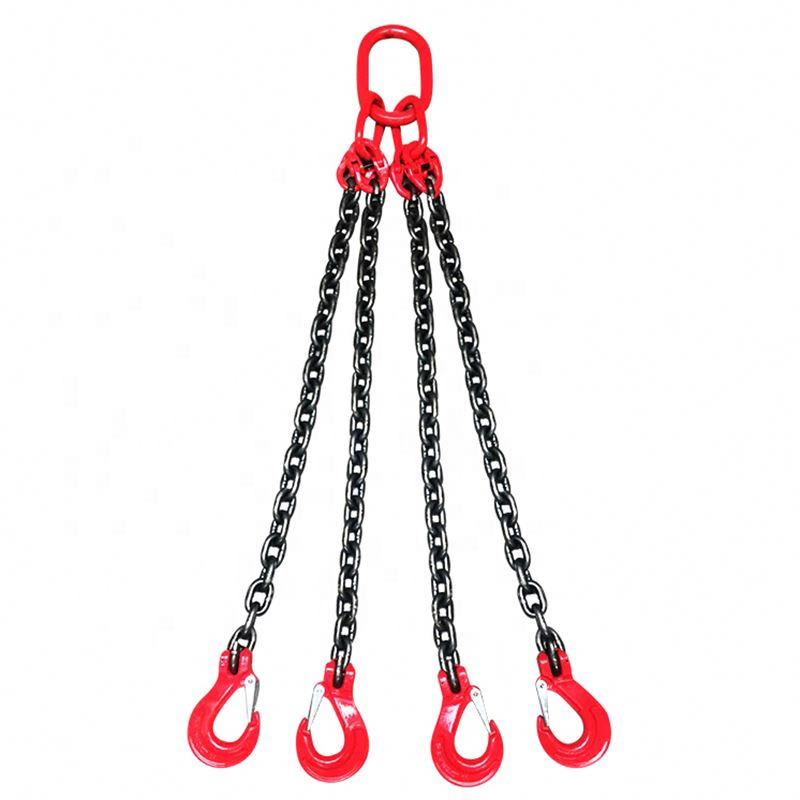

Four-leg bridle when you need diagonal control and want a stabilizer on every corner.

You pick the bridle first, then you select chain diameter and hook style from the sling tag and the hardware stamps.

Build a head that stays calm under motion

The head decides how the rig behaves when wind, brakes, or bumps arrive:

Single master link keeps everything compact and fast; add shorteners at the head so you trim opposite legs evenly.

Spreader with two two-leg bridles opens angles, clears fragile topsides, and fights torsion during long travel.

Equalizer head with in-line swivel helps when the load wants to spin; keep the swivel strictly in line and never use it to mask side loading.

Seat the master link freely in the crane hook and keep inside width generous so the latch closes without pinch.

Chain bridle slings need length control, not eyeballing

You cannot equalize by sight, so set repeatable steps:

1. Lay the bridle flat and roll links until grade stamps face up; match leg lengths on the ground.

2. Tag legs A/B/C/D at the head and color-band them so crews trim the intended pair.

3. Use rated shorteners and seat one full link in each pocket; never capture half a link.

4. Take a test bump to 150 mm, pause, and read angles with a card or inclinometer at every leg, not just the front two.

5. Trim opposite legs in small increments and re-bump until all legs share work and the attitude matches the plan.

Control side loading and out-of-plane forces

You keep the load path honest or you lose capacity fast:

Fit self-locking hooks for wind, vibration, or stops mid-air; keep spring-latch hooks for short, sheltered moves.

When legs may sweep, pin bow shackles at the head; run the pin through the hardware and face the bow toward the legs so the pin carries pure shear.

Guard every sharp edge; stainless resists corrosion but not cutting, and alloy crowns still scar on hard corners.

Add an in-line swivel only where the force runs straight; never ask a swivel to fix misalignment.

Configuration matrix — chain bridle slings by job

Always size from the sling tag and the component stamps; the lowest rating rules the path.

Verification you can show on a clipboard

Audits ask for numbers and photos, so capture them before the lift leaves the deck:

Read every mark. Links show grade and size; hooks and shackles show WLL and maker ID; the tag shows WLL by hitch and angle plus serial or batch.

Photograph the layout. Snap the head, the spreader (if used), the leg tags, and the angle reads after the test bump.

Record environment. Note salt, heat, or washdown; rinse coated alloy after splash and oil pivots lightly; store stainless away from carbon racks.

Inspection that crews actually finish

Keep checks short, measurable, and logged so the next shift trusts the gear:

Tag & traceability: confirm grade, WLL by hitch and angle, serial/batch, and maker ID.

Elongation check: measure five consecutive links under light tension; remove legs that exceed the maker’s elongation limit.

Crown wear: gauge link diameter at crowns; retire legs at the published wear limit.

Hooks & latches: cycle latches ten times and verify throat opening; reject cracks at saddle or neck.

Shackles & pins: check threads and straightness; use bolt-type shackles for vibration and re-check cotters after the test bump.

Shorteners & pockets: look for peening or sidewall cracks; dress burrs or replace the pocket before service.

Documentation: file proof-test certificates and the latest inspection sheet with the bridle.

Troubleshooting that saves resets

One leg stays slack after the bump. Trim its diagonal partner a half-link step, re-bump, and repeat until the slack disappears.
Head twists during travel. Reopen angles with a spreader, add an in-line swivel only if the load path stays straight, and shorten the heavy diagonal.
Hook chatter at stops. Switch to self-locking hooks and seat loads deep in the bowl; avoid tip loading.
Scars at corners. Install guards before the pick and reroute legs to true line of pull; do not accept side contact.
Pin backs off. Replace the screw-pin with a bolt-type shackle, tighten the nut, and fit the cotter; log the change on the lift sheet.

Quick reference — what to stage with a chain bridle

Angle cards or a compact inclinometer for each face.

Rated shorteners sized to the chain diameter.

Bow shackles in the same rating family as the chain.

Corner guards sized to known radii on the load.

Markers and bands for leg identification at the head and the load.

Why chain bridle slings beat fixed-length alternatives

You handle odd geometry without swapping hardware because you trim length at the head, not at the floor. You also ride out small attitude changes during travel because four legs let you bias diagonals while you still stabilize every corner. Wire rope still shines on long hot runs with large bend radii, and web still protects painted surfaces, yet chain bridle slings dominate rough, variable work because links tolerate abrasion and shorteners deliver fast angle control.

Conclusion

Map pick points, build a calm head, trim with intent, and document every check, and chain bridle slings will land awkward loads with clean control—contact TOPONE CHAIN today for certified chain bridle slings, matched hardware, and full documentation for your next job.
