Multifilament Polyester (Terylene) Rope

The Heritage of Polyester Rope Technology

Polyester fiber, also known as Terylene in some markets, has been a cornerstone of maritime rope technology for over 70 years. Since its introduction in the 1950s, polyester has proven itself as one of the most reliable and versatile synthetic fiber materials for marine applications. The multifilament polyester rope represents the culmination of decades of engineering refinement and practical maritime experience.

Unlike newer synthetic materials that prioritize specific characteristics (lightweight, flotation, extreme strength), polyester represents a balanced approach: excellent strength, outstanding durability, superior chemical resistance, and proven reliability in real-world maritime conditions.

Why Polyester Remains the Industry Standard

Despite the introduction of numerous alternative materials, polyester remains the preferred choice for professional maritime operations worldwide. This preference is based on proven performance across diverse applications and environmental conditions:

• Proven Track Record: Decades of successful service in demanding maritime environments

• Consistent Performance: Reliable performance across diverse vessel types and operational conditions

• Superior Durability: Extended service life compared to many alternative materials

• Chemical Resistance: Outstanding resistance to saltwater, acids, and industrial chemicals

• Cost-Effectiveness: Excellent performance at a reasonable cost

• Versatility: Suitable for diverse applications from mooring to towing to industrial lifting

The Engineering Behind Multifilament Polyester Rope

Understanding Polyester Fiber Characteristics

Polyester fibers possess unique characteristics that make them ideal for marine mooring applications:

Molecular Structure and Strength:

• Polyester has a highly organized molecular structure with strong chemical bonds

• The molecular alignment provides exceptional tensile strength (approximately 600-800 MPa)

• The strong chemical bonds resist degradation from environmental exposure

• The fiber structure provides excellent load-bearing capacity

UV Stabilization:

• Polyester fibers include UV stabilizers that absorb and dissipate UV radiation

• These stabilizers prevent the photodegradation that would otherwise occur from sun exposure

• The UV stabilizers remain effective throughout the rope's service life

• This UV protection is critical for ropes exposed to intense tropical sun

Chemical Resistance:

• The polyester molecular structure resists attack from acids and bases

• Polyester is resistant to saltwater corrosion and chemical degradation

• The fiber structure resists oils, solvents, and industrial chemicals

• This chemical resistance is superior to polypropylene and polyethylene

Thermal Stability:

• Polyester maintains consistent properties across a wide temperature range

• The fiber structure resists degradation from heat exposure

• The rope maintains strength even at elevated temperatures

• The fiber structure resists brittleness at low temperatures

Moisture Resistance:

• Polyester fibers do not absorb water

• The non-absorbent characteristic maintains consistent rope weight

• The rope maintains consistent performance in wet conditions

• The non-absorbent property prevents swelling or deformation

Biological Resistance:

• Polyester is naturally resistant to fungal growth and mildew

• The fiber structure resists bacterial degradation

• The rope maintains consistent properties in humid environments

• The biological resistance is superior to natural fiber ropes

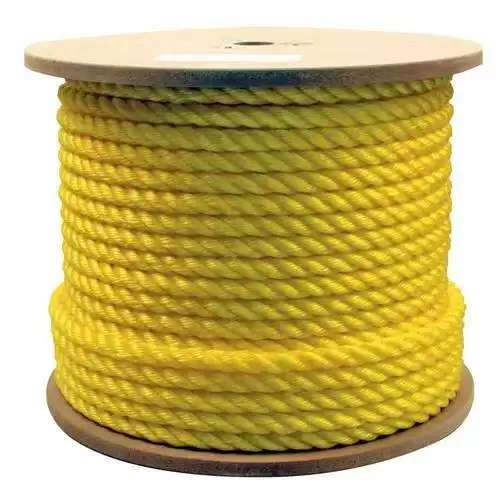

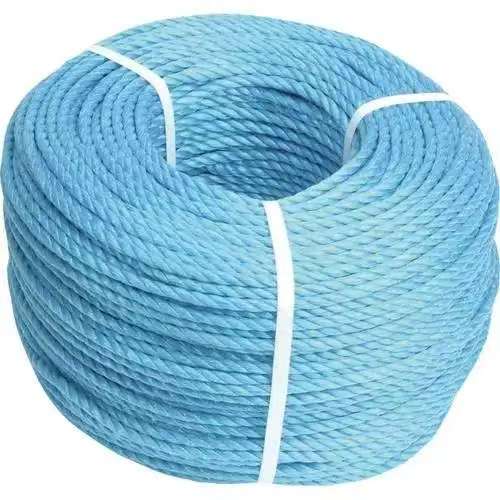

The 3-Strand Laid Construction

Understanding Rope Structure

The 3-strand laid construction is one of the most fundamental rope designs, used for thousands of years and refined through modern engineering:

Strand Manufacturing:

• Multiple polyester fibers are twisted together to form individual strands

• The twist angle is optimized to maximize strength while maintaining flexibility

• Each strand is precisely manufactured to ensure consistent properties

• The strands are tested to verify strength specifications

Rope Laying:

• Three strands are twisted together in a right-hand or left-hand lay

• The laying process is carefully controlled to ensure proper strand compaction

• The lay angle is optimized to balance strength and flexibility

• The rope is continuously monitored to ensure uniform diameter

Advantages of 3-Strand Construction:

• Simplicity: The 3-strand design is simple and proven

• Strength: The 3-strand construction provides excellent tensile strength

• Flexibility: The 3-strand design allows reasonable flexibility for mooring applications

• Durability: The 3-strand design distributes loads evenly across strands

• Repairability: Damaged 3-strand ropes can be spliced for repair

• Cost-Effectiveness: The 3-strand design is cost-effective to manufacture

Manufacturing Excellence: From Fiber to Finished Rope

Fiber Selection and Processing

The manufacturing process begins with careful selection and processing of polyester fibers:

1 Fiber Grade Selection: Premium-grade polyester fibers are selected for optimal properties

◦ High-tenacity fibers with optimized molecular alignment

◦ UV stabilizers incorporated during fiber manufacturing

◦ Precise fiber diameter for consistent properties

◦ Rigorous quality control to ensure consistency

2 Fiber Preparation: Fibers are prepared for strand manufacturing

◦ Fibers are wound onto bobbins for controlled feeding

◦ Fiber tension is carefully controlled during processing

◦ Multiple fibers are combined for strand manufacturing

◦ Sample fibers are tested to verify strength specifications

Strand Manufacturing

Individual strands are created through a precise twisting process:

3 Twist Application: Multiple fibers are twisted together under controlled tension

◦ Twist angle is optimized to maximize strength

◦ Twist consistency is maintained throughout the strand length

◦ Strand diameter is precisely controlled

◦ Tension is maintained to ensure proper fiber compaction

4 Strand Testing: Sample strands are tested to verify specifications

◦ Breaking load testing verifies strength

◦ Elongation testing verifies elasticity

◦ Diameter measurement verifies consistency

◦ Test reports document all measurements

Rope Laying

The three strands are combined in a carefully controlled laying process:

5 Laying Configuration: Three strands are twisted together in a spiral pattern

◦ Right-hand or left-hand lay is selected based on application

◦ Lay angle is optimized for strength and flexibility

◦ Tension control ensures proper strand compaction

◦ Diameter control ensures uniform rope properties

6 Quality Control During Laying:

◦ Continuous diameter monitoring ensures consistency

◦ Tension monitoring ensures proper strand compaction

◦ Visual inspection verifies surface quality

◦ Periodic testing verifies strength specifications

Final Quality Testing

Every rope undergoes rigorous testing before shipment:

• Breaking Load Testing: Sample ropes are tested to destruction

<span style="font-family

Complete Technical Specifications

Standard Sizes and Performance Data

Material Specifications

Performance Specifications

Elongation Characteristics (Critical for Mooring Applications)

Diameter Scaling Properties

Understanding how rope properties scale with diameter is important for selection:

Comparison: Polyester vs. Alternative Materials

Weight Comparison Across Diameters

Key Insight: Polyester ropes are approximately 25% heavier than polypropylene ropes of the same diameter. This weight difference is offset by the superior durability and extended service life of polyester.

International Standards Compliance

ISO 1209: Polyester and Polyolefin Fiber Ropes

ISO 1209 is the primary international standard governing synthetic fiber ropes for marine applications. The multifilament polyester mooring rope complies with all ISO 1209 requirements:

Material Requirements:

• Polyester fiber composition and purity

• Fiber strength and elongation characteristics

• Fiber diameter and uniformity

• Fiber finish and sizing requirements

• UV stabilizer specifications

Manufacturing Requirements:

• Strand twisting specifications

• Rope laying specifications

• Rope diameter and weight tolerances

• Rope uniformity requirements

• Quality control procedures

Testing Requirements:

• Breaking load testing procedures

• Elongation testing procedures

• Diameter and weight verification

• Surface quality inspection

• UV resistance testing

Performance Specifications:

• Minimum breaking loads for each diameter

• Maximum elongation at specified loads

• UV resistance requirements

• Chemical resistance requirements

The multifilament polyester mooring ropes fully comply with all ISO 1209 requirements.

EN 1891: Safety Requirements for Rope Mooring Systems

EN 1891 is the European standard that establishes safety requirements for rope mooring systems. The polyester mooring ropes meet all EN 1891 requirements:

Safety Factor Requirements:

• Minimum 2.5:1 safety factor for normal operations

• Minimum 2.0:1 safety factor for emergency operations

• Safety factors account for rope degradation and environmental factors

Testing and Certification:

• Ropes must be tested to verify minimum breaking loads

• Test reports must be provided with each rope shipment

• Ropes must be certified by recognized testing laboratories

Material Requirements:

• Ropes must be manufactured from materials suitable for marine environments

• Materials must resist UV radiation, saltwater, and chemical attack

• Materials must maintain consistent properties over extended service life

Inspection and Maintenance:

• Ropes must be inspected regularly for signs of damage or degradation

• Damaged ropes must be replaced immediately

• Maintenance procedures must follow manufacturer recommendations

The polyester mooring ropes exceed all EN 1891 requirements.

ISO 1419: Resistance of Textiles to Acids and Alkalis

ISO 1419 specifies testing procedures for evaluating the chemical resistance of textile fibers. The polyester mooring ropes are tested according to this standard to verify:

• Resistance to common acids (sulfuric acid, hydrochloric acid, etc.)

• Resistance to common bases (sodium hydroxide, ammonia, etc.)

• Resistance to saltwater and marine environments

• Resistance to industrial chemicals and oils

The polyester fiber structure provides superior chemical resistance, making it ideal for maritime applications.

ASTM G154: Accelerated Weathering Test (Fluorescent UV and Condensation)

ASTM G154 specifies procedures for accelerated UV exposure testing. The polyester mooring ropes are tested according to this standard to verify UV resistance:

• Ropes are exposed to 500 hours of accelerated UV radiation

• Ropes are tested for strength retention after UV exposure

• Ropes must retain at least 90% of original strength

• Testing verifies that UV stabilizers are effective

ISO 5470: Resistance of Textiles to Abrasion

ISO 5470 specifies testing procedures for evaluating the abrasion resistance of textile fibers. The polyester mooring ropes are tested according to this standard to verify:

• Resistance to surface wear from contact with deck equipment

• Resistance to fiber separation and unraveling

• Durability under high-friction conditions

• Extended service life in demanding applications

The polyester fiber structure provides superior abrasion resistance compared to alternative materials.

Regulatory Compliance

International Maritime Organization (IMO) Requirements

The International Maritime Organization establishes guidelines for maritime safety, including mooring rope specifications. The polyester mooring ropes comply with:

• SOLAS (Safety of Life at Sea): International convention establishing minimum safety standards for ships

• MARPOL (Marine Pollution Prevention): International convention for prevention of pollution from ships

• ISM Code (International Safety Management Code): International code for safe operation of ships

Classification Society Requirements

Major classification societies establish standards for ship equipment, including mooring ropes. The polyester mooring ropes meet the requirements of:

• DNV GL: Det Norske Veritas - Germanischer Lloyd

• Lloyd's Register: UK-based classification society

• ABS: American Bureau of Shipping

• ClassNK: Nippon Kaiji Kyokai (Japan)

• CCS: China Classification Society

Port Authority Requirements

Major ports worldwide establish specifications for mooring ropes. The polyester mooring ropes meet the requirements of:

• Port of Singapore: World's busiest transshipment port

• Port of Rotterdam: Europe's largest port

• Port of Shanghai: World's busiest container port

• Port of Hong Kong: Major Asia-Pacific port

• Port of Los Angeles: Major North American port

Testing and Certification

Breaking Load Testing

Every rope is tested to verify minimum breaking loads:

• Test Method: The rope is subjected to increasing tension until it breaks

• Sample Selection: Ropes are randomly selected from production batches

• Test Equipment: Calibrated testing machines with load cells accurate to ±1%

• Test Report: Detailed reports document the breaking load and elongation characteristics

• Acceptance Criteria: Ropes must meet or exceed specified minimum breaking loads

Diameter and Weight Verification

Every rope is inspected to verify diameter and weight specifications:

• Diameter Measurement: Rope diameter is measured at multiple points along the length

• Weight Verification: Rope weight per unit length is verified by weighing samples

• Tolerance Verification: Measurements are verified to be within specified tolerances

• Documentation: Inspection reports document all measurements

UV Resistance Testing

Sample ropes are tested for UV resistance:

• Test Method: Ropes are exposed to 500 hours of accelerated UV radiation

• Strength Testing: Ropes are tested for breaking load after UV exposure

• Acceptance Criteria: Ropes must retain at least 90% of original strength

• Documentation: Test reports verify UV resistance

Chemical Resistance Testing

Sample ropes are tested for chemical resistance:

• Test Method: Ropes are immersed in various chemicals for specified periods

• Strength Testing: Ropes are tested for breaking load after chemical exposure

• Acceptance Criteria: Ropes must retain at least 90% of original strength

• Documentation: Test reports verify chemical resistance

Abrasion Resistance Testing

Sample ropes are tested for abrasion resistance:

• Test Method: Ropes are subjected to standardized abrasion testing&
