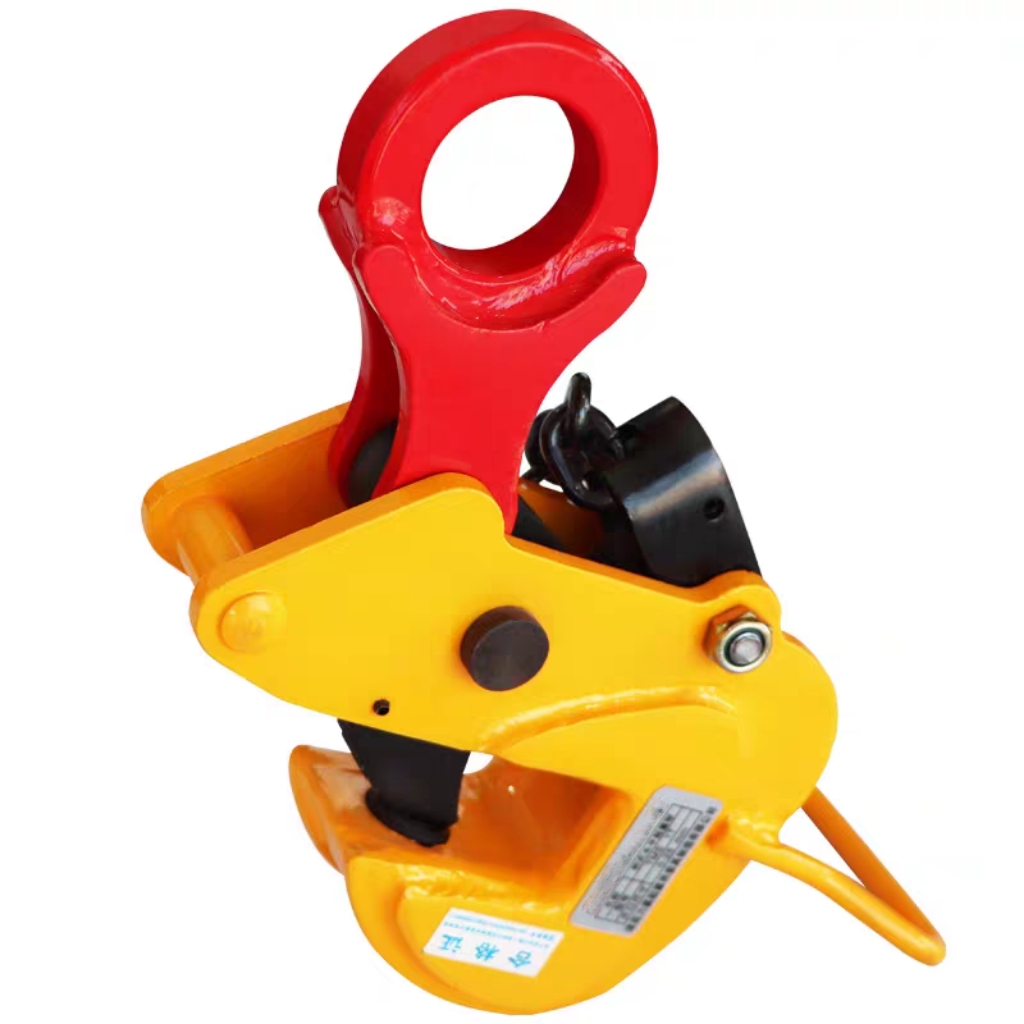

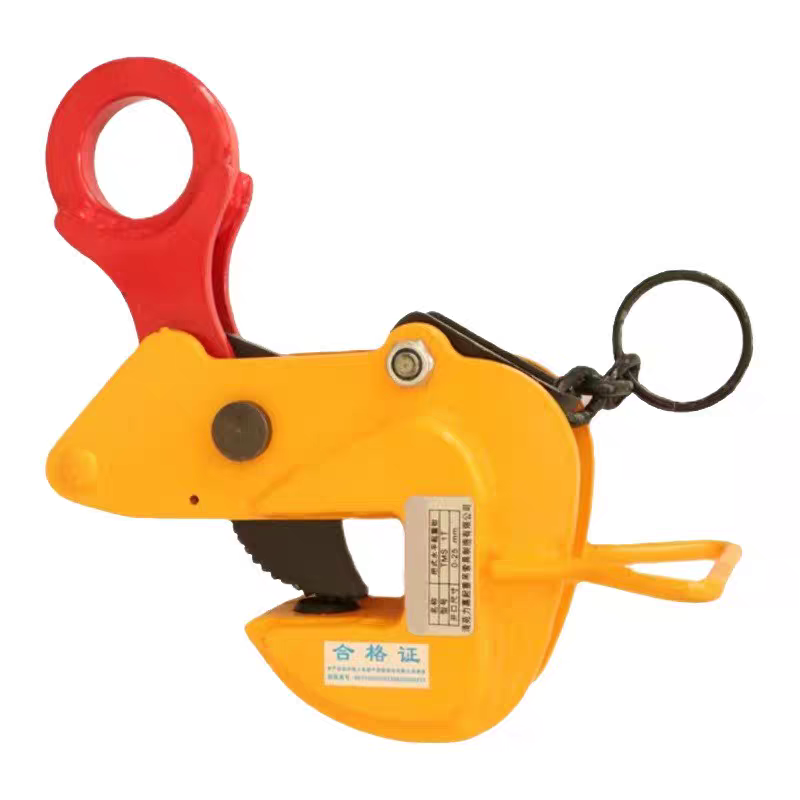

The TMS Horizontal Clamp with Locking Device by TOPONE is engineered for the safe horizontal lifting and transport of steel plates, structural bars, and construction steel components. Built from high-quality carbon steel and precision heat-treated, this clamp ensures strength, durability, and reliable performance under demanding conditions.
| Manufactured from premium carbon steel for superior strength and long service life. |
| Equipped with a spring-loaded locking mechanism that guarantees positive clamping force. |
| Compact design with anti-collision structure, ensuring safety during operations. |
| Easy-to-operate handle for quick and safe attachment and release. |
| Complies with international lifting standards for enhanced safety and reliability. |
| Model | WLL | A | B | C | H | Recommended A | Recommended B | Weight |
| (tonnes) | (mm) | (mm) | (kg) | |||||
| TMS1 | 1 | 280 | 236 | 211 | 115 | 80-146 | 64-140 | 14 |
| TMS2 | 2 | 318 | 273 | 236 | 130 | 80-168 | 76-165 | 16 |
| TMS3 | 3 | 340 | 320 | 295 | 164 | 88-168 | 76-203 | 24 |
| TMS5 | 5 | 365 | 366 | 334 | 177 | 100-170 | 88-203 | 36 |
| TMS10 | 10 | 410 | 389 | 460 | 237 | 122-203 | 125-203 | 90 |
