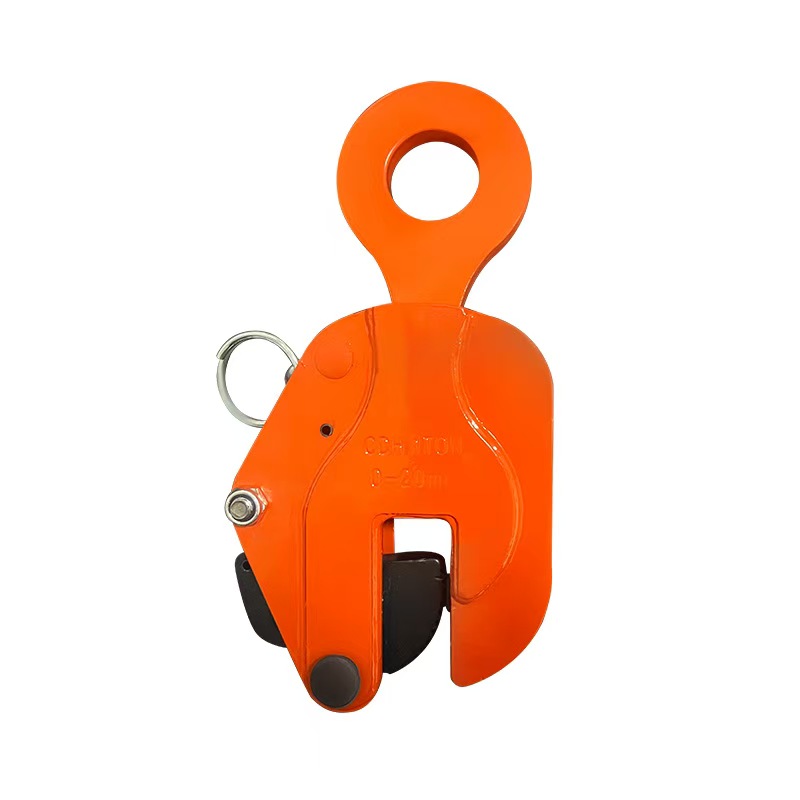

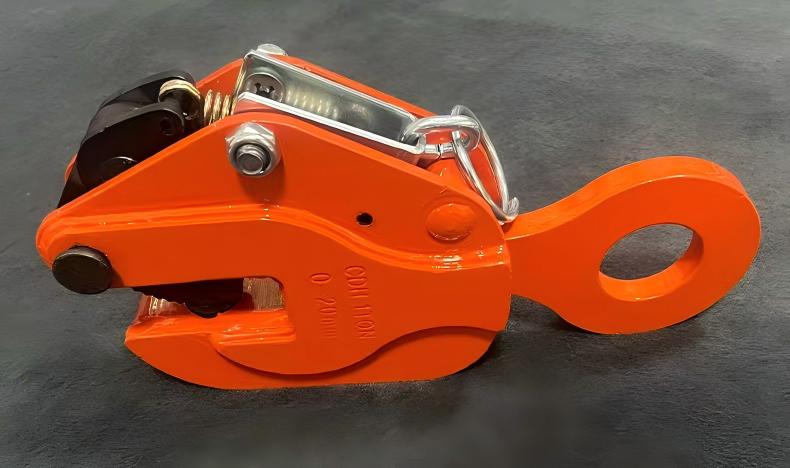

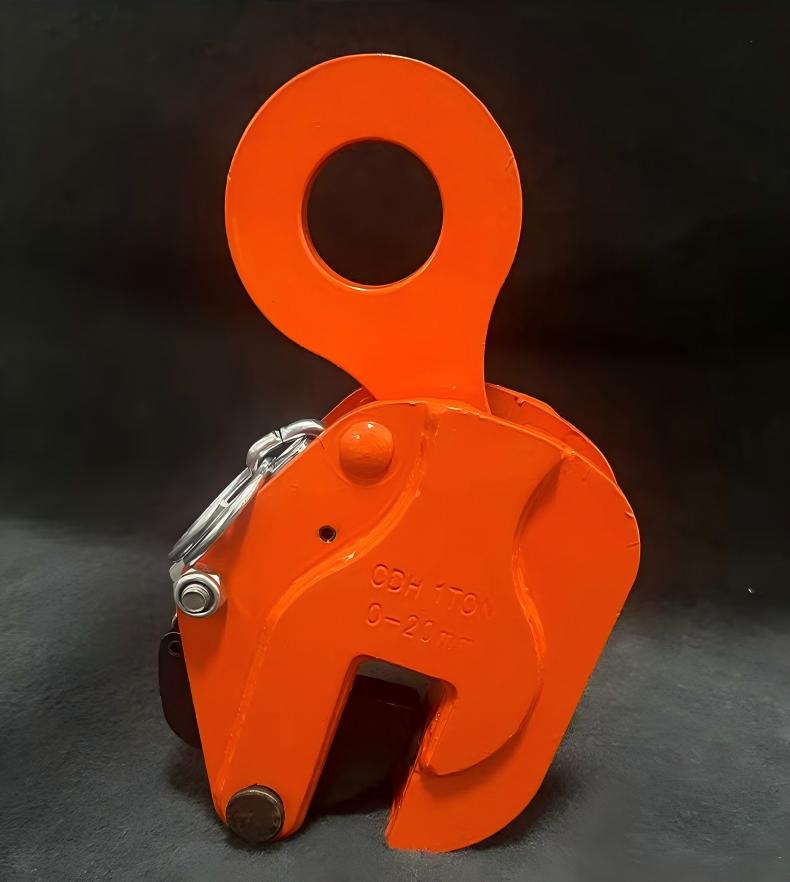

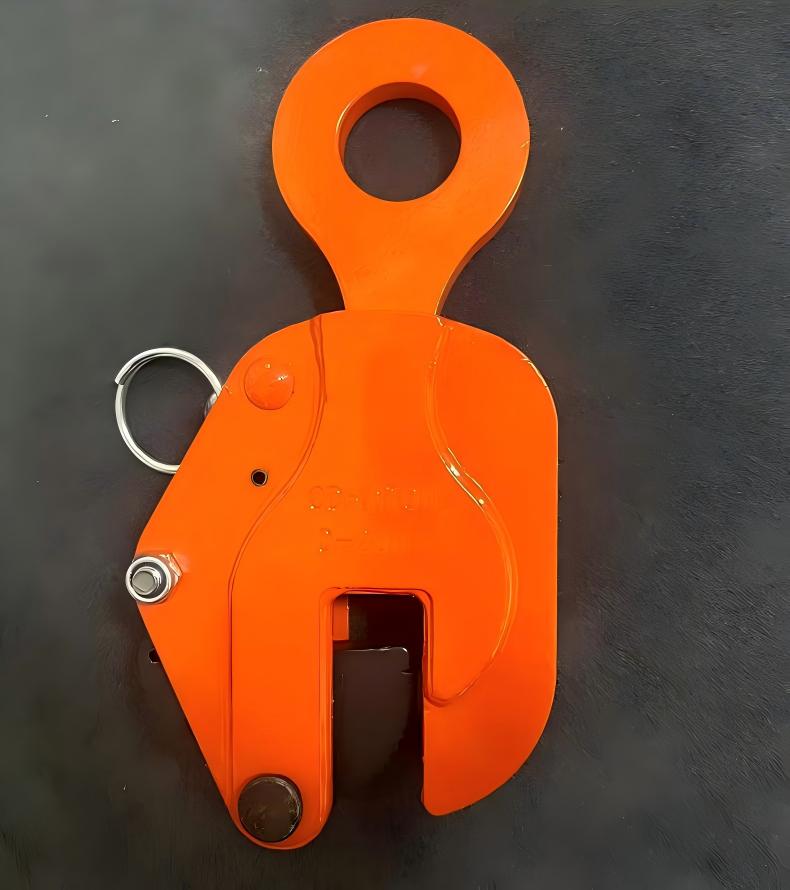

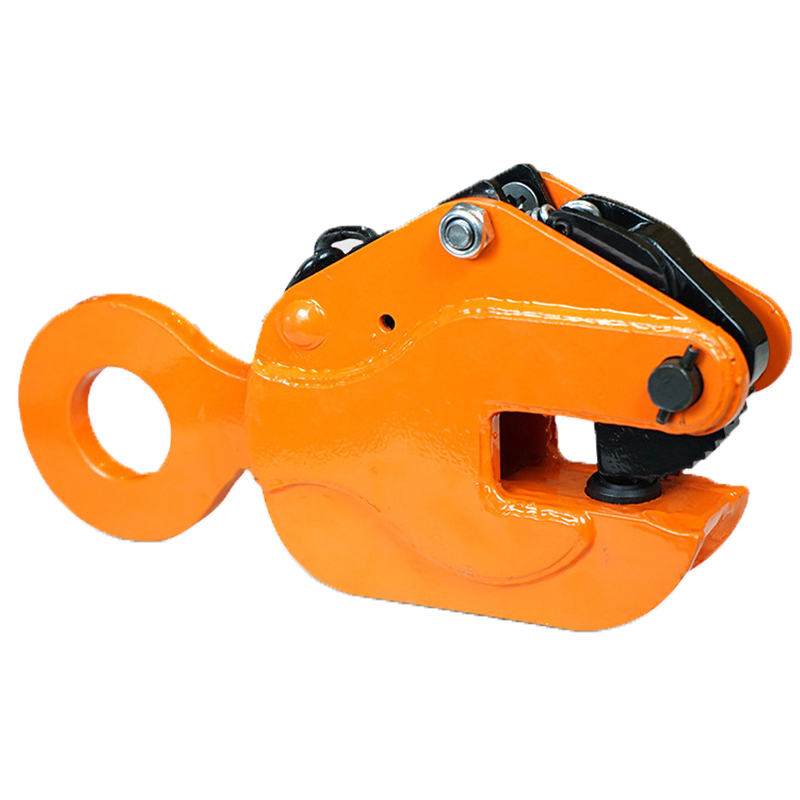

The CDH Vertical Plate Clamp from TOPONE is designed for safe vertical lifting of single steel plates. With spring-loaded tightening and die-forged steel construction, it provides superior strength and safety.
| Working Load Limit (WLL): 0.8 – 16T |
| Suitable for vertical lifting of steel plates and beams. |

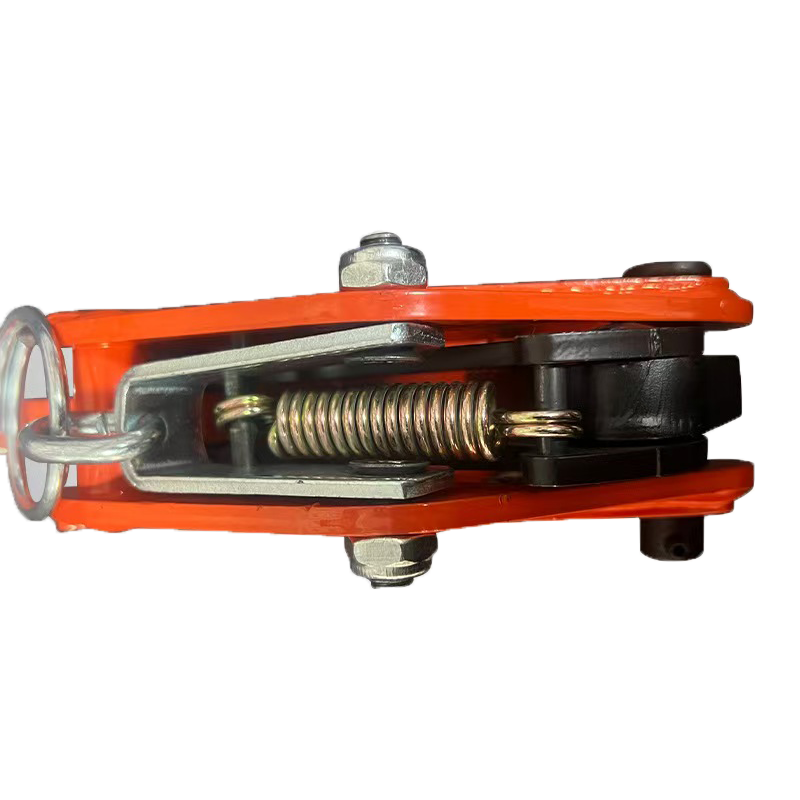

| Spring-loaded lock to prevent slips. |
| Lock engaged whether open or closed. |
| Die-forged alloy steel body with hardened cam for long service life. |
| Model | Combined Rated Load of Two Units (t) | Opening Diameter (mm) | Net Weight (kg) |
| CDH1 | 1 | 0-20 | 5.2 |
| CDH2 | 2 | 0-30 | 7.3 |
| CDH3 | 3 | 0-35 | 10 |
| CDH5 | 5 | 0-50 | 16.5 |
| CDH8 | 8 | 0-60 | 25.5 |
