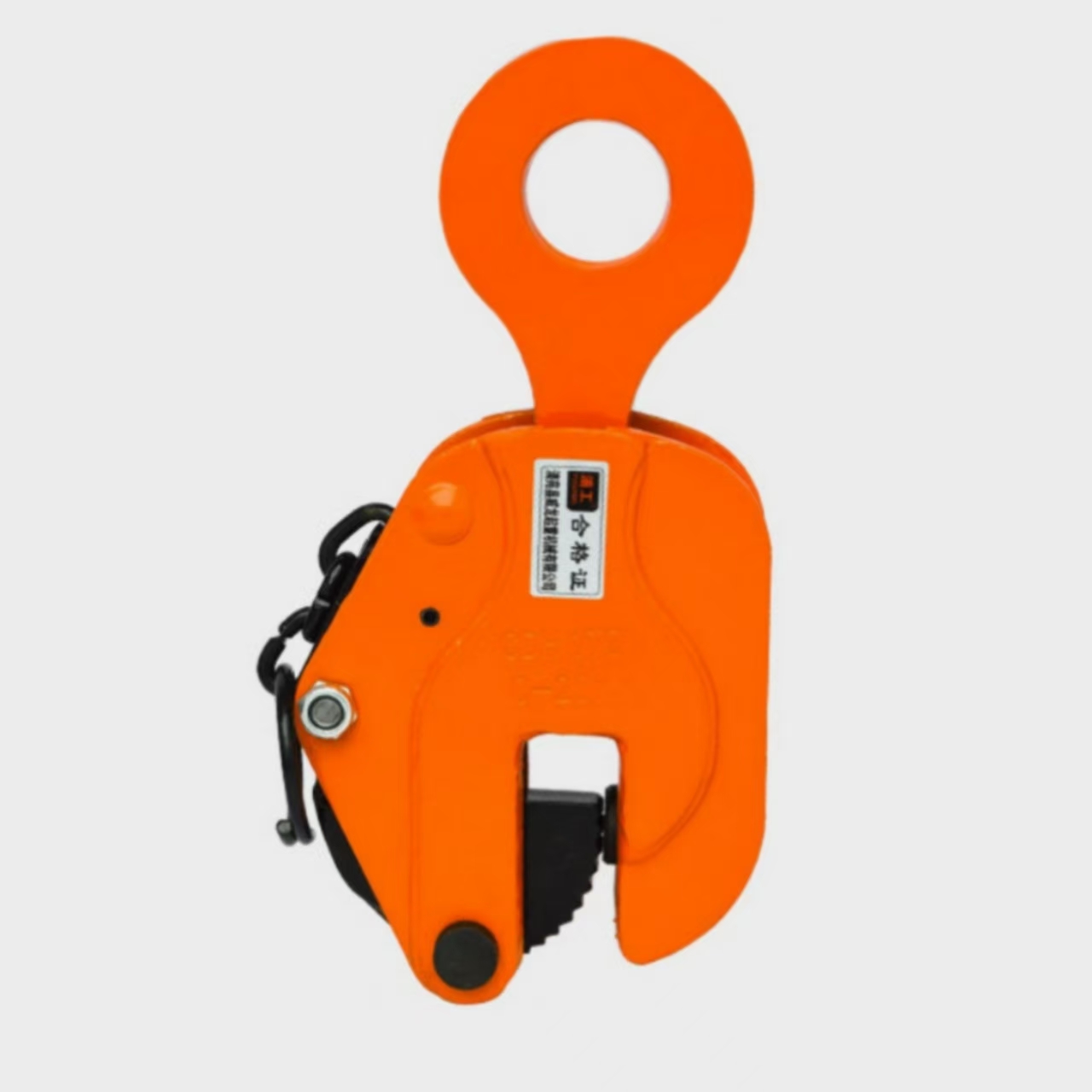

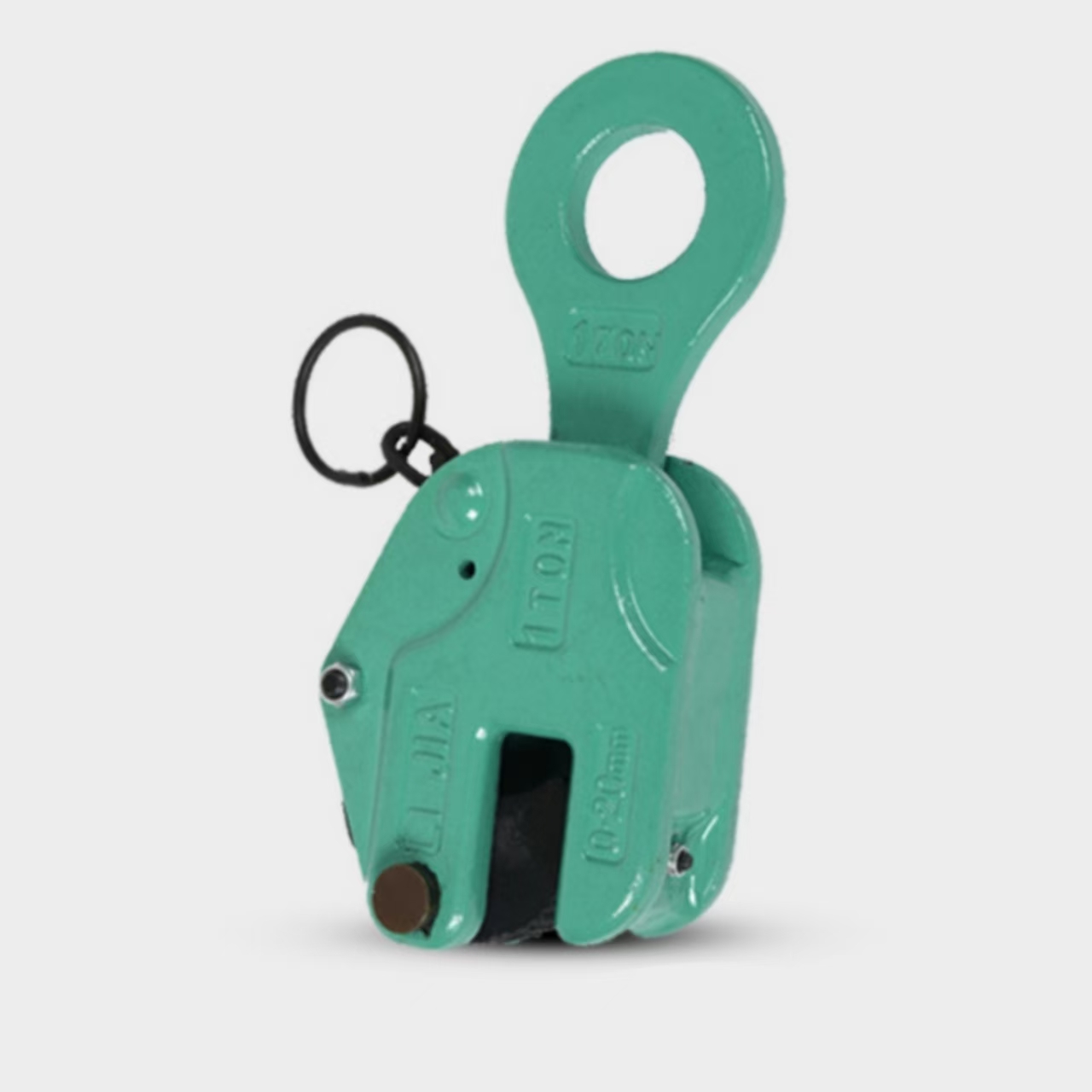

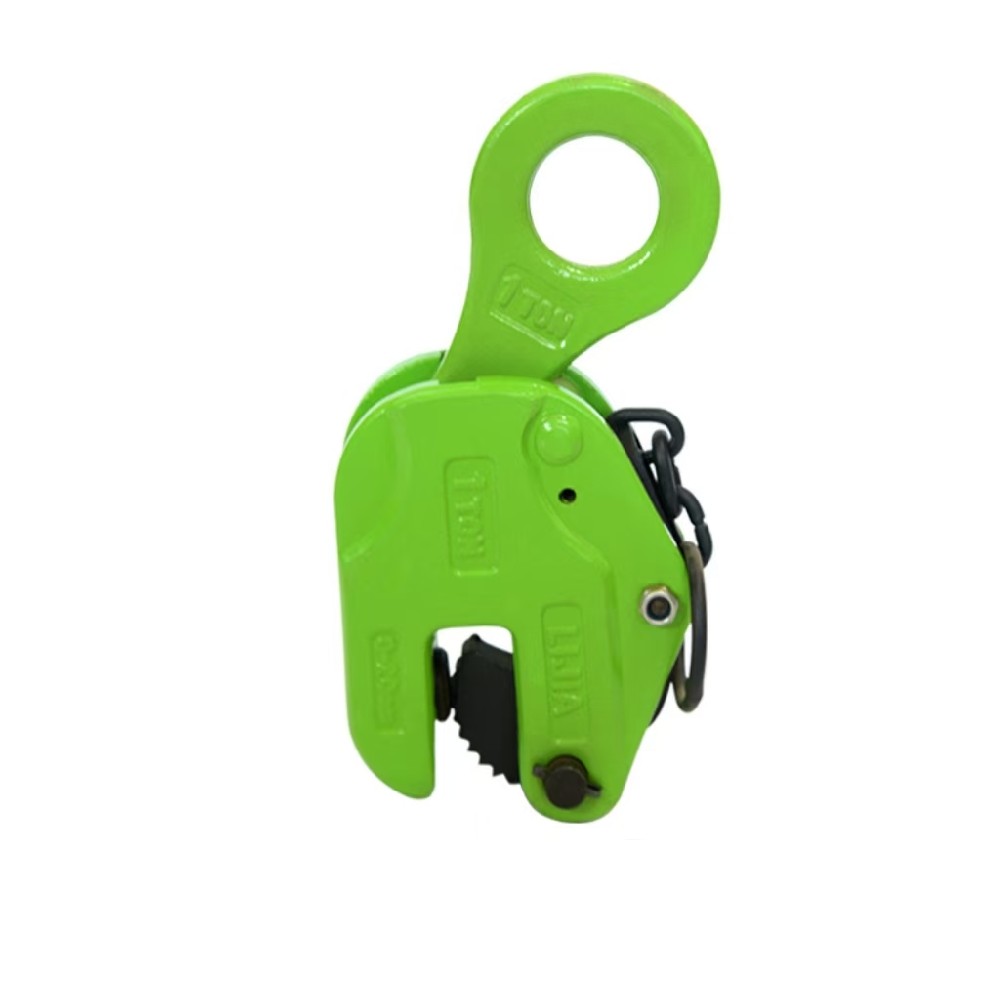

The SCDH Vertical Plate Clamp by TOPONE is a standard clamp for vertical lifting of steel plates and steel structures. With die-forged alloy steel construction and a spring-loaded lock, it ensures maximum strength and safety.
| Working Load Limit (WLL): 1 – 5T |
| For vertical lifting of steel plates and beams. |
| Spring-loaded tightening device prevents slip. |
| Die-forged alloy steel body for durability. |
| Cam with high-frequency quenching for extended life. |
| Model | Combined Rated Load of 4 Units (t) | Opening Diameter (mm) | Net Weight (kg) |
| SCDH1 | 1 | 0-20 | 4.2 |
| SCDH2 | 2 | 0-30 | 6.2 |
| SCDH3 | 3 | 0-35 | 9.3 |
| SCDH5 | 5 | 0-50 | 12.3 |
