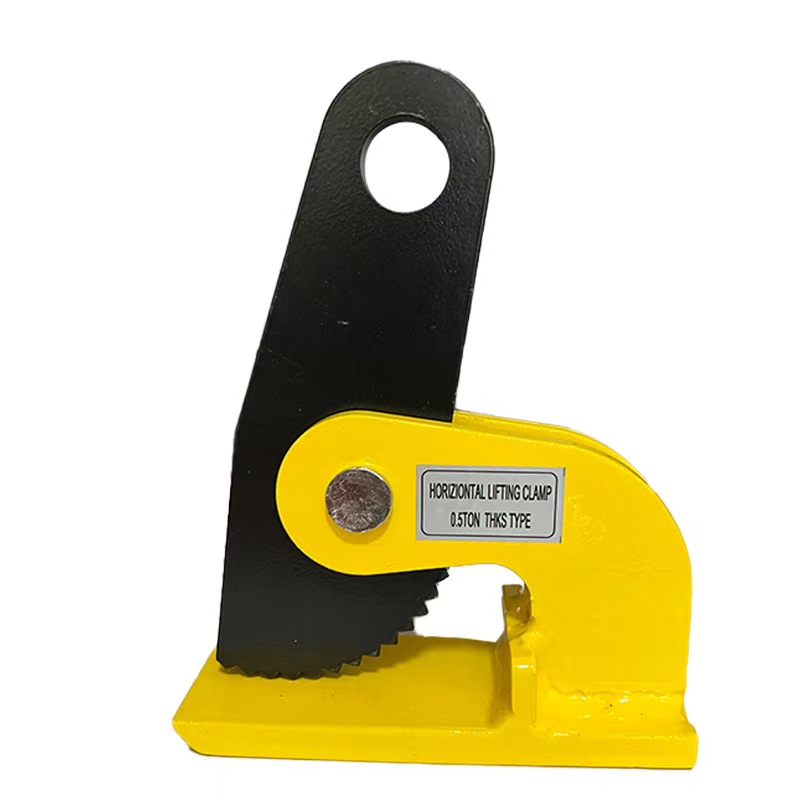

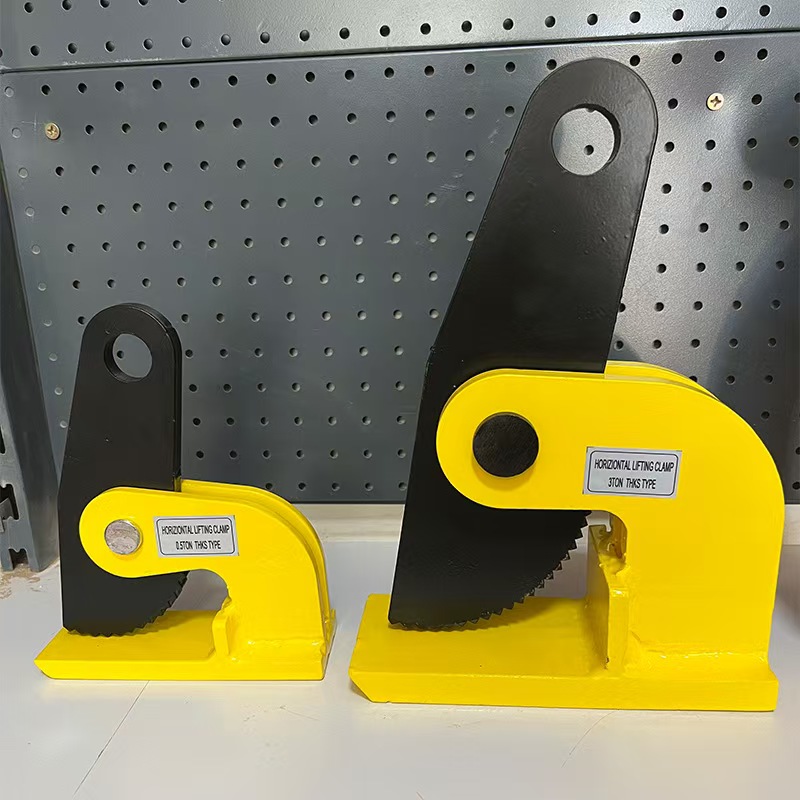

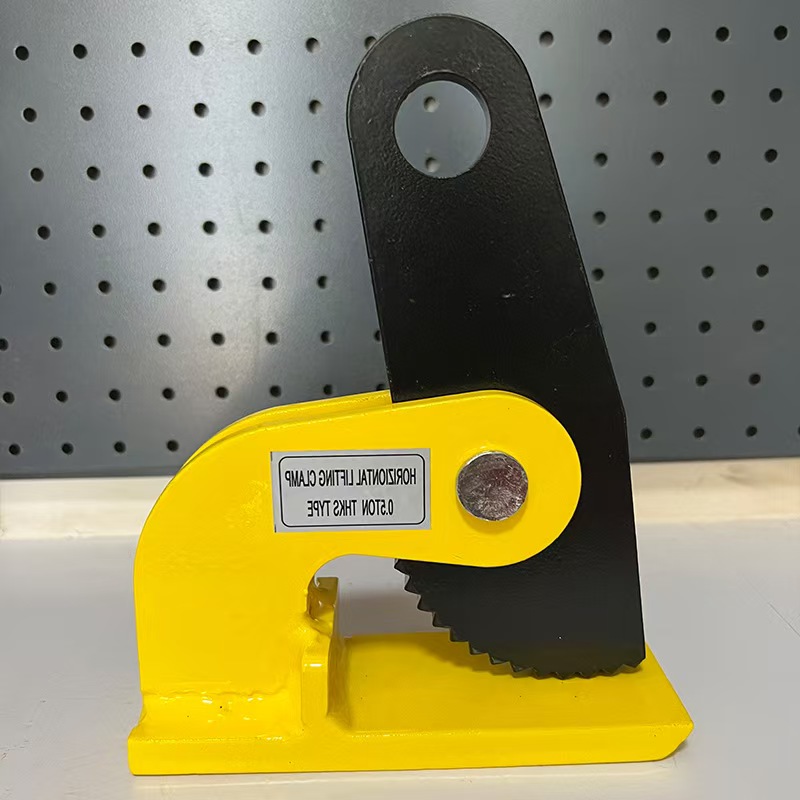

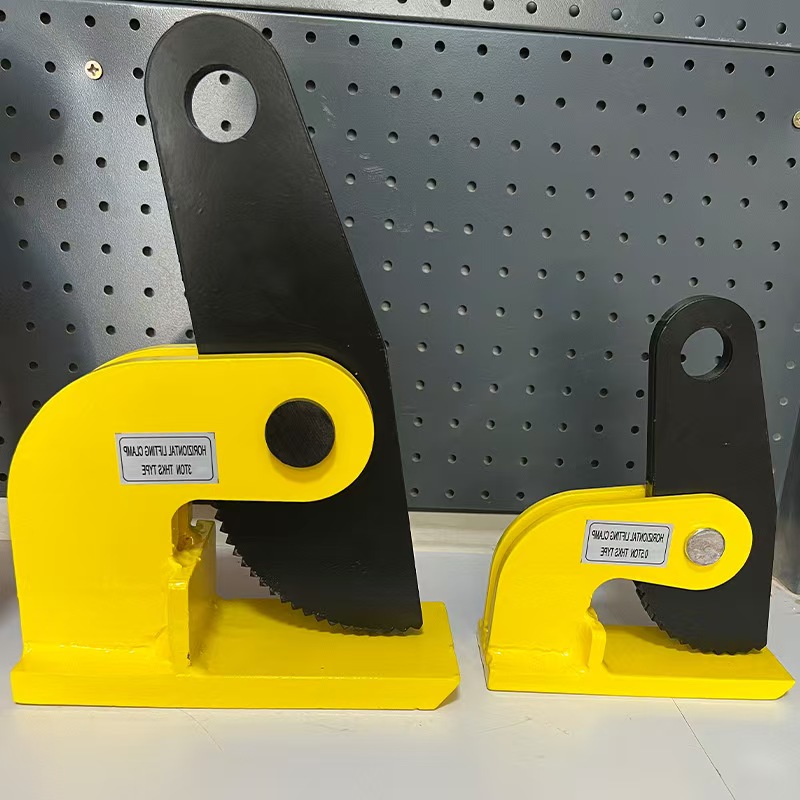

The THK/THKS Horizontal Plate Clamp is specially designed by TOPONE to handle thin steel sheets that are prone to sagging when lifted. Featuring a reversed jaw pivot and lightweight body, this clamp provides secure and stable lifting performance for thin or flexible plates.
Working Load Limit (WLL): 1 – 10T
Ideal for horizontal lifting of steel sheets and thin plates.
Compact and lightweight design with high lifting capacity.
THK model offers an enlarged jaw opening for greater versatility.
Must always be used in pairs (or multiples) to ensure safety and balance.
Durable forged steel construction for long-term use in industrial environments.
| Model | WLL (tonnes) | Jaw Opening ( mm) | Weight ( kg) | |||
| THKS0.5 | 0.5 | 0-35 | 2.4 | |||
| THKS1 | 1.0 | 0-60 | 6 | |||
| THKS1.5 | 1.5 | 0-60 | 6.5 | |||
| THKS2 | 2.0 | 0-60 | 7.5 | |||
| THKS3 | 3.0 | 0-60 | 10 | |||
| THKS4 | 4.0 | 0-60 | 11.5 | |||
| THKS5 | 5.0 | 0-60 | 15.5 | |||
| THKS10 | 10.0 | 0-60 | 23 | |||
| THK1 | 1.0 | 0-100 | 7 | |||
| THK1.5 | 1.5 | 0-100 | 7.5 | |||
| THK2 | 2.0 | 0-100 | 9.5 | |||
| THK3 | 3.0 | 0-100 | 12 | |||
| THK4 | 4.0 | 0-100 | 14.5 | |||
| THK5 | 5.0 | 0-100 | 20 | |||
| THK10 | 10.0 | 0-100 | 28 | |||
