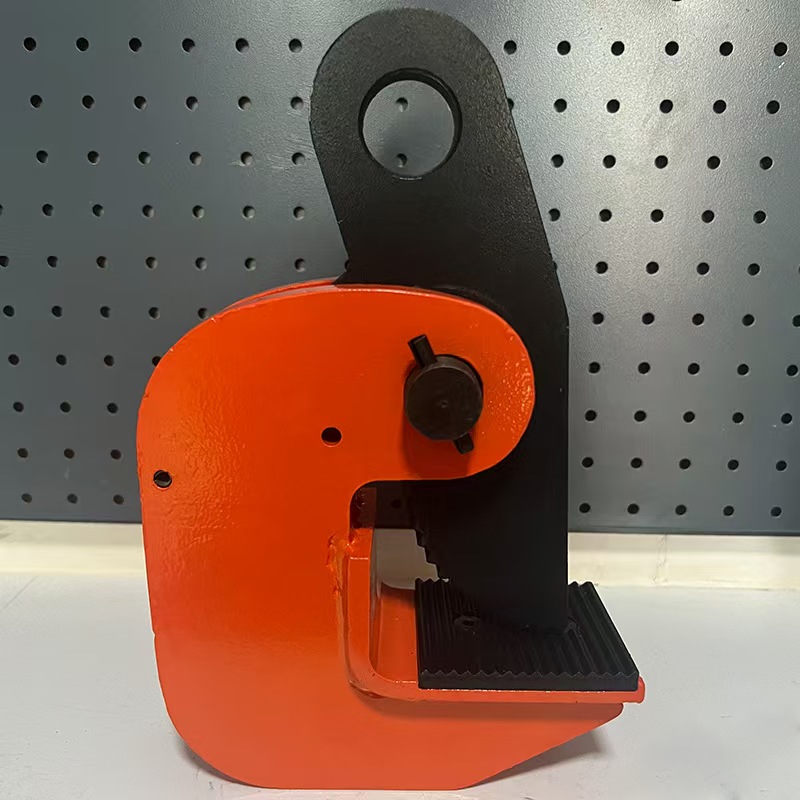

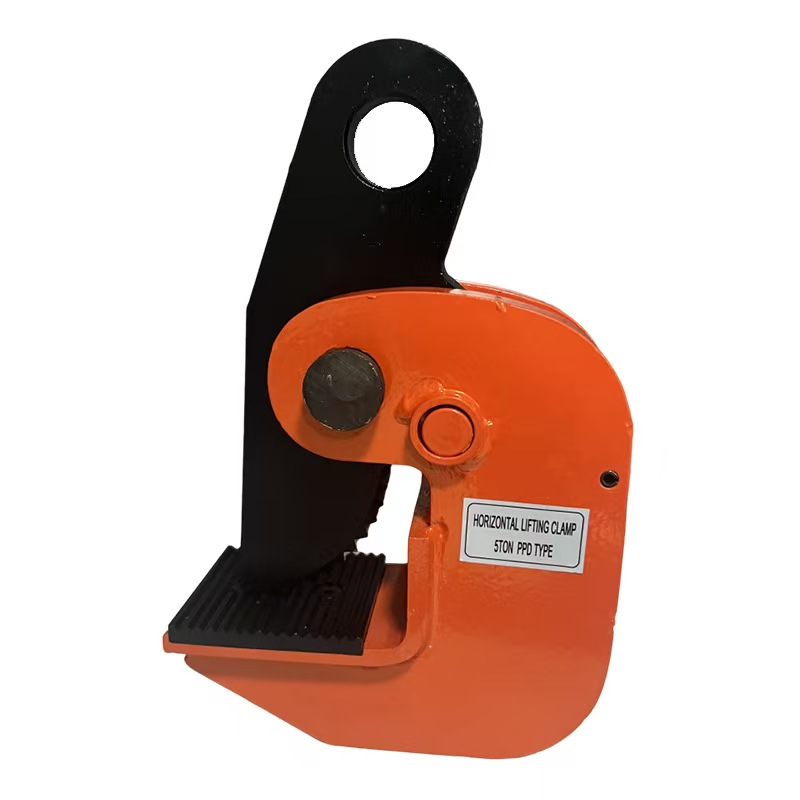

The PPD Horizontal Plate Clamp from TOPONE delivers safe and efficient lifting of steel plates in a horizontal position. Manufactured with precision-forged carbon steel, it combines strength with ease of operation, making it suitable for workshops, factories, and construction projects.
Working Load Limit (WLL): 0.8 – 10T
Designed for lifting and transporting steel plates horizontally.
Made of high-quality carbon steel with reliable durability.
Safety release button allows for easy detachment after lifting.

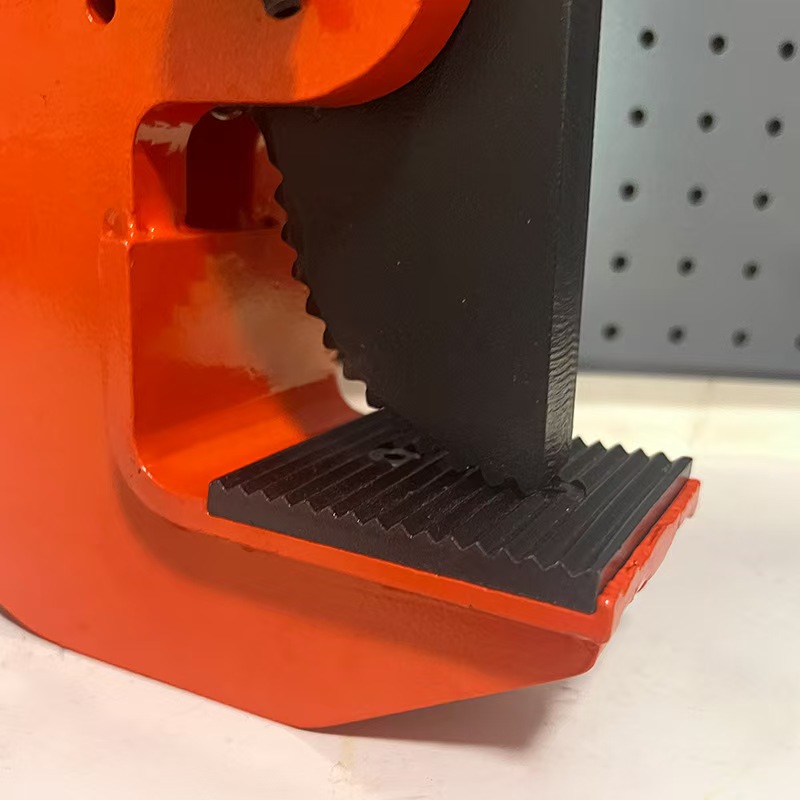

Replaceable jaw plate design for extended service life.
No collision or slipping when clamp is loaded.
| Model | WLL | Jaw Opening | Weight |
| (tonnes) | (mm) | (kg) | |
| PPD0.8 | 0.8 | 0-25 | 2.5 |
| PPD1 | 1.0 | 0-30 | 3.5 |
| PPD1.6 | 1.6 | 0-30 | 4 |
| PPD2 | 2.0 | 0-40 | 5 |
| PPD3.2 | 3.2 | 0-45 | 6 |
| PPD5 | 5.0 | 0-50 | 7.5 |
| PPD8 | 8.0 | 0-80 | 10.5 |
| PPD10 | 10.0 | 0-120 | 33 |
| PPD16 | 16.0 | 50-150 | 50 |
| PPD30 | 30.0 | 100-270 | 108 |
