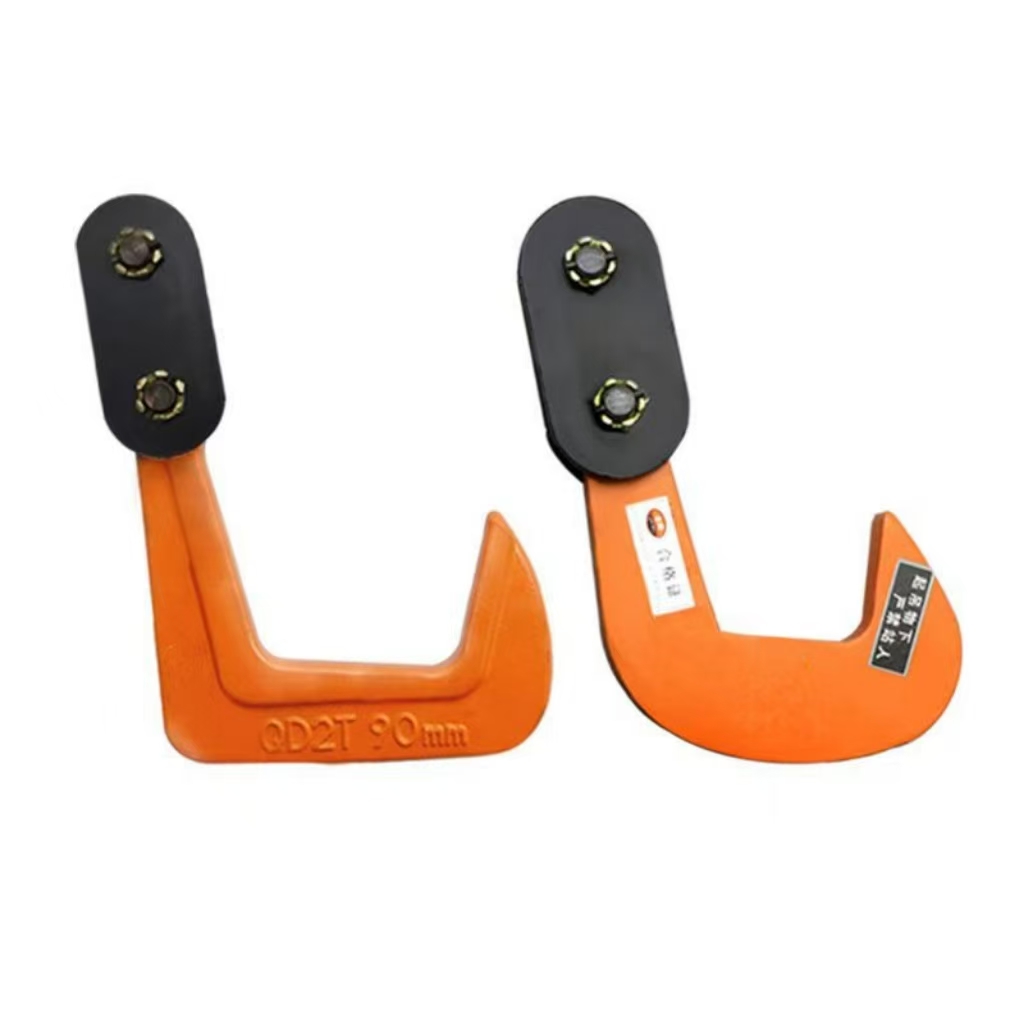

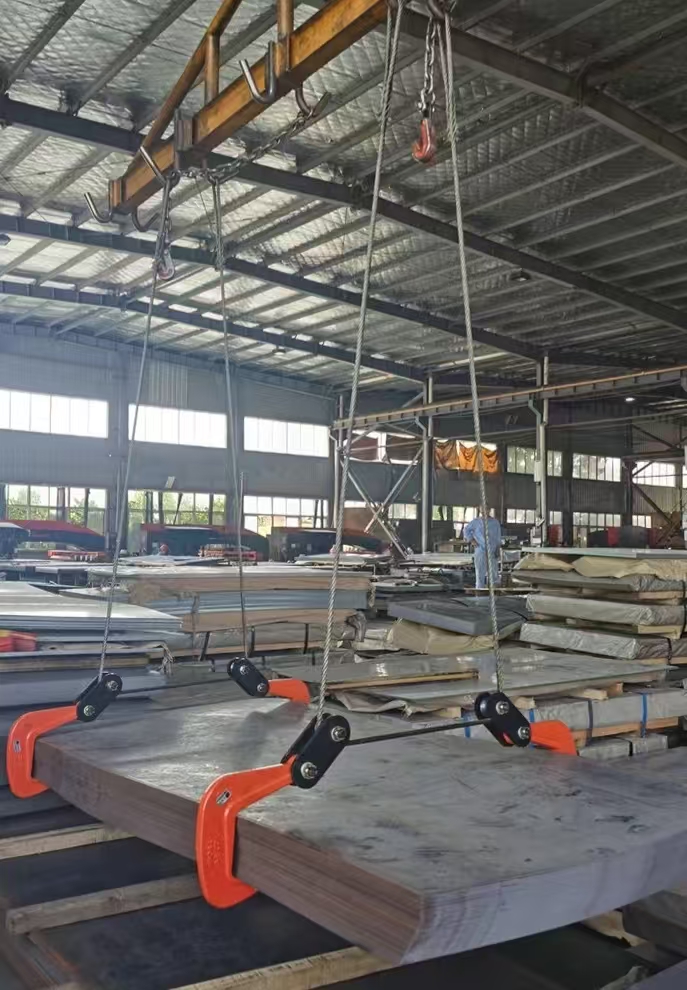

The PDQ Single Steel Plate Clamp by TOPONE is ideal for horizontal lifting or overturning of one or multiple steel plates. With automatic unloading and roller protection, it ensures safety and efficiency.
| Working Load Limit (WLL): 1 – 10T |
| For lifting single or multiple steel plates. |
| Premium carbon steel body. |
| Designed with roller top to protect wire rope. |
| Automatic unloading for efficiency. |
| Must be used with beams and in pairs. |
| Model | Maximum Working Load (t) | Opening Size (mm) | Net Weight (kg) |
| PDQ1 | 1 | 0～50 | 3 |
| PDQ2 | 2 | 0～60 | 5 |
| PDQ3.2 | 3.2 | 0～90 | 12 |
| PDQ5 | 5 | 0~120 | 17 |
| PDQ8 | 8 | 0~130 | 25 |
| PDQ12 | 12 | 0~150 | - |
