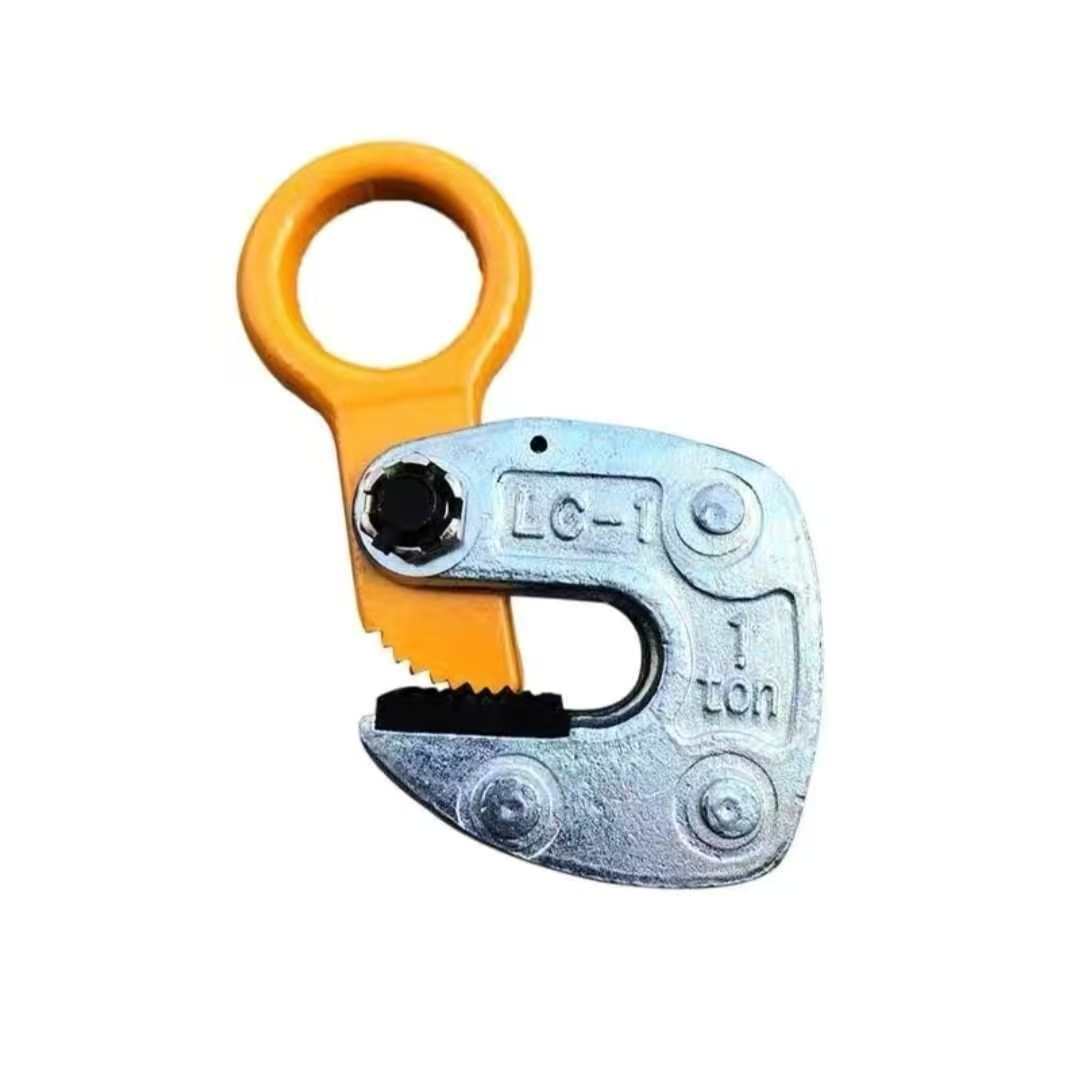

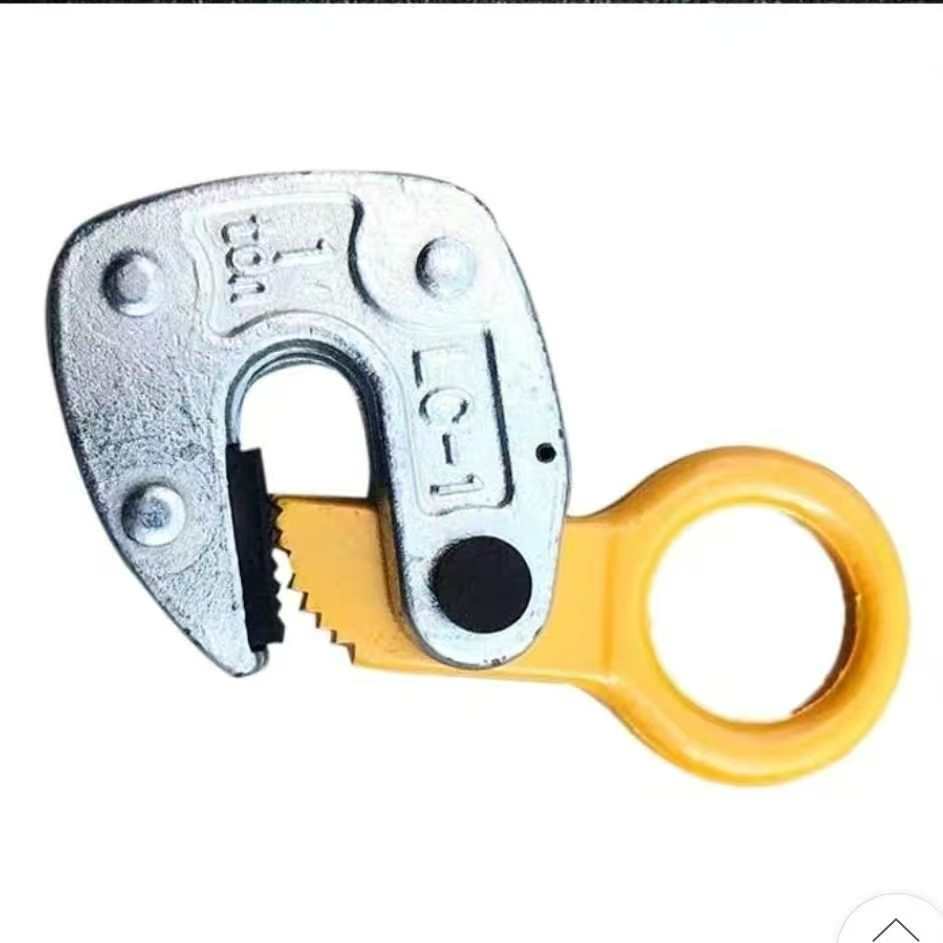

The LC Horizontal Plate Clamp by TOPONE is suitable for lifting structured steel including H, I, T, and L sections. Made from die-forged alloy steel, it ensures strength, lightweight handling, and ease of use.
Working Load Limit (WLL): 1 – 3T
Optimized for lifting structured steel sections.
Made of die-forged alloy steel with heat treatment.
Compact and lightweight design.
Simple to operate, safe, and efficient.

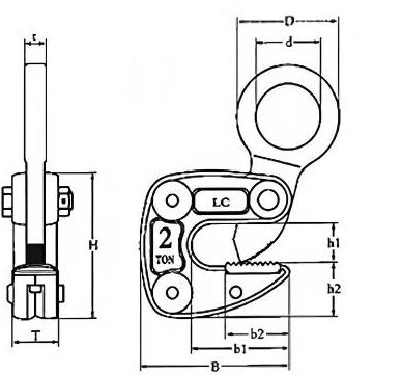

| Model | Rated Lifting Capacity (t) | Jaw Width (mm) | Main Dimensions (mm) | Net Weight | ||||||||||||
| L | t | T | H | h1 | h2 | B | b1 | b2 | D | d | (kg) | |||||
| LC1 | 1 | 1~13 | 166 | 12 | 32 | 100 | 22 | 36 | 102 | 64 | 42 | 70 | 46 | 2.1 | ||
| LC2 | 2 | 3~22 | 235 | 16 | 40 | 132 | 33 | 46 | 130 | 84 | 56 | 92 | 56 | 4.7 | ||
| LC3 | 3 | 12~35 | 276 | 18 | 44 | 178 | 40 | 55 | 172 | 92 | 70 | 82 | 42 | 8.4 | ||
