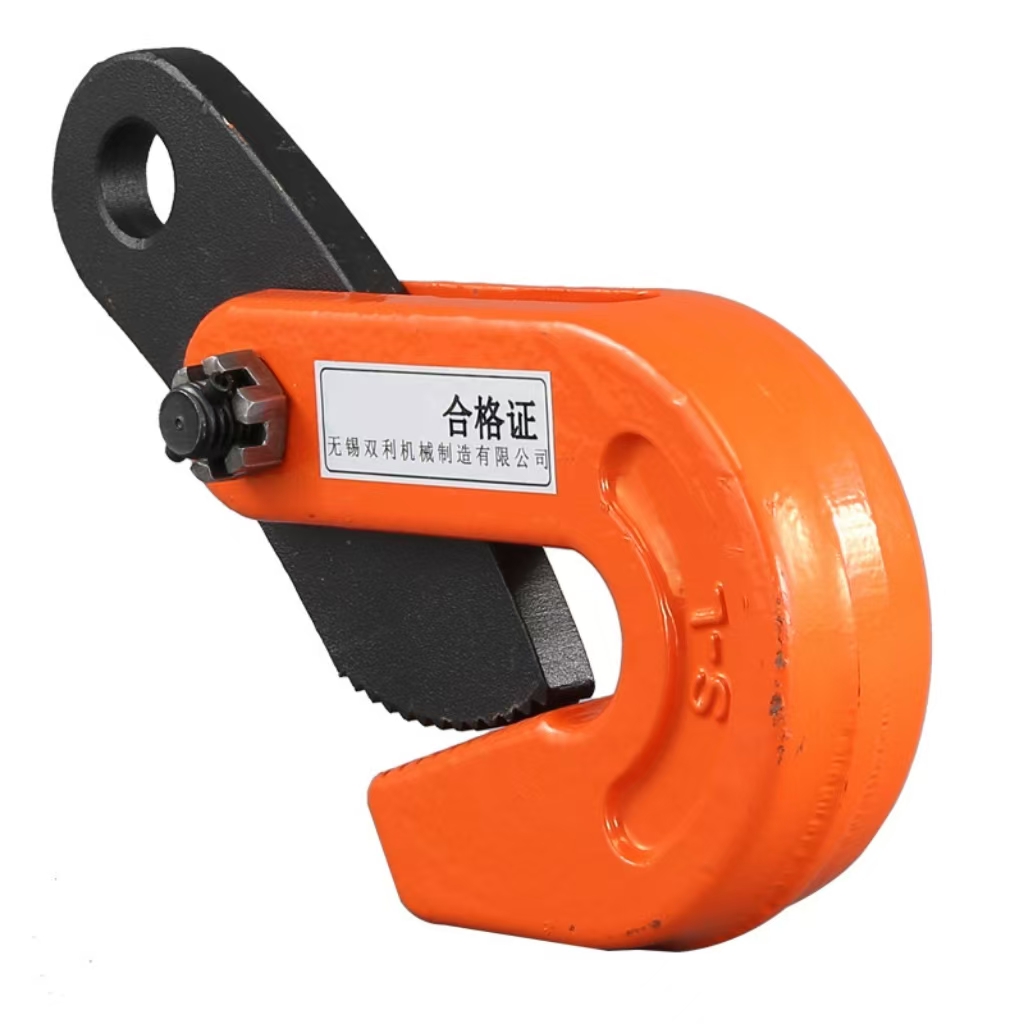

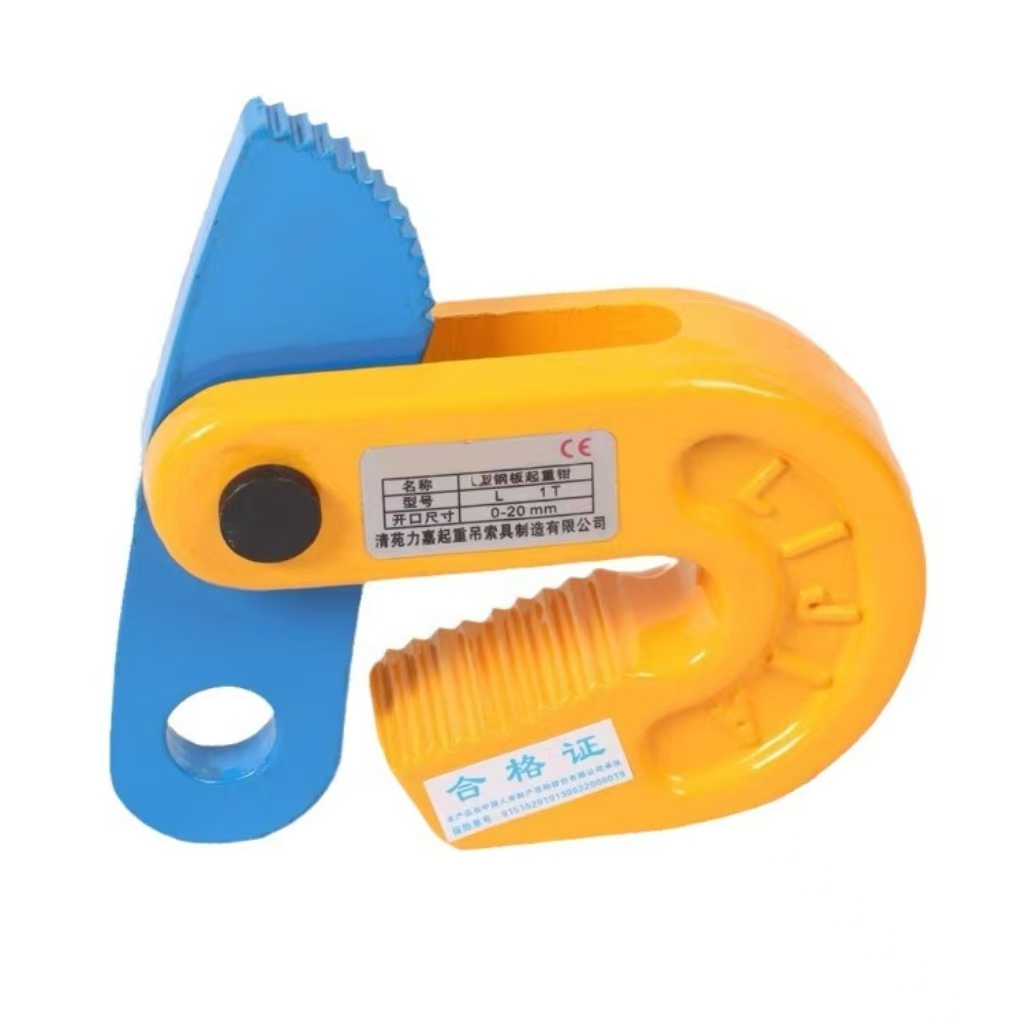

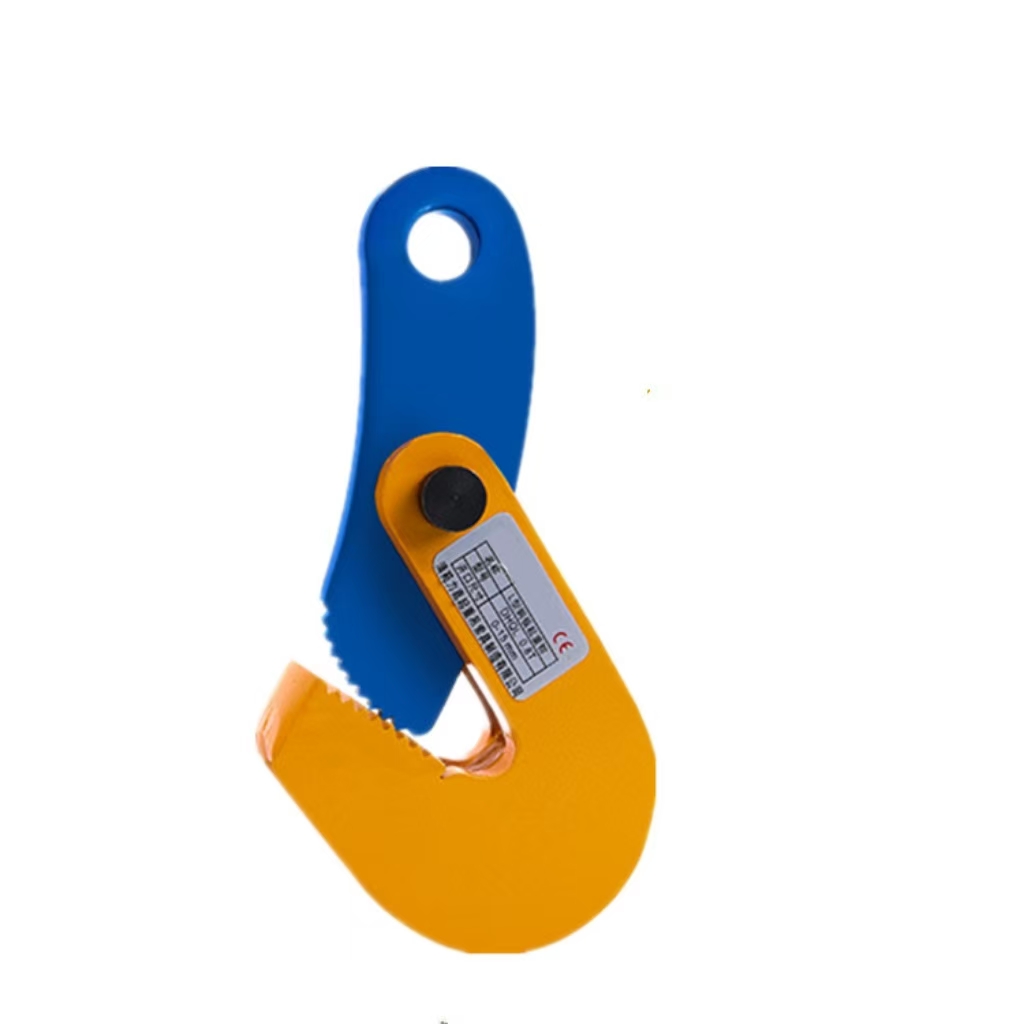

The LA Horizontal Plate Clamp by TOPONE is built for horizontal lifting and transport of steel plates and profiled bars. Combining carbon steel construction with user-friendly design, it offers safe and effective performance.
| Working Load Limit (WLL): 1 – 10T |
| For horizontal lifting of plates and structural steel. |
| Constructed from high-quality carbon steel. |
| Lightweight and easy to use. |
| Anti-collision safety ensured during lifting. |
| Model | Rated Lifting Capacity | Opening size | Weight |
| 0.8 | 0.8T | 0~15mm | 2kg |
| 1 | 1T | 0~20mm | 4kg |
| 1.6 | 1.6T | 0~25mm | 6.5kg |
| 2.5 | 2.5T | 0~30mm | 11kg |
| 3.2 | 3.2T | 0~40mm | 12.5kg |
| 5 | 5T | 0~50mm | 19kg |
| 5 | 5T | 50~80mm | 20kg |
| 10 | 10T | 20~100mm | 43kg |
