Grade 80 Weld-on Ring close left right

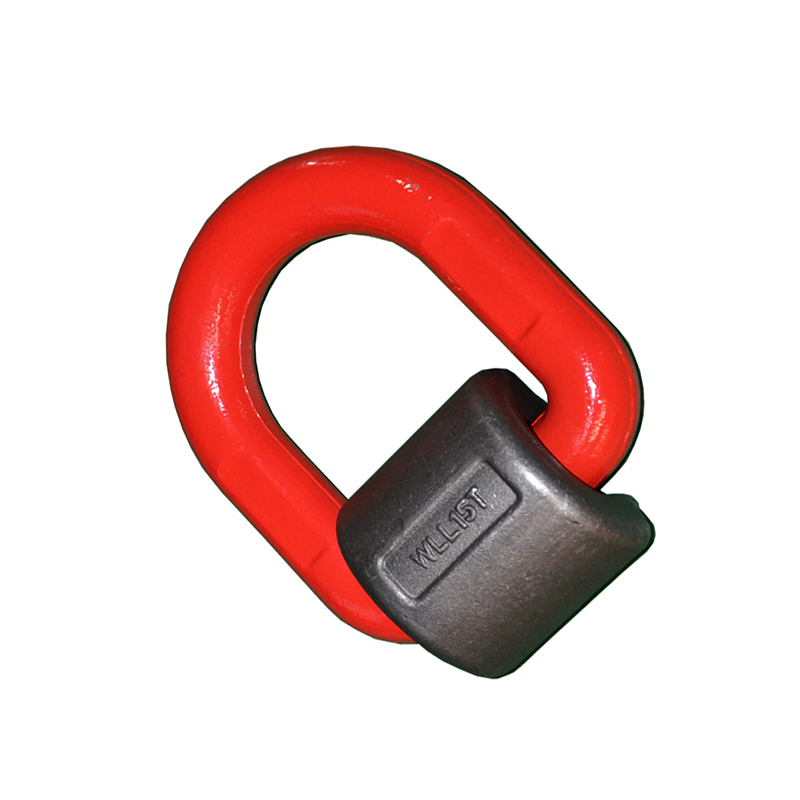

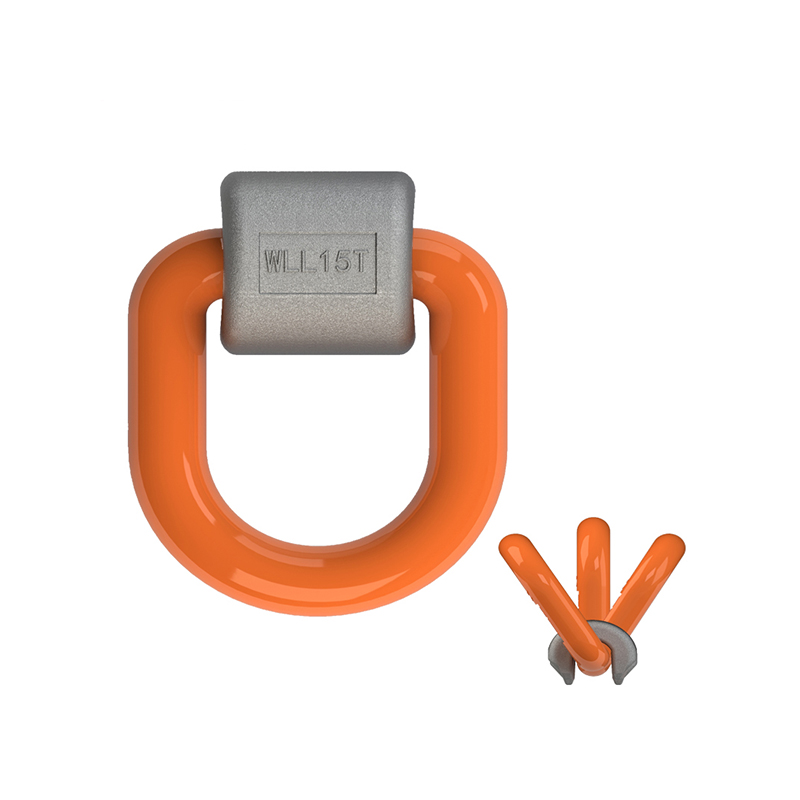

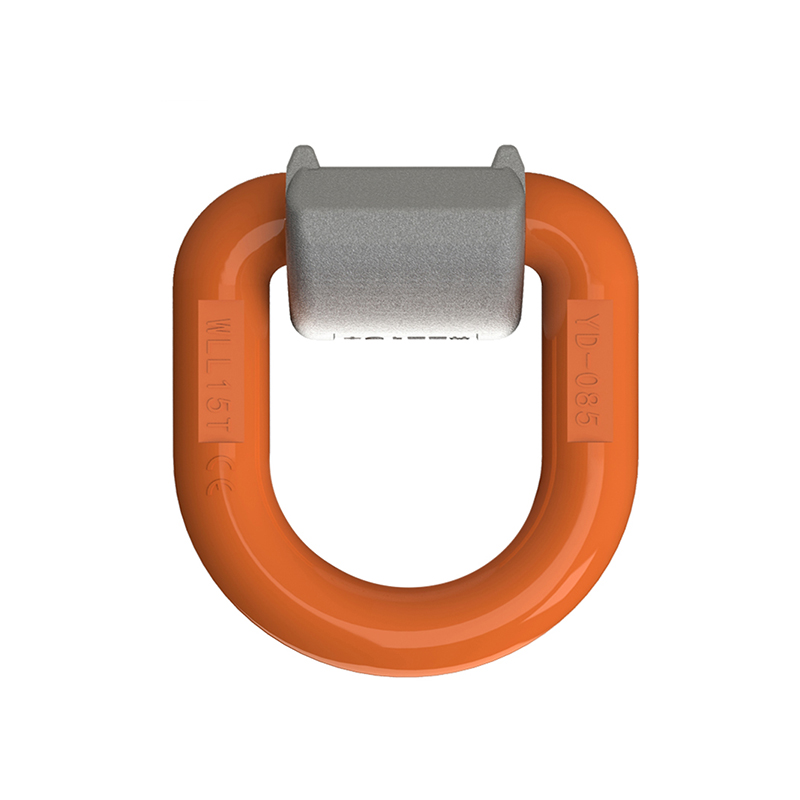

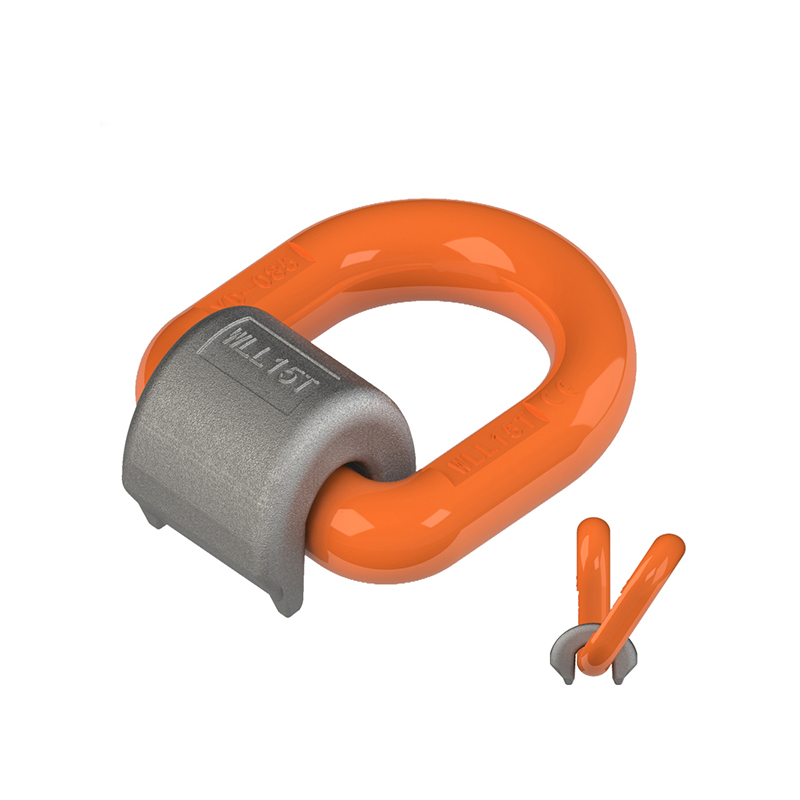

Grade 80 Weld-on Ring

Grade 80 Weld-on Ring
Introduction
Parameter
Grade 80 Weld on RingGrade 80 Weld on Ring 1

Working
Load Limit
lbs.
Dimensions (inch) Weight
D F H K L R W
2,200 0.55 1.06 2.24 1.57 4.29 1.97 1.97 1.1
6,600 0.67 1.22 2.09 1.89 4.49 2.28 2.28 2.0
11,000 0.87 1.61 3.03 2.48 6.18 2.52 2.52 2.9
17,000 1.05 2.13 2.72 2.87 6.65 2.40 2.40 5.7
22,000 1.18 2.13 3.46 2.87 7.52 2.95 2.95 6.2
Standards

Name: Grade 80 Weld-on Ring

Package: Carton + Steel Pallet
