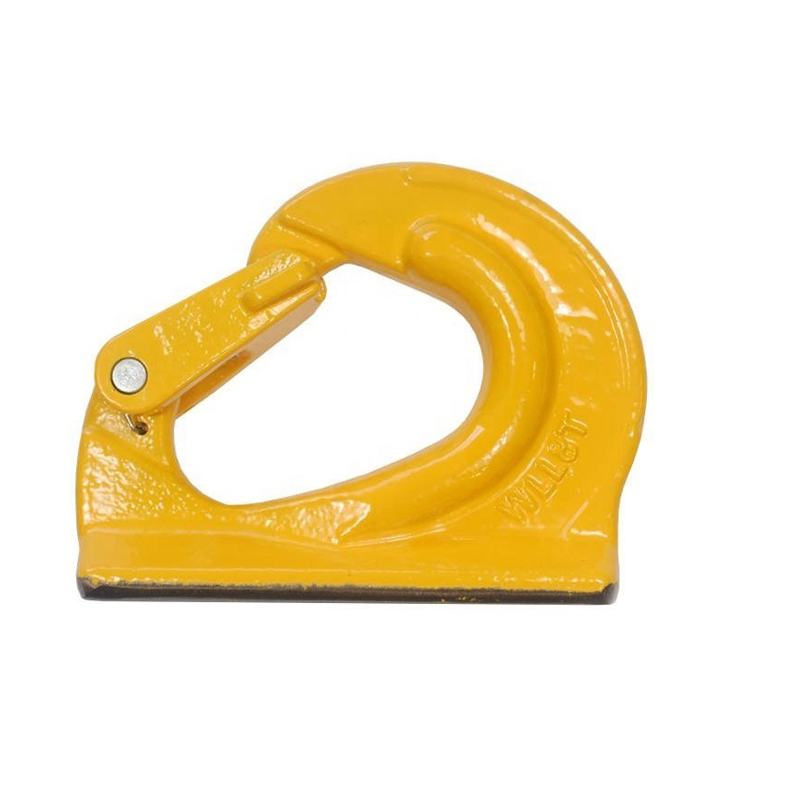

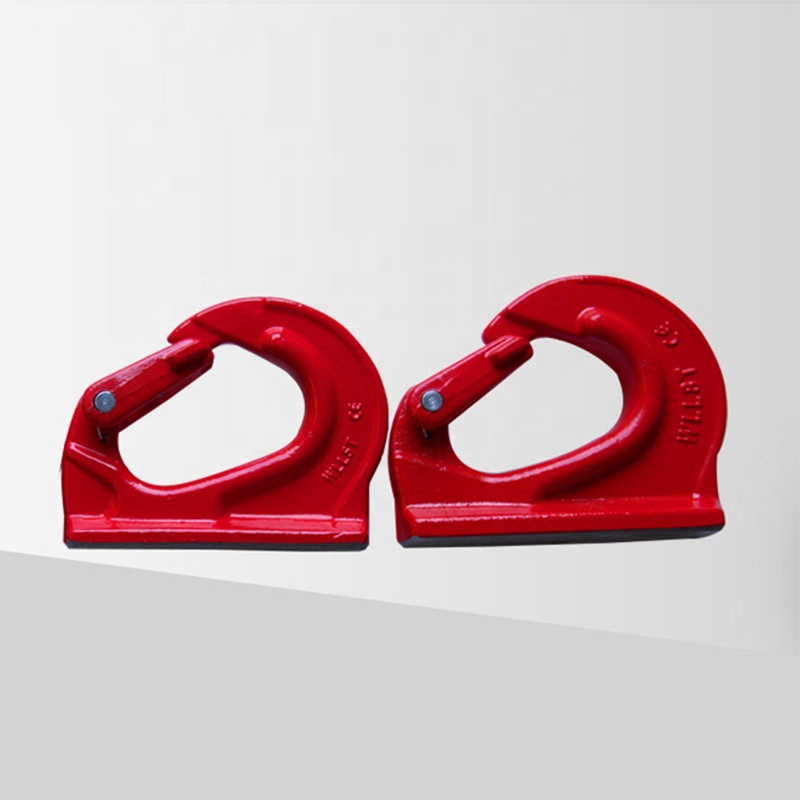

Grade 80 Weld-on Hook

Grade 80 Weld-on HookManufactured from forged alloy steel, quenched and tempered.Manufactured and tested in accordance with EN1677-1.Load rated parts are 100% magnaflux crack detected.Individual forged parts are traceable to Test Certification.Proof tested to 2.5 times the WLL.Fatigue rated to 1.5 times the WLL.All YOKE Lifting points meet or exceed all the requirements of ASME B30.26.WLL forged onto each product for quick and easy identification.Lugs designed to assist the welding process.A protected spring keeps the load ring in a required position.The parts are connected in such a way that they remain captive.The spring also reduces noise caused by vibrations.
Introduction
Parameter
Grade 80 Weld-on Hook

Working
Load
Limit
lbs
Dimensions (inch) Weight
(lbs)
A F H L M P T W
2,200 0.28 0.98 1.06 2.83 0.24 0.71 0.67 3.74 1.3
4,400 0.31 1.18 1.22 3.46 0.31 0.98 0.79 4.53 2.2
6,600 0.35 1.38 1.18 4.21 0.39 1.1 0.91 5.24 3.1
8,800 0.39 1.65 1.5 4.41 0.43 1.1 1.18 5.55 4.4
11,000 0.47 1.73 1.81 5.24 0.51 1.18 1.22 6.57 6.6
17,600 0.47 1.97 2.13 5.39 0.55 1.26 1.54 6.89 8.4
22,000 0.51 2.2 2.2 6.61 0.63 1.73 1.65 8.74 13.9
Standards

Name: Grade 80 Weld-on Hook

Package: Carton + Steel Pallet
