Grade 80 Quad Master Links close left right

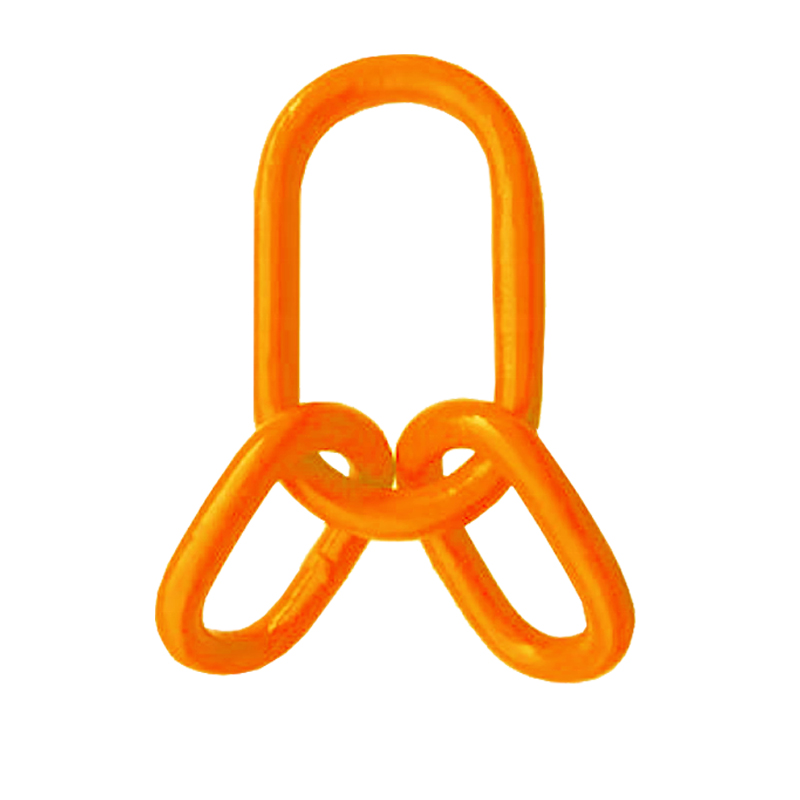

Grade 80 Quad Master Links

Grade 80 Quad Master LinkEngineered to work with Grade 80 and Grade 100 Alloy SteelIncreased working load limit by at least 25% as compared to a similar product in Grade 80Designed to make a three or four leg chain or wire rope slingProof Tested & Certified
Introduction
Parameter
WLL 4:1
lbs
WLL 5:1
lbs
Inside Dim. Masters (inches) Inside Dim. Subs (inches) For
Chain
Weight
lbs
i-length i-width dia i-length i-width dia
11,200 8,960 5.91 3.54 0.71 2.13 0.98 0.51 9/32″ 2.90
15,200 12,160 6.30 3.54 0.87 2.76 1.34 0.63 9/32″+5/16″ 4.88
26,000 20,800 7.09 3.94 1.02 3.35 1.57 0.71 3/8″ 7.39
39,000 31,200 7.87 4.33 1.26 4.53 1.97 0.87 1/2″ 13.24
58,700 46,960 10.24 5.51 1.42 5.51 2.56 1.02 5/8″ 21.98
91,700 73,360 13.78 7.48 2.01 5.91 2.76 1.26 3/4″ 51.26
110,900 88,720 13.78 7.48 2.01 6.69 2.95 1.42 7/8″ 56.76
155,100 124,080 15.75 7.87 2.24 6.69 3.15 1.57 1″ 77.44
Standards

Name: Grade 80 Quad Master Link

Package: Carton + Steel Pallet
