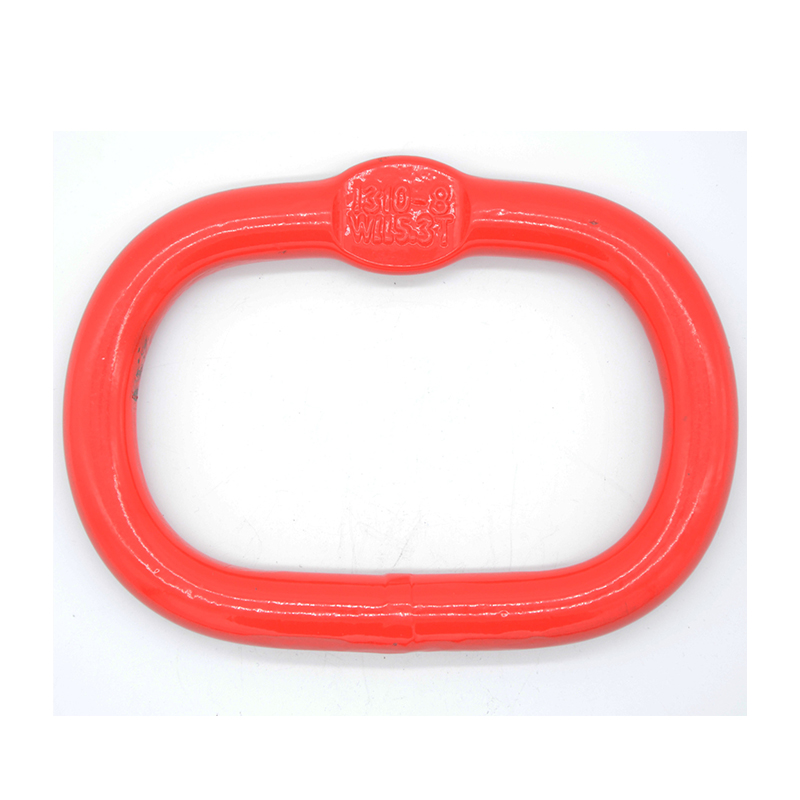

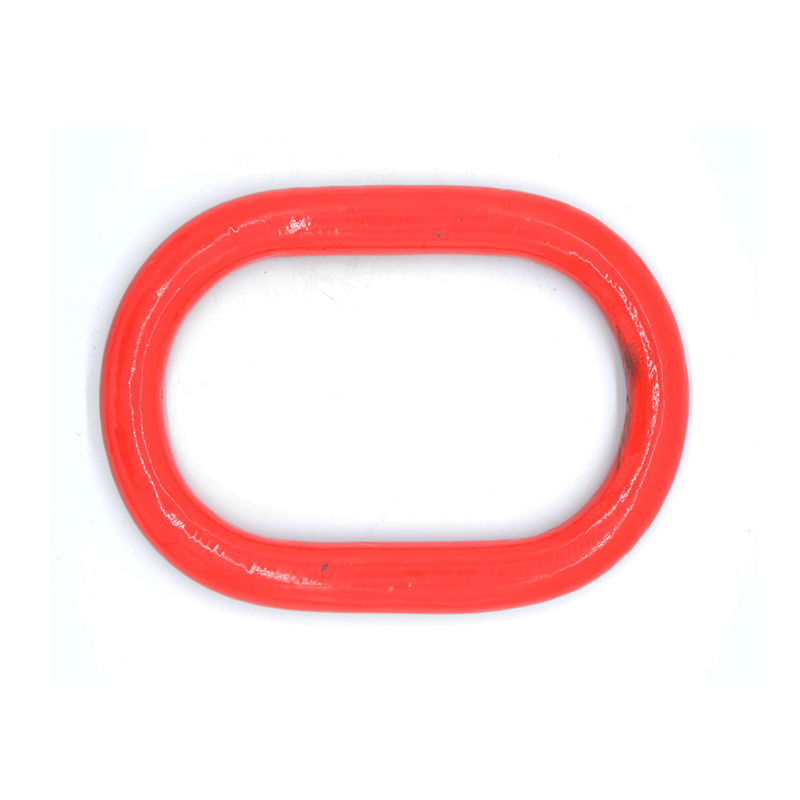

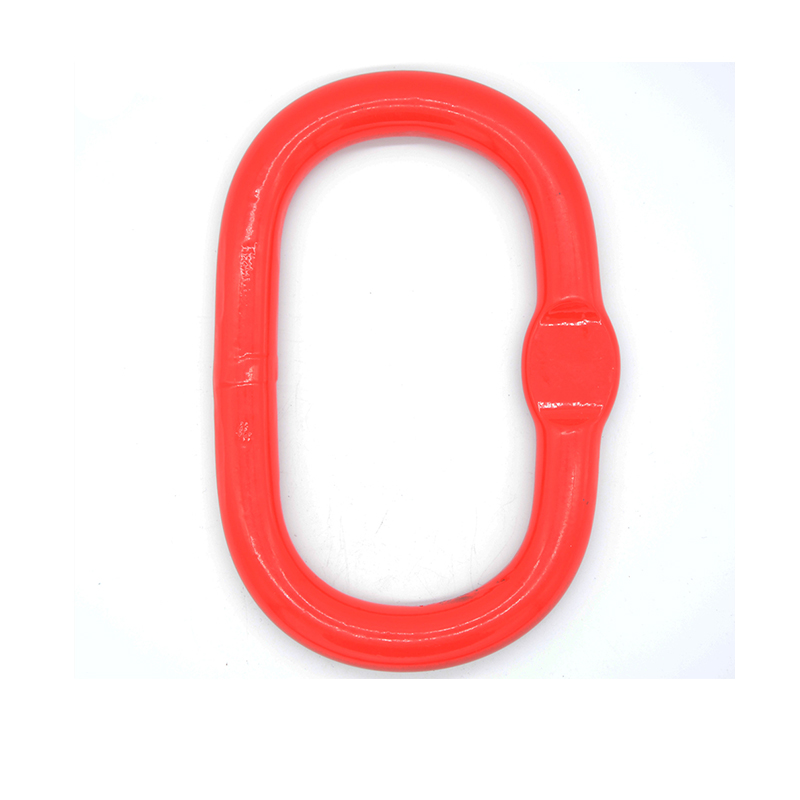

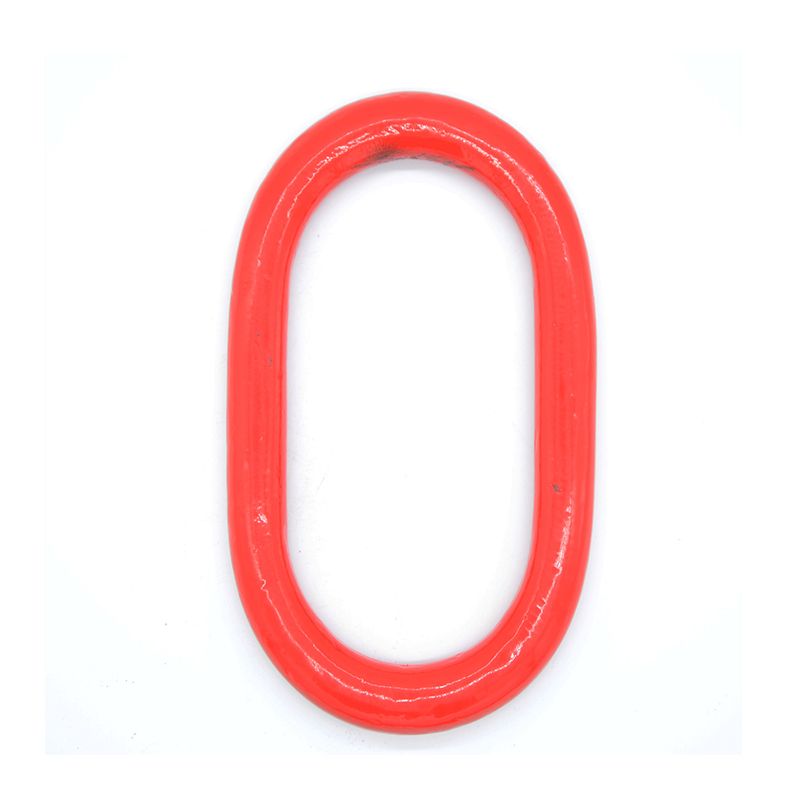

G80 Weldless ChainThis Welded Master Link Grade 80 meets or exceeds all requirements of ASME B30 26 including identification, ductility, design factor, proof load and temperature requirements. Large inside width and length to allow additional room for sling hardware and crane hook. Our range of Grade 80 master link is available in standard as well as customized sizes.
Product Features:
Welded super alloy steel –Quenched and Tempered.
Individually proof test at 2 times Working Load Limit.
Durable Powder Coated Finish.
All sizes: Welded.
Engineered to work w/ Grade 80 & Grade 100 Alloy Steel
Increased working load limit by at least 25% as compared to a similar product in Grade 80
Designed to make a single or double leg chain or wire rope sling
Raised letter embossing of size and grade for easy identification
| Part Number | Trade Size | WLL 4:1 lbs | WLL 5:1 lbs | Inside Dimensions (inches) | Chain Size | Weight lbs | |||
| i-length | i-width | dia | 1 leg | 2 leg | |||||
| AX13 | 1/2” | 6,000 | 4,800 | 4.33 | 2.36 | 0.51 | 9/32″,5/16″ | 7/32″ | 0.75 |
| AX16W | 5/8” | 8,600 | 6,880 | 5.51 | 3.15 | 0.63 | 5/16″ | 9/32″ | 1.47 |
| AX18W | 3/4” | 12,900 | 10,320 | 5.91 | 3.54 | 0.71 | 3/8″ | 5/16″ | 2.02 |
| AX22 | 7/8” | 17,600 | 14,080 | 6.30 | 3.54 | 0.87 | 1/2″ | 3/8″ | 3.30 |
| AX26 | 1” | 30,000 | 24,000 | 7.09 | 3.94 | 1.02 | 5/8″ | 1/2″ | 5.06 |
| AX32 | 1 1/4” | 39,100 | 31,280 | 7.87 | 4.33 | 1.26 | 3/4″ | 5/8″ | 8.58 |
| AX36 | 1 1/2” | 61,100 | 48,880 | 10.24 | 5.51 | 1.42 | 7/8″ | 3/4″ | 13.97 |
| AX45 | 1 3/4″ | 74,000 | 59,200 | 13.39 | 7.09 | 1.77 | 1″ | 7/8″ | 28.16 |
| AX51 | 2″ | 103,400 | 82,720 | 13.78 | 7.48 | 2.01 | 1 1/4″ | 1″ | 37.84 |
| AX57 | 2 1/4″ | 178,900 | 143,120 | 15.75 | 7.87 | 2.24 | – | 1 1/4″ | 53.24 |
Standard: G80 Weldless Chain
MOQ: 10 KG
Package: Carton + Steel Pallet
