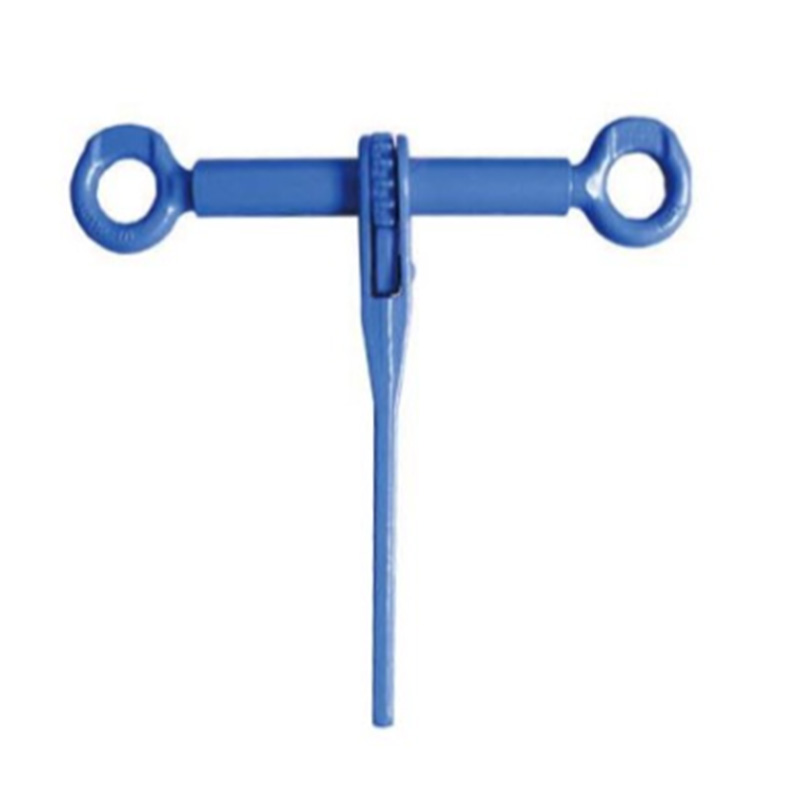

G100 Rachet Binder without Link and Hooks


G100 Rachet Binder is a manual ratchet tensioner, between the tensioner body, both ends are threaded connected with the tensioner body of the rotating rod, fork type handle set in the middle of the pulling machine body, can be rotated along the tensioner body, the ratchet is in the fork of the handle, and fixed on the pulling machine body, the ratchet is V-shaped, above the ratchet, one claw and ratchet teeth meshing, Mounted on a fixed shaft, the spring and the steel ball in the fork fork fork fork groove, the steel ball top on the pawl.

 Its advantage is simple operation, fast and labor-saving. Ratchet type tensioner is mainly used in the transportation of steam transport, train transport, ship transport and other transportation process of binding fixed goods


Introduction

According to EN12195-3 standard.

Handle: forged.

Suitable for G100 chain.

With G100 eye grab hook with safety pin.

Not for lifting, only for lashing.

Surface finish: Powder coating

Min. Breaking strength is 2 times of the W.L.L


Parameter



Size

规格

L.C. (KN)

工作载荷

B.L. (KN)

破断载荷

N.W. (kg/pcs)

净重

8-10501002.6
10-10801 604.3
13-101342685.0
