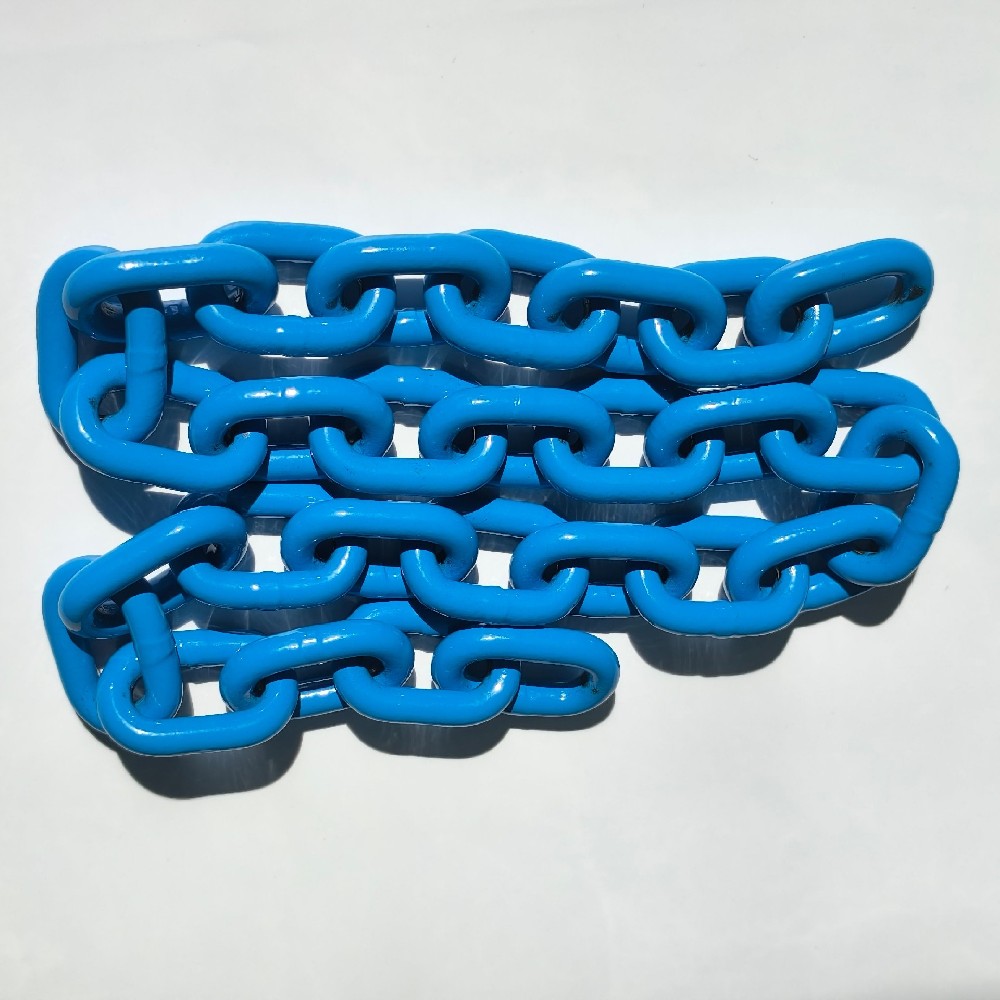

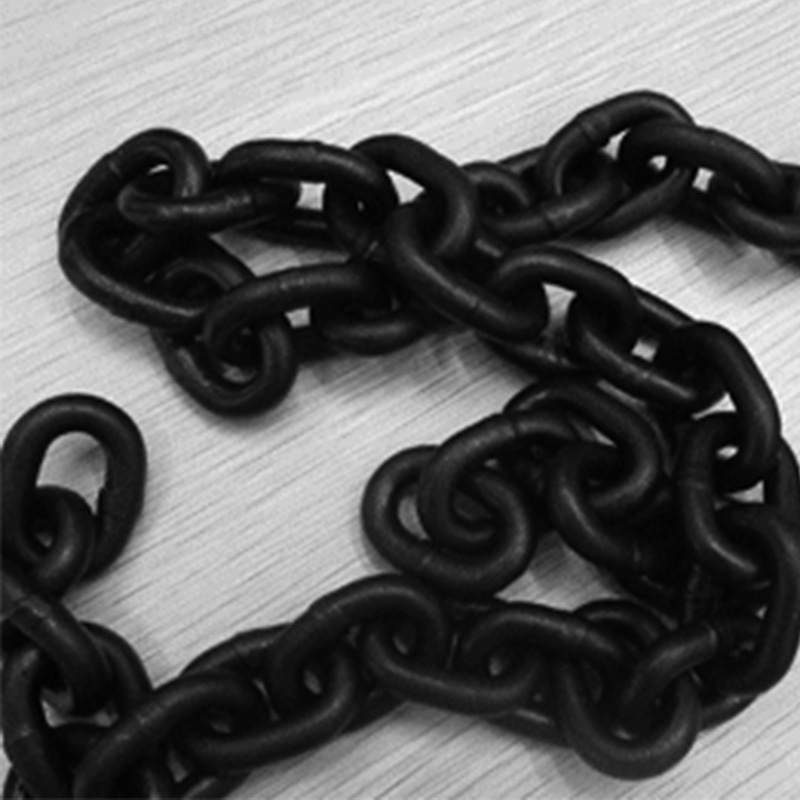

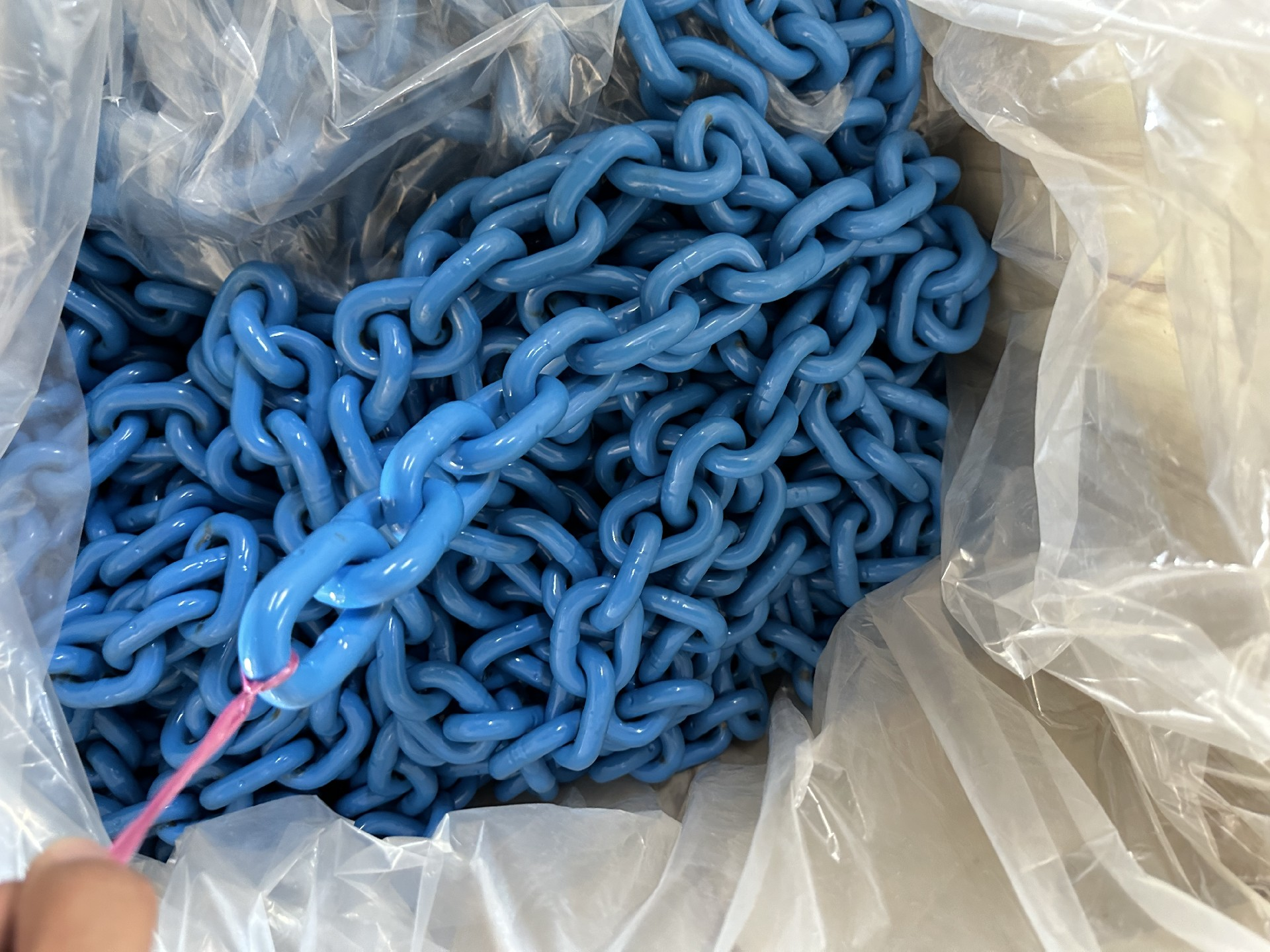

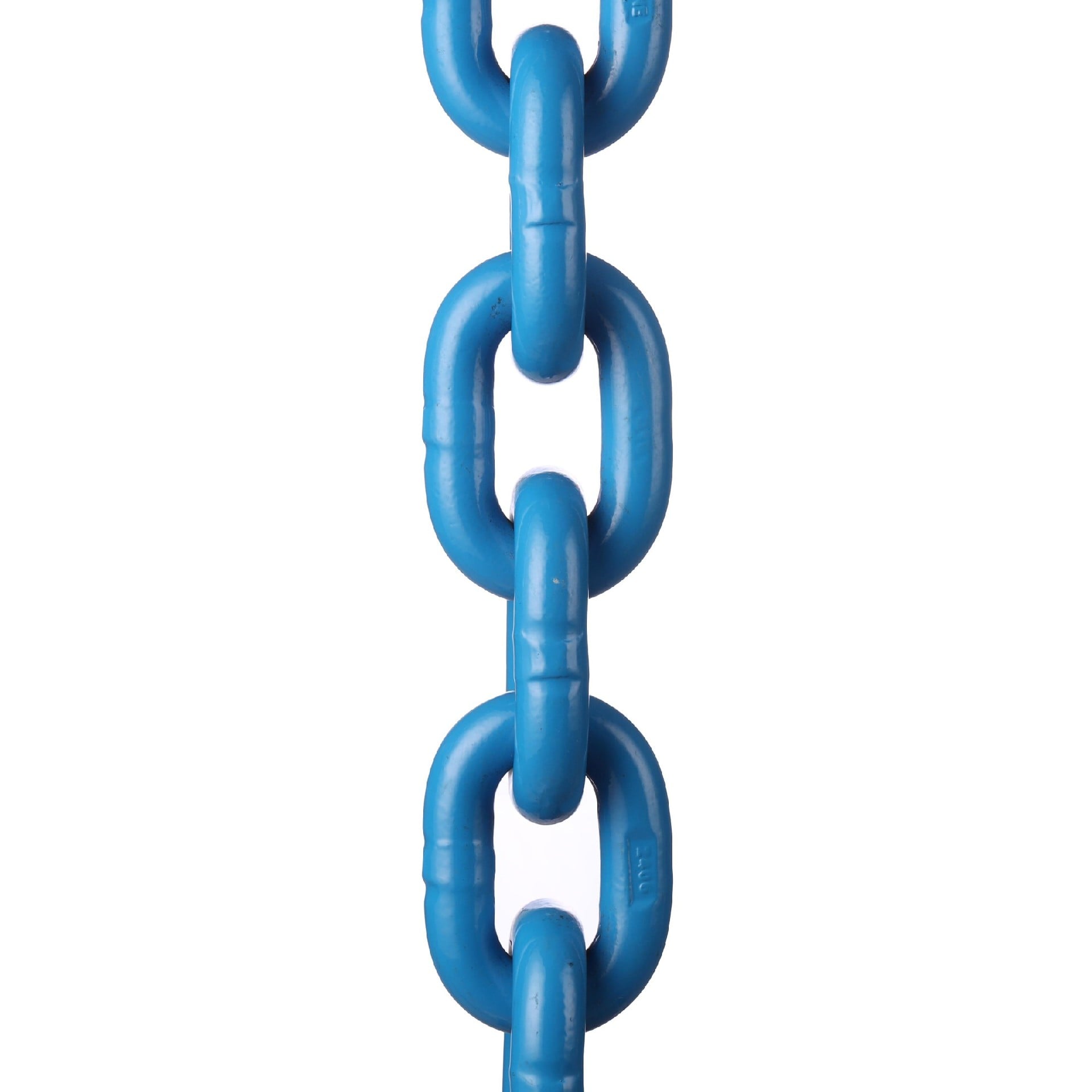

EN818-2 Lifting Chain Grade100

The G100 chain, commonly used for lifting and handling cargo operations, has a lifting capacity 25% higher than the G80.  Manufactured in quenched and tempered alloy steel with high resistance to impact and wear to meet the key requirements of "short link AS 2321,

  • Introduction

    Material: high quality alloy steel

    Surface treatment: selfcolor, polishing, blackened,painted, plastic coating, e/ectric galvanized,hot-dip galvanized,etc.

    Parameter

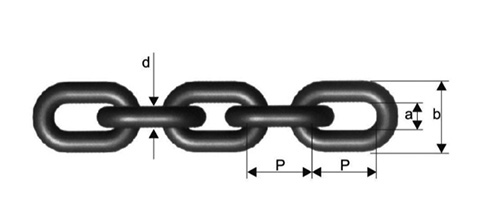

    Size (mm)

    Inside min. a

    outside max. b

    W.L.L (ton)

    Test Load (KN)

    Min. Breaking Load (KN)

    Weight (kg/m)

    6x18

    7.5

    21

    1.4

    35.3

    56.5

    0.79

    7.1x21

    9

    24.5

    2

    49.5

    79.1

    1.1

    8x24

    10

    28

    2.5

    62.8

    101

    1.4

    9x27

    11

    30.6

    3.2

    79.5

    127

    1.8

    10x30

    12.5

    35

    4

    98.1

    157

    2.2

    11.2x34

    14.5

    37.5

    4.8

    119

    1 90

    2.7

    12x36

    15

    42

    5.8

    141

    226

    3.1

    13x39

    16.3

    46

    6.8

    1 66

    265

    3.8

    14x42

    18

    49

    7.9

    193

    308

    4.4

    16x48

    20

    56

    10

    251

    402

    5.7

    18x54

    23.7

    63.2

    13

    318

    509

    7.3

    20x60

    25

    70

    16

    393

    628

    9

    22x66

    28

    77

    19

    475

    760

    10.9


    Standards
