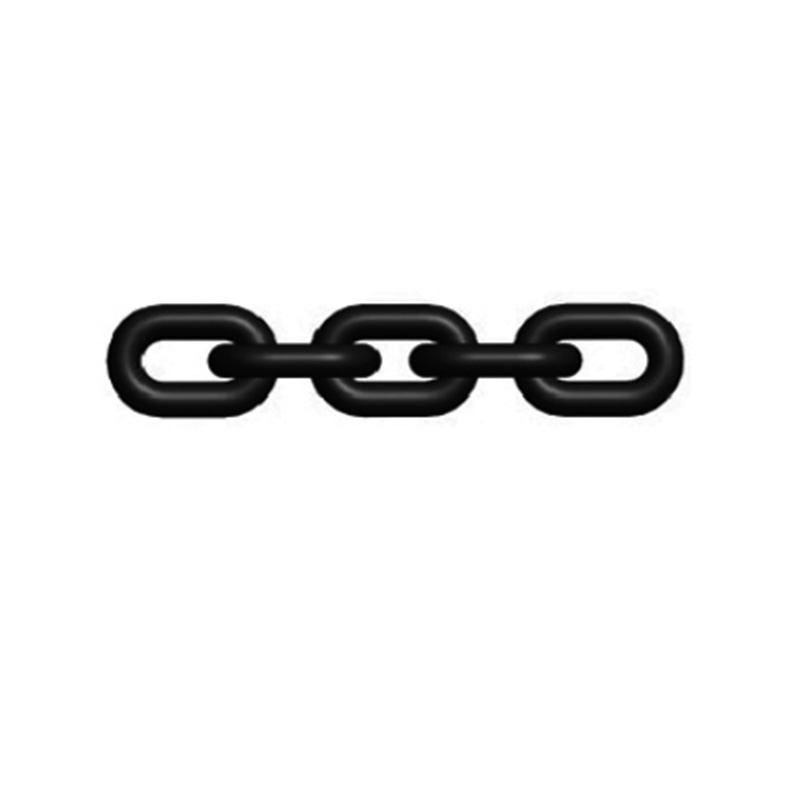

The G100 chain, commonly used for lifting and handling cargo operations, has a lifting capacity 25% higher than the G80. Manufactured in quenched and tempered alloy steel with high resistance to impact and wear to meet the key requirements of "short link AS 2321,
Meets the dimensionalrequirements of EN818-2 and ISO 3076
25% stronger than G80 Chain

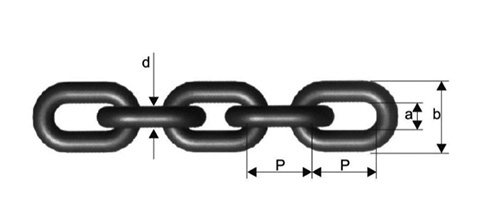

Size (mm) | Inside min. a | outside max. b | W.L.L (ton) | Test Load （KN) | Min. Breaking Load (KN) | Weight (kg/m) |
6x18 | 7.5 | 21 | 1.4 | 35.3 | 56.5 | 0.79 |
7.1x21 | 9 | 24.5 | 2 | 49.5 | 79.1 | 1.1 |
8x24 | 10 | 28 | 2.5 | 62.8 | 101 | 1.4 |
9x27 | 11 | 30.6 | 3.2 | 79.5 | 127 | 1.8 |
10x30 | 12.5 | 35 | 4 | 98.1 | 157 | 2.2 |
11.2x34 | 14.5 | 37.5 | 4.8 | 119 | 1 90 | 2.7 |
12x36 | 15 | 42 | 5.8 | 141 | 226 | 3.1 |
13x39 | 16.3 | 46 | 6.8 | 1 66 | 265 | 3.8 |
14x42 | 18 | 49 | 7.9 | 193 | 308 | 4.4 |
16x48 | 20 | 56 | 10 | 251 | 402 | 5.7 |
18x54 | 23.7 | 63.2 | 13 | 318 | 509 | 7.3 |
20x60 | 25 | 70 | 16 | 393 | 628 | 9 |
22x66 | 28 | 77 | 19 | 475 | 760 | 10.9 |
