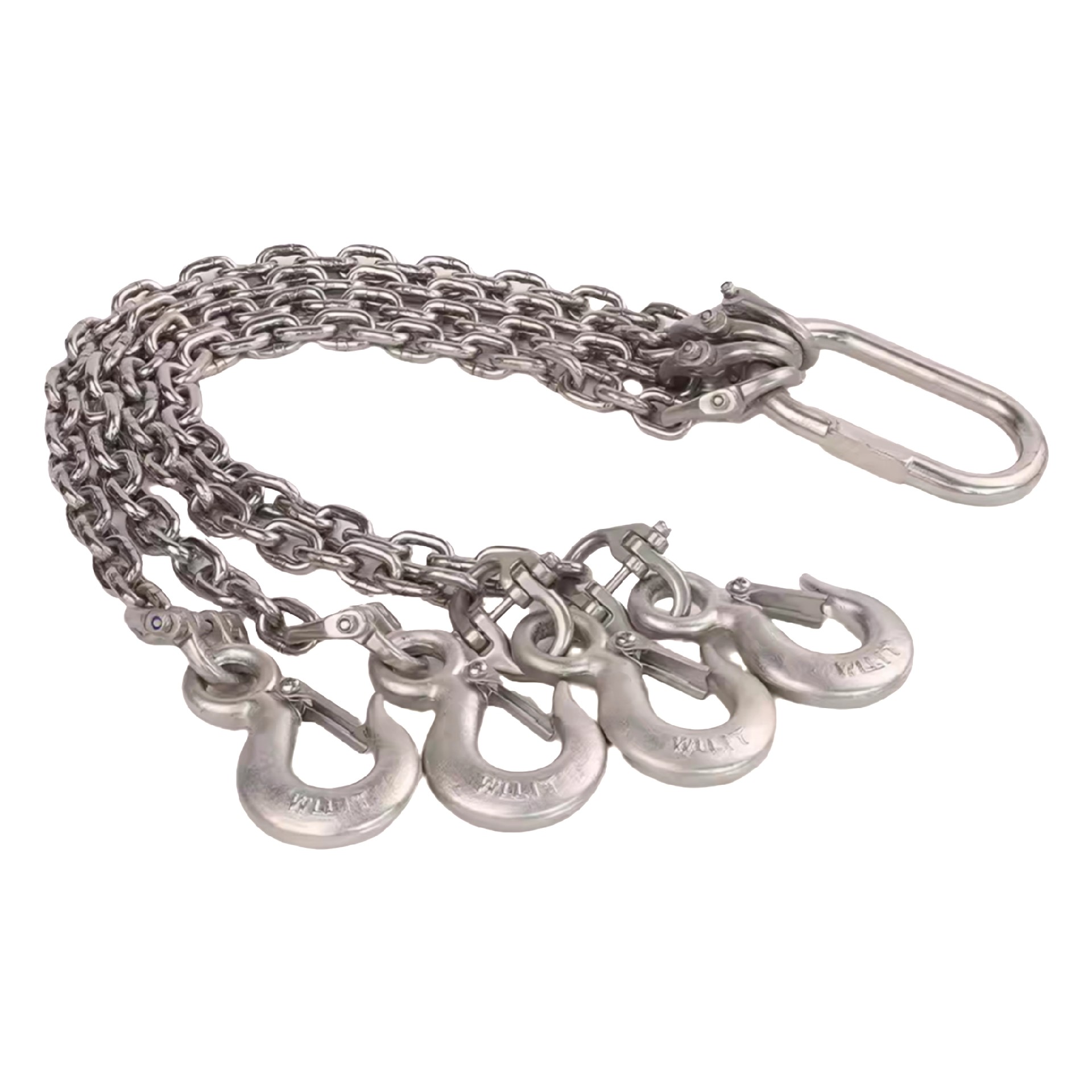

G43 Stainless Steel Chain Sling combines Grade 43 chain performance with AISI 316 stainless steel construction. The molybdenum-containing 316 stainless steel provides increased resistance to chloride-containing environments compared with AISI 304, making the assembly suitable for marine and saltwater applications.

The sling can be configured according to the required chain diameter, effective working length and connection method.

Material: AISI 316 Stainless Steel

Grade: Grade 43

Configuration: Single Leg / Two Leg / Multi-Leg

End Fittings: Master Link / Hook / Shackle / Connecting Fittings

Effective Working Length: Customized

Application: Marine rigging, load securing, restraint and industrial connection

Overhead Lifting: Only when the complete assembly is specifically engineered, tested and certified for lifting service

Name: G43 Stainless Steel Chain Sling

MOQ: 1 Piece

Package: Carton + Steel Pallet

Manufacturing Standards

The chain sling is manufactured from AISI 316 stainless steel Grade 43 chain and compatible stainless steel connecting components. Production control covers material verification, chain dimensions, component compatibility, assembly dimensions and identification.

The required chain diameter, sling configuration, effective working length and terminal fittings are determined according to the customer's specified application.

Testing Standards

Finished assemblies can be inspected and tested according to the agreed purchase specification, including:

AISI 316 material verification

Dimensional inspection

Visual inspection

Chain and fitting inspection

Assembly inspection

Specified load testing

Identification and traceability verification

Material certificates and test documentation can be supplied according to order requirements.

Application Standards

G43 Stainless Steel Chain Sling is primarily intended for:

Marine rigging

Anchor and deck equipment connections

Load securing

Cargo restraint

Industrial chain assemblies

Applications exposed to moisture and saltwater

Grade 43 designation alone does not qualify a chain sling for overhead lifting. When an assembly is required for overhead lifting, its chain, master links, hooks, connecting components, WLL and completed assembly must be specifically designed, tested and certified for that service.

Maintenance Standards

Inspect the complete assembly before use, paying particular attention to:

Chain link wear and deformation

Cracks or mechanical damage

Master link condition

Hook and shackle condition

Connecting components

Localized corrosion

Identification and traceability markings

Assemblies with cracks, permanent deformation, excessive wear or damaged load-bearing components should be removed from service.
