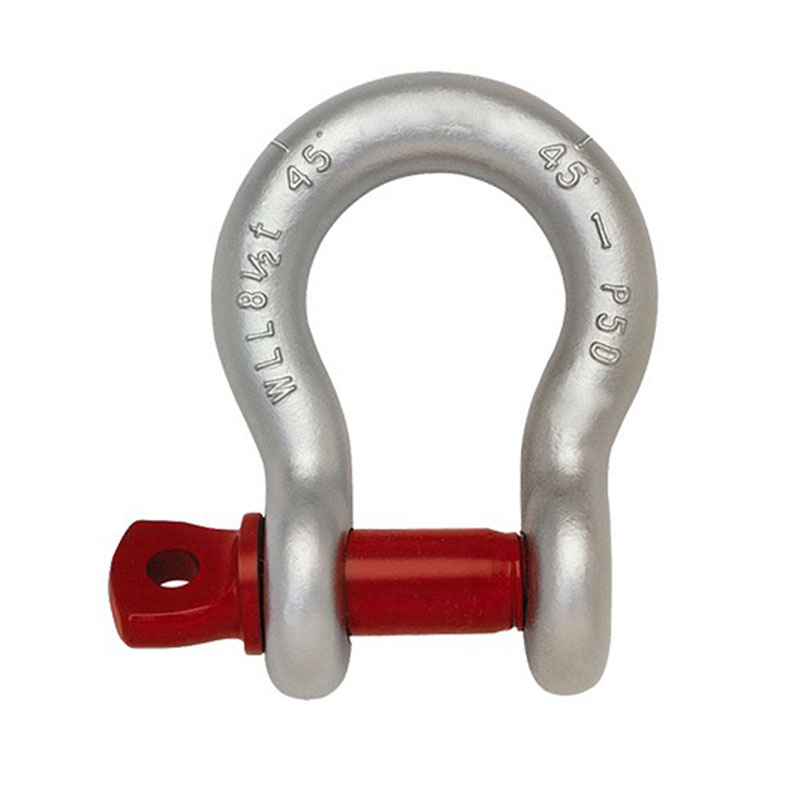

G-209 Screw pin anchor shackles have a large rounded shape that allows them to take loads from many directions without developing significant side load. That makes them ideal for use with multiple-leg slings, connecting slings to load rings, and accommodating a wider strap. The screw pin configuration is best for use in applications that are temporary, or require repeated and/or quick connections and disconnections.

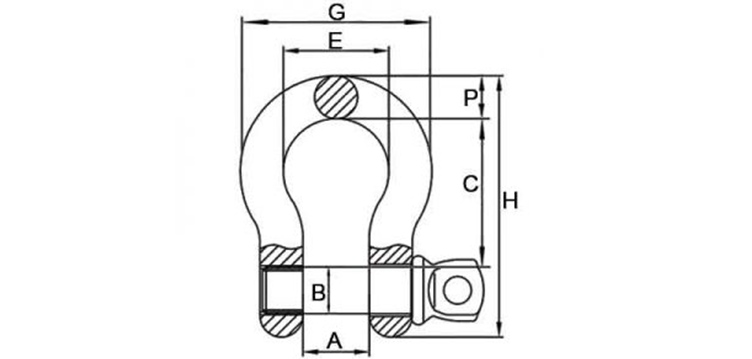

| Size | Working Load Limit | Weight | Dimensions(in.) | Tolerance± | |||||||
| (in.) | (t) | (lbs) | A | B | C | E | G | H | P | C | A |
| 3/16 | 1/3 | 0.06 | 0.38 | 0.25 | 0.88 | 0.6 | 0.98 | 1.47 | 0.19 | 0.06 | 0.06 |
| 1/4 | 1/2 | 0.1 | 0.47 | 0.31 | 0.13 | 0.78 | 1.28 | 1.84 | 0.25 | 0.06 | 0.06 |
| 5/16 | 3/4 | 0.19 | 0.53 | 0.38 | 1.22 | 0.84 | 1.47 | 2.09 | 0.31 | 0.06 | 0.06 |
| 3/8 | 1 | 0.31 | 0.66 | 0.44 | 1.44 | 1.03 | 1.78 | 2.49 | 0.38 | 0.13 | 0.06 |
| 7/16 | 1-1/2 | 0.38 | 0.75 | 0.5 | 1.69 | 1.16 | 2.03 | 2.91 | 0.44 | 0.13 | 0.06 |
| 1/2 | 2 | 0.72 | 0.81 | 0.63 | 1.88 | 1.31 | 2.31 | 3.28 | 0.5 | 0.13 | 0.06 |
| 5/8 | 3-1/4 | 1.37 | 1.06 | 0.75 | 2.38 | 1.69 | 2.94 | 4.19 | 0.69 | 0.13 | 0.06 |
| 3/4 | 4-3/4 | 2.35 | 1.25 | 0.88 | 2.81 | 2 | 3.5 | 4.97 | 0.81 | 0.25 | 0.06 |
| 7/8 | 6-1/2 | 3.62 | 1.44 | 1 | 3.31 | 2.28 | 4.03 | 5.83 | 0.97 | 0.25 | 0.06 |
| 1 | 8-1/2 | 5.03 | 1.69 | 1.13 | 3.75 | 2.69 | 4.69 | 6.56 | 1.06 | 0.25 | 0.06 |
| 1-1/8 | 9-1/2 | 7.41 | 1.81 | 1.25 | 4.25 | 2.91 | 5.16 | 7.47 | 1.25 | 0.25 | 0.06 |
| 1-1/4 | 12 | 9.5 | 2.03 | 1.38 | 4.69 | 3.25 | 5.75 | 8.25 | 1.38 | 0.25 | 0.06 |
| 1-3/8 | 13-1/2 | 13.53 | 2.25 | 1.5 | 5.25 | 3.63 | 6.38 | 9.16 | 1.5 | 0.25 | 0.13 |
