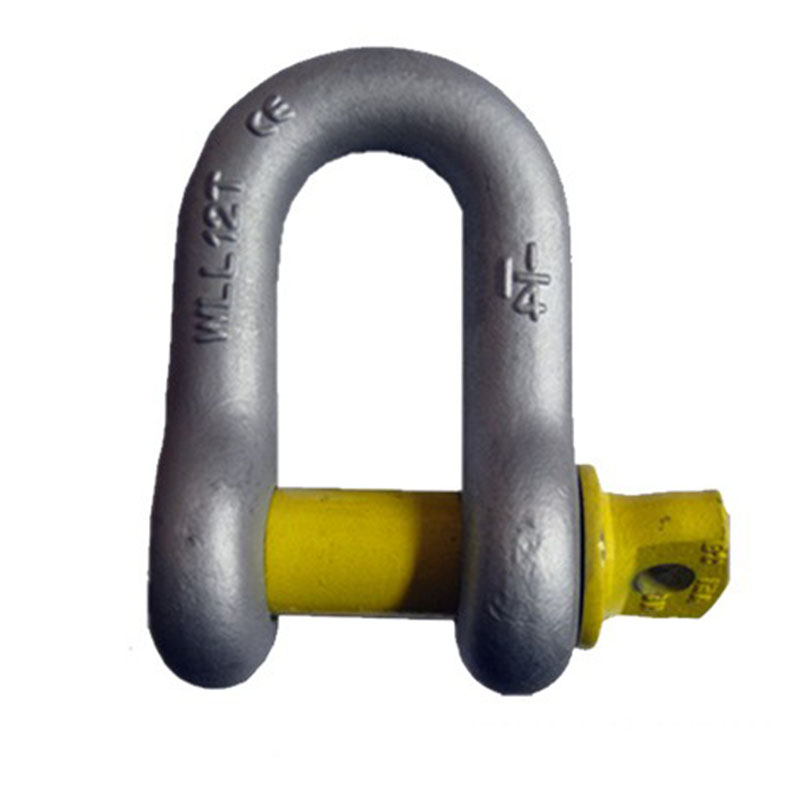

Australian Type Drop Forged Screw Pin Dee Shackle

AS2741 Grade S Dee Shackle are most commonly used for lifting applications, providing connections to Chain, Wire Rope and other rated fittings within the Marine, Agricultural, Mining and Engineering Industries. Screw pin dee shackles are intended for use in straight line pulls or lifts only. Side and racking loads run the risk of twisting or bending a chain shackle.

  • Introduction
    Product Features:
    •  Conforms to AS2741 manufactured from Grade"S"material in Dee configuration with Screw Pin.
    •  Galvanized, Powder Coating or Self Colored.
    •  Marked with work load limit in tonnes, quality grade.
    •  Proof tested to 2 x work load limit, with a minimum break force of 6 x work load limit.
    •  Test Certificates are available upon request.
    •  Suitable for lifting applications.

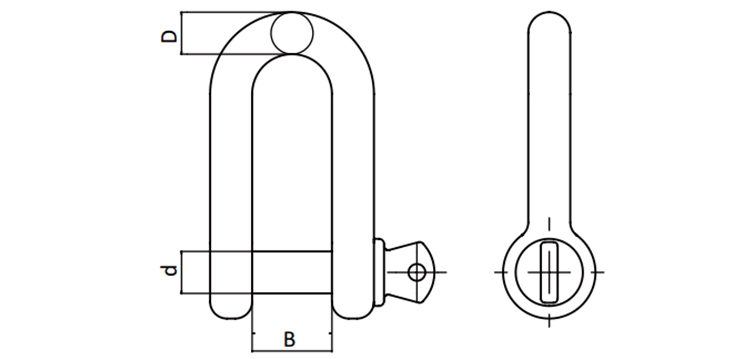

    Parameter




    Size

    (mm)

    WLL

    (mm)

    D

    (mm)

    d

    (mm)

    B

    (mm)

    60.56812
    80.7581013
    101101117
    111.5111318
    132131621
    163.2161927
    194.7192232
    22
    6.522
    2537
    258.5252943
    29
    9.529
    3246
    3212323552
    3513.5353857
    3817384160
    44
    2544
    5173
    8135815783
