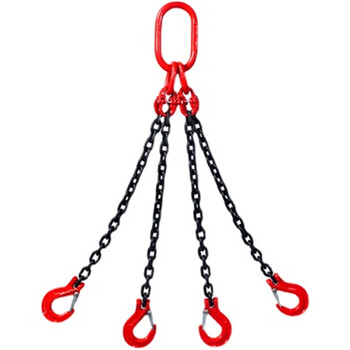

4 leg adjustable lifting chains are the most versatile and powerful lifting assemblies for handling heavy, irregular, or multi-point loads. Designed with four adjustable chain legs, these slings allow users to independently control the chain length using built-in shortening clutches, ensuring precise balance and stability during lifting operations.
At TOPONE CHAIN, we manufacture certified G80 and G100 4 leg adjustable lifting chains built for demanding lifting applications in construction, mining, shipbuilding, and heavy machinery industries.
Product Name: 4 Leg Adjustable Lifting Chain Sling
Material: High-strength Alloy Steel (20Mn2 / SCM440 / 23MnNiMoCr5-4)
Grade: G80 / G100
Structure: Master Link + 4 Chain Legs + Shortening Clutches + End Hooks
Surface Treatment: Self-Colored / Black Painted / Hot-Dip Galvanized / Powder-Coated
Standards: EN 818-4 / ASME B30.9 / ISO 3077
Certificates: CE / TÜV / GS / ISO 9001:2015
Component | Function | Description |
Master Link Assembly | Connection point to the crane hook | Large diameter link made of alloy steel for 4-leg configuration |
Four Chain Legs | Load-bearing chains | G80 or G100 short-link chains with high tensile strength |
Shortening Clutches (Adjusters) | Adjust chain length | Enable flexible adjustment for uneven or multi-angle loads |
End Fittings (Hooks or Shackles) | Attach to load | Available in clevis self-locking hooks, sling hooks, or shackles |
Identification Tag | Traceability | Includes working load limit (WLL), batch number, and certification info |
✅ Four-Point Stability
Offers maximum load balance for lifting large or irregularly shaped objects.
✅ Adjustable Chain Length
Each leg can be shortened individually with a shortening clutch, allowing perfect alignment and safe multi-angle lifting.
✅ Extreme Strength
Manufactured from high-tensile alloy steel, suitable for G80 and G100 load grades.
✅ Corrosion & Abrasion Resistance
Surface treated for long-term durability in harsh working conditions.
✅ Fully Certified & Traceable
Complies with EN 818-4, ASME B30.9, and ISO quality management standards.
✅ Custom Configurations
Available in single, double, three, and four-leg variants with optional hooks, links, or shackles.
4 leg adjustable lifting chains are ideal for multi-point and heavy-duty lifting operations such as:
Structural steel installation and beam positioning
Shipbuilding and offshore rigging
Heavy machinery transport and assembly
Mining and quarry lifting tasks
Construction material handling
Factory and warehouse logistics operations
Their multi-leg adjustability ensures the load remains level and secure even in uneven lifting environments.
Chain Diameter (mm) | Grade | WLL (0°–45°) (Tons) | Adjustable Range (mm) | Net Weight (kg/m) |
6 mm | G80 | 2.0 T | 500–1500 | 0.8 |
8 mm | G80 | 3.5 T | 600–1800 | 1.4 |
10 mm | G80 | 5.4 T | 800–2000 | 2.2 |
13 mm | G100 | 9.3 T | 1000–2500 | 3.8 |
16 mm | G100 | 13.5 T | 1200–3000 | 5.6 |
20 mm | G100 | 21.2 T | 1500–3500 | 8.5 |
Custom lifting capacities and lengths available upon request.
At TOPONE CHAIN, every 4 leg adjustable lifting chain undergoes strict inspection and testing to ensure unmatched quality and reliability:
100 % Proof Load Test per EN 818-4
Dimensional and Visual Inspection for Every Assembly
Batch Number Traceability System
Heat Treatment Verification and Material Analysis
CE / TÜV / GS Certification for Export Compliance
Our factory integrates 9 automated production lines, a 15,000 m² facility, and an advanced heat-treatment center — guaranteeing strength, precision, and consistency in every sling we deliver.
ISO 9001:2015 Certified Manufacturer
G80 & G100 Lifting Chains with Full Traceability
OEM / ODM Service with Private Labeling
Fast Delivery for Global Projects
Exported to Over 80 Countries
TOPONE CHAIN’s products are trusted by professionals worldwide for their durability, safety, and reliability in heavy-duty lifting environments.
Q1: What’s the difference between adjustable and fixed 4 leg slings?
Adjustable slings allow you to change the chain length for different load sizes or lifting angles, while fixed ones have a set length.
Q2: Can adjustable slings handle uneven loads?
Yes, each leg can be shortened individually to maintain load balance during lifting.
Q3: What’s the maximum load capacity?
Depending on grade and chain diameter, WLL can range from 2 tons up to 21 tons or more.
Q4: Are TOPONE’s 4 leg lifting chains certified?
Yes. All chains are CE / TÜV / ISO certified and come with load test certificates.
The 4 leg adjustable lifting chain is the ultimate solution for heavy, multi-point lifting. With its robust design, adjustable shortening clutches, and certified G80/G100 alloy steel construction, it ensures maximum safety, flexibility, and efficiency across every lifting task.
