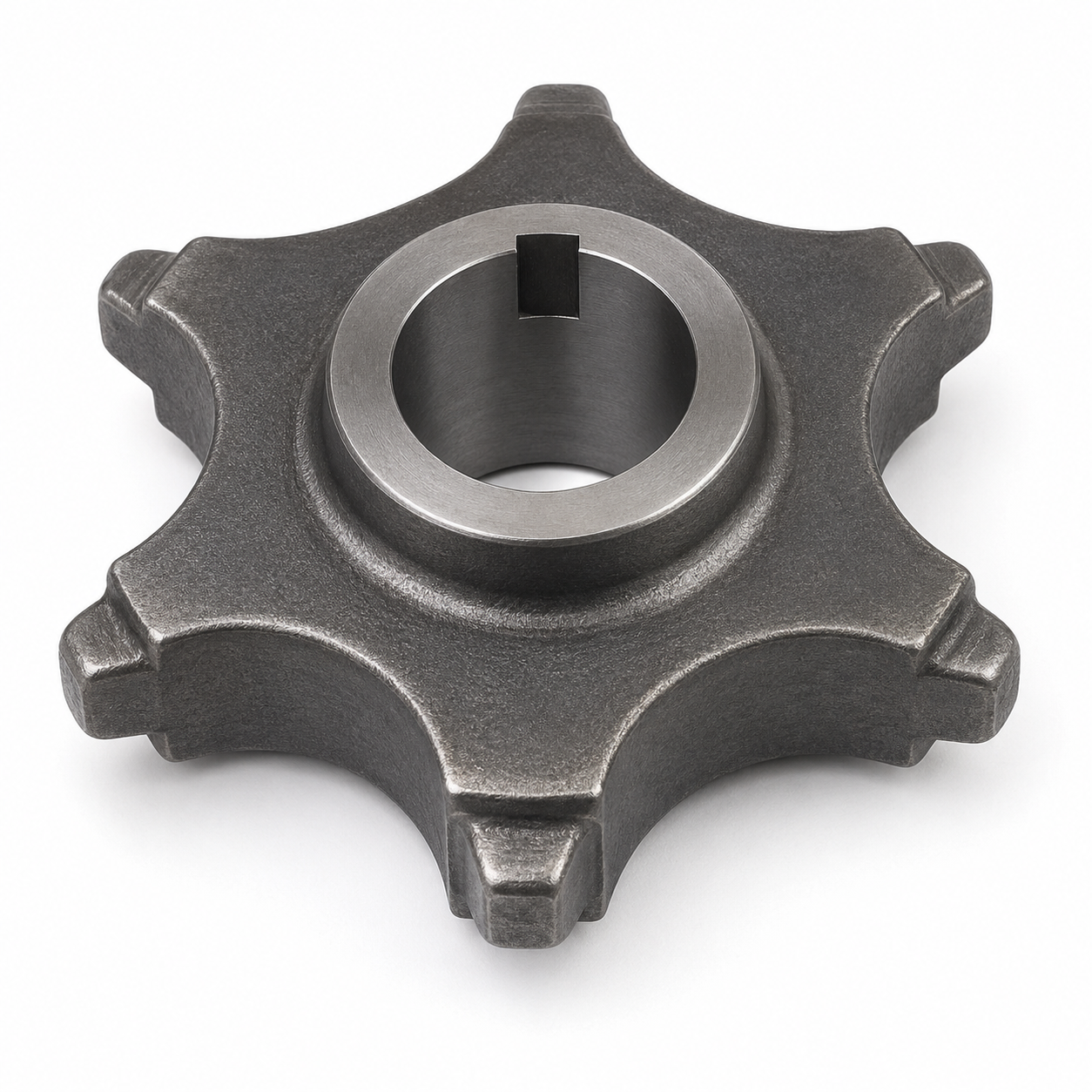

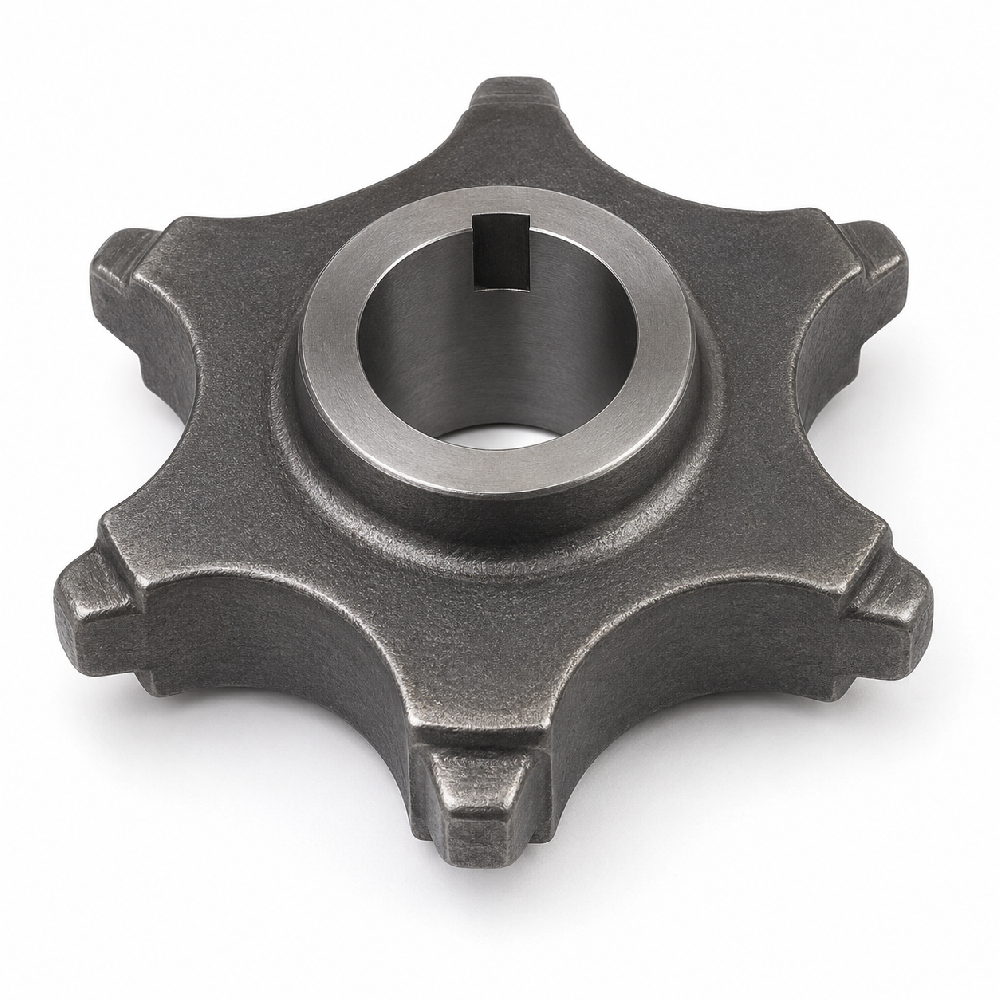

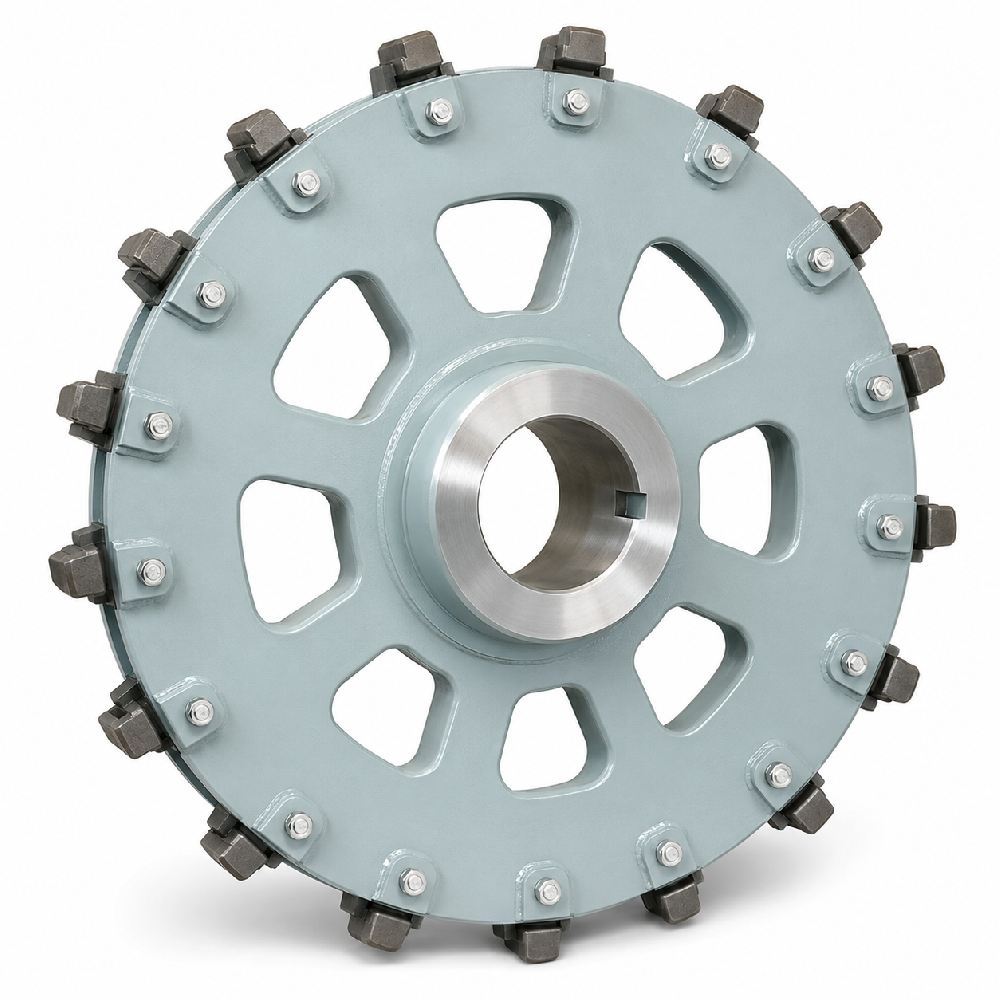

Toothed Wheels are designed to engage DIN 764 and TOPONE LH round steel chains in scraper, conveyor and traction systems. They can be manufactured in one piece or in two halves assembled with transverse screws for easier disassembly. Available materials include GS-800 spheroidal graphite cast iron, special case-hardened NiCrMo alloy steel for scrapers and conveyors, and quenched and tempered alloy steel for traction conveyors and other applications. Catalogue models cover chain sizes from 10 × 35 mm to 22 × 86 mm with 6–10 teeth.
Toothed Wheels engage compatible round steel chains through accurately arranged teeth around the wheel circumference. The catalogue includes models for DIN 764 chains and CICSA LH chains.
The wheel can use a one-piece construction or a two-half construction. Transverse screws connect the two halves and allow easier disassembly.
Material options depend on the application:
GS-800 spheroidal graphite cast iron
Special case-hardened NiCrMo alloy steel for scrapers and conveyors
Quenched and tempered alloy steel for traction conveyors and other applications
The product range includes complete toothed wheels and selected individual toothed segments.

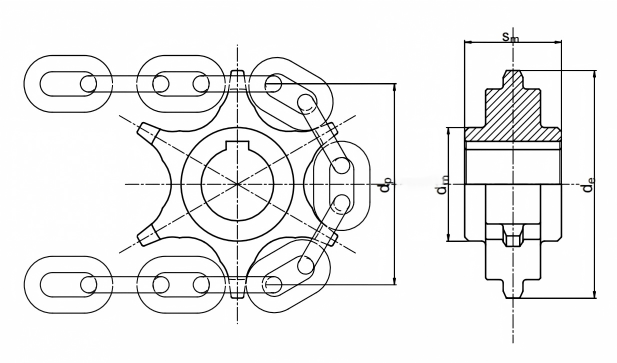

| Chain | dp (mm) | de (mm) | dm (mm) | sm (mm) | Suggested Max. Bore Ø (mm) | No. of Teeth | Mass (kg ≅) |
| 10x35 DIN 764 | 136 | 140 | 70 | 60 | 45 | 6 | 2.1 |
| 10x35 DIN 764 | 157 | 163 | 100 | 55 | 60 | 7 | 2.8 |
| 13x45 DIN 764 | 231 | 250 | 170 | 70 | 80 | 8 | 13 |
| 14x50 LH | 256 | 275 | 115 | 130 | 70 | 8 | 10 (2) |
| 16x56 DIN 764 | 217 | 229 | 130 | 100 | 80 | 6 | 11.5 |
| 16x56 DIN 764 | 287 | 302 | 170 | 70 | 100 | 8 | 18 |
| 16x64 LH | 248 | 264 | 140 | 80 | 85 | 6 | 12.5 |
| 16x64 LH | 328 | 344 | 170 | 80 | 100 | 8 | 22 |
| 18x63 DIN 764 | 363 | 379 | 170 | 80 | 100 | 9 | 38 |
| 22x86 LH | 550 | 585 | 230 | 160 | – | 10 | 24 (2) |
Name: Toothed Wheels
MOQ: 1 Piece
Package: Carton + Steel Pallet
Manufacturing Standards:
Manufactured for DIN 764 and TOPONE LH round steel chains. The wheels can use one-piece construction or two-half construction assembled with transverse screws. Material options include GS-800 spheroidal graphite cast iron, special case-hardened NiCrMo alloy steel for scrapers and conveyors, and quenched and tempered alloy steel for traction conveyors and other applications.
Testing Standards:
The TOPONE product catalogue does not specify separate testing standards. Wheel dimensions, chain size, number of teeth, suggested maximum bore and material requirements shall correspond to the selected catalogue model.
Application Standards:
Suitable for systems operating with DIN 764 or TOPONE LH chains. Material selection depends on use in scrapers, conveyors, traction conveyors or other applications.
Maintenance Standards:
The catalogue does not specify separate maintenance standards. The two-half version uses transverse screws to facilitate disassembly.
