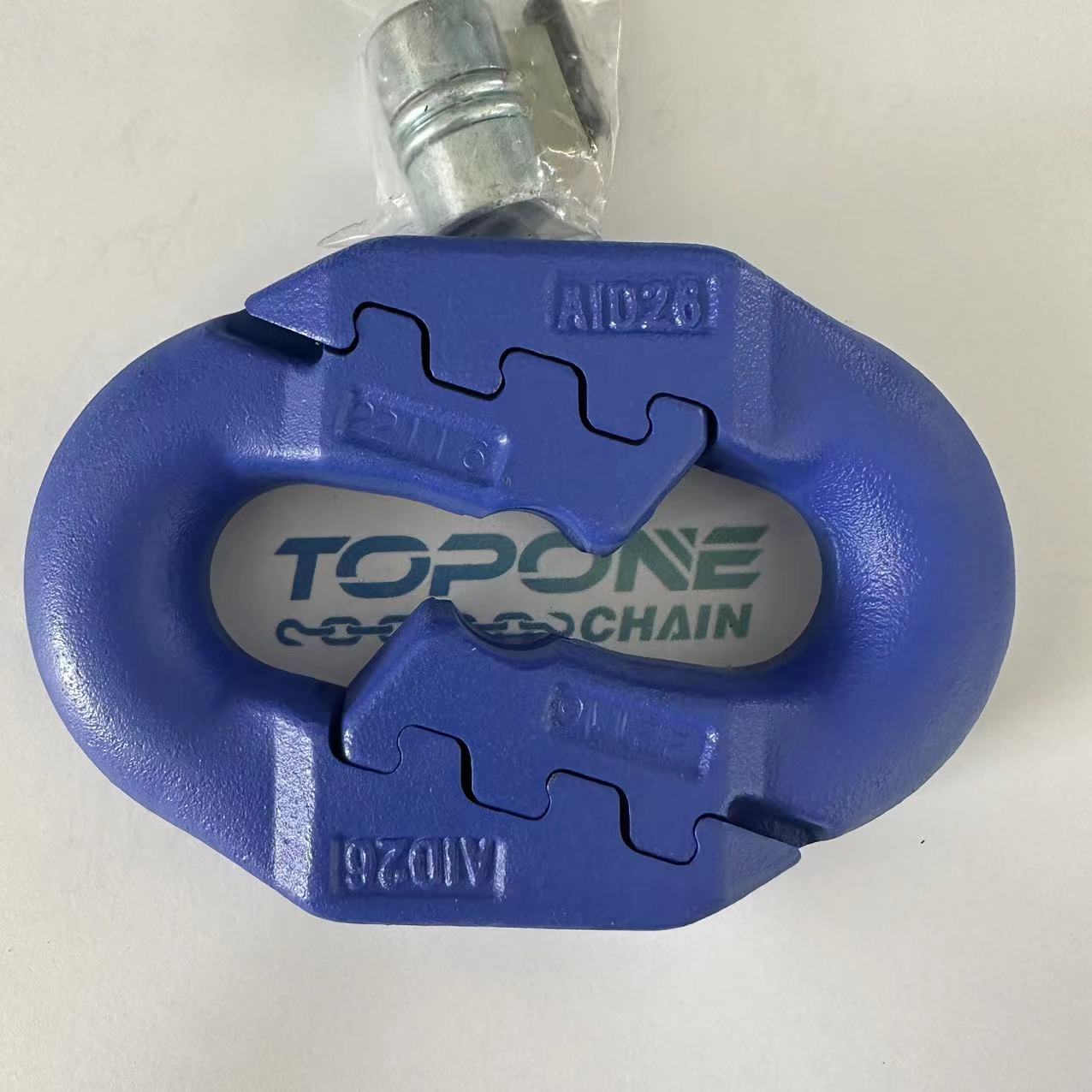

They can be used for connecting circular-ring chains (can also be used as transverse rings or vertical rings) and mining compact chains (only used as transverse rings), or other connection situations that should be determined through negotiation with TOPONECHAIN. All the arc-teeth chain connectors have received the qualification test, and the test force is 75%-90% of the breaking force.
According to DIN22258-1
relevant industry standards and MT-T99 standard
usage
They can be used for connecting circular-ring chains (can also be used as transverse rings or vertical rings) and mining compact chains (only used as transverse rings), or other connection situations that should be determined through negotiation with TOPONECHAIN. All the chain connectors have received the qualification test, and the test load is 75%-90% of the breaking load.

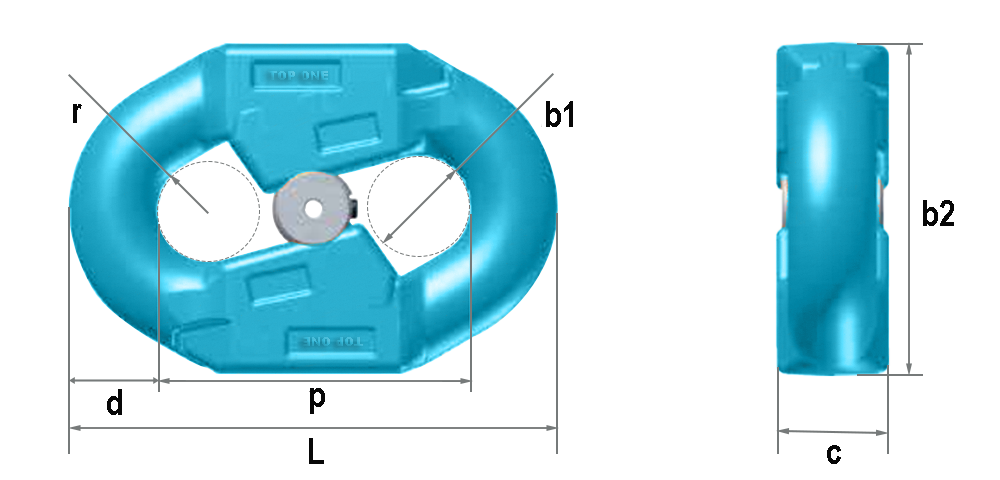

Dimension | ||||||||
Size dxp | d | p | b1 minimum | b2 maximum | c | L | r | Weight |
(mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) |
22x86 | 22 | 86 | 24 | 85 | 28 | 132 | 34 | 1.3 |
26x92 | 26 | 92 | 29 | 99 | 33 | 146 | 40 | 2.0 |
30x108 | 30 | 108 | 33 | 109 | 36 | 170 | 46 | 3.0 |
34x126 | 34 | 126 | 36 | 121 | 41 | 196 | 52 | 4.3 |
38x126 | 38 | 126 | 40 | 137 | 46 | 204 | 59 | 5.4 |
38x137 | 38 | 137 | 40 | 134 | 46 | 215 | 59 | 5.8 |
Mechanical Properties | |||
Size dxp | Test Force | Breaking Force | Fatigue strength 50-250［Mpa］ Minimum and based on DIN 22258 standard |
(mm) | (KN) | (KN) | (Cycles) |
22x86 | 456 | 540 | 50.000 |
26x92 | 637 | 754 | 80.000 |
30x108 | 848 | 1000 | 80.000 |
34x126 | 1090 | 1290 | 80.000 |
38x126 | 1360 | 1610 | 80.000 |
38x137 | 1360 | 1610 | 80.000 |
Link rings for other purposes can be customized according to customer requirements
