DIN 766 chain (German Standard Long Link Chain) is the accepted standard for measuring chain link dimensions. It is now an important industry standard. Chain size refers to the diameter of the link material. Also available in AISI316 stainless steel, high carbon steel, manganese steel, etc. General: used for anchor chains, fences, barriers, anti-theft insurance, general non-lifting operations.Chain DIN 763 is a kind of welded long link chain. The chain is suitable for all general purposes. Engineering, industrial, agricultural and marine applications in conjunction with our accessories. Remember not to use for overhead lifting!

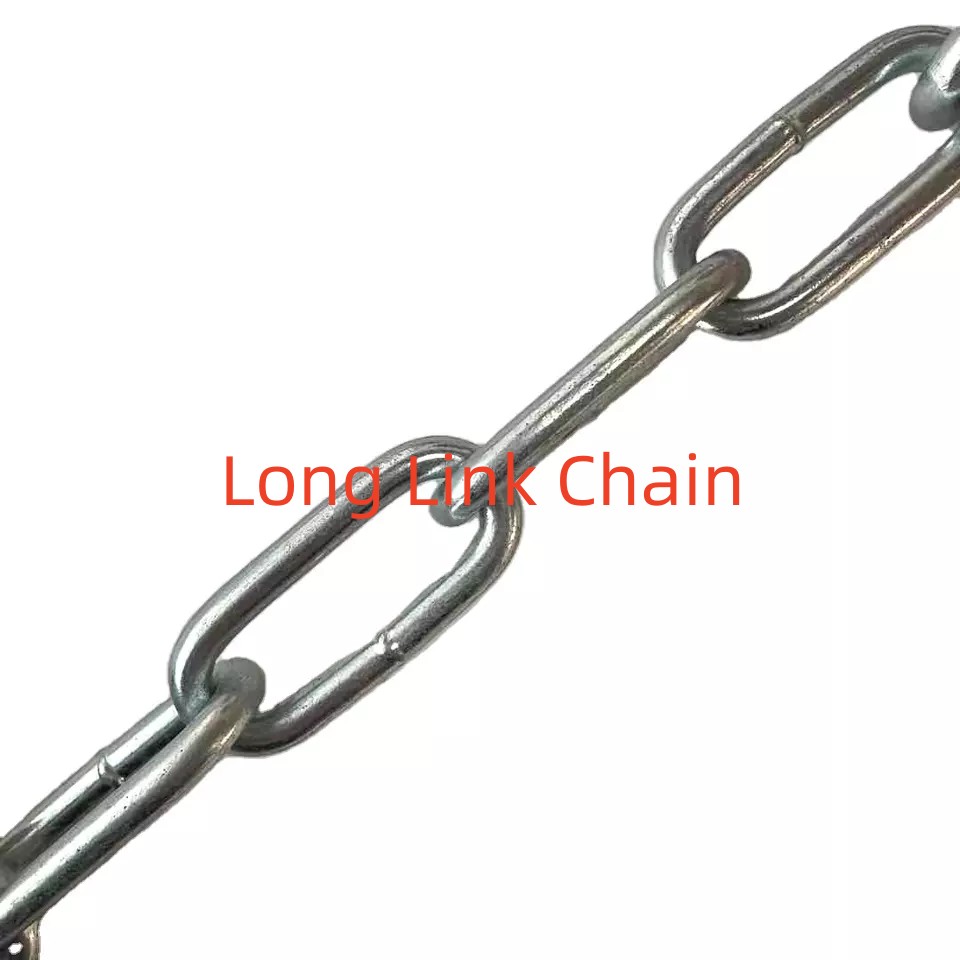

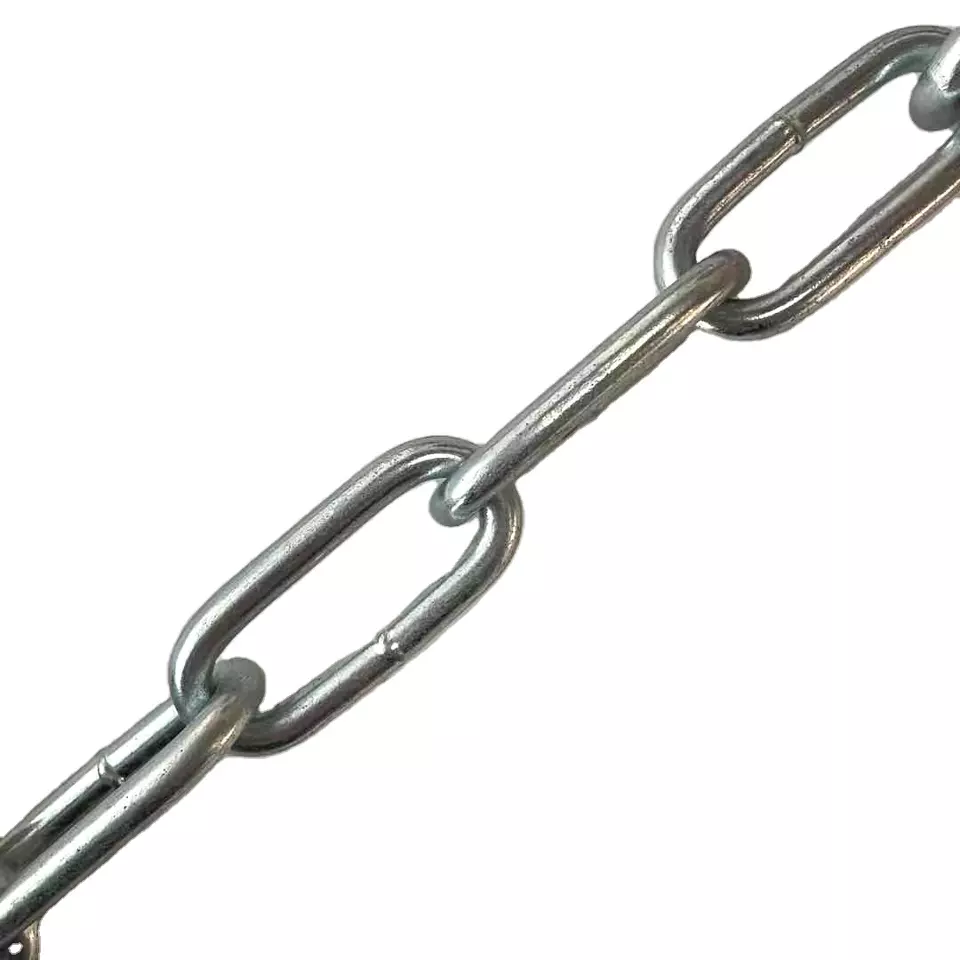

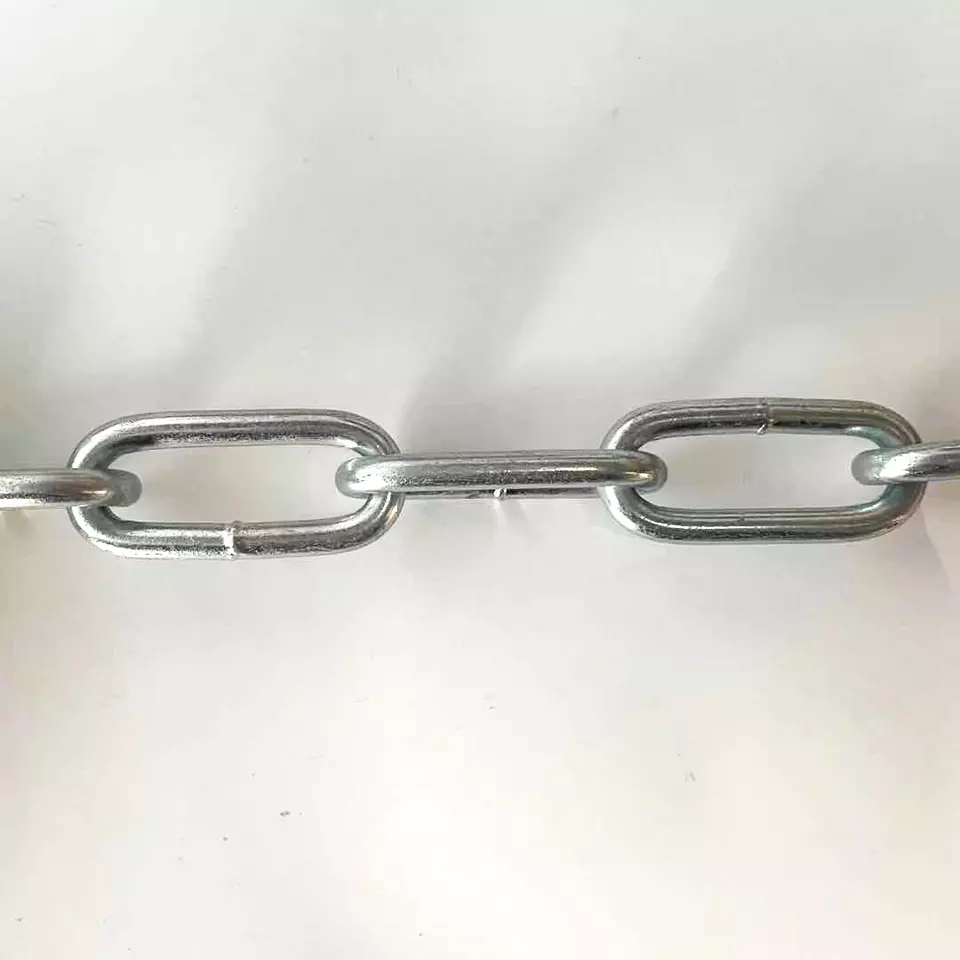

DIN 763 long link chain
Material: carbon steel Q235&Q195, high carbon steel, manganese steel, CM490, super carbon steel.
Surface treatment: primary color, electro-galvanizing, hot-dip galvanizing, blackening, plastic spraying, dipping paint, etc.
Packing: sacks, wrapping wheels, plastic drums, iron drums, wooden boxes, cartons, etc.
Welded Chain.
Not for overload lifting.

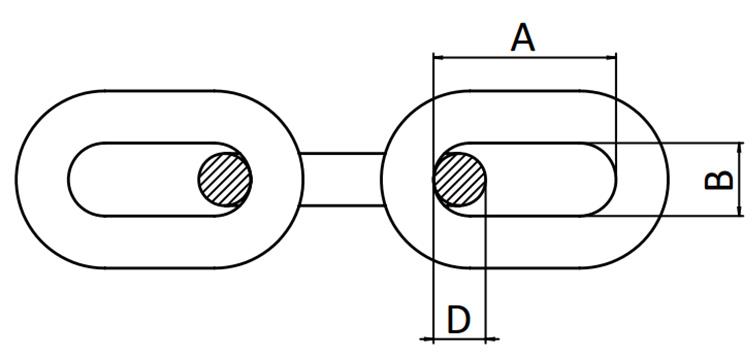

| SIZE | INSIDE LENGHT | OUTSIDE WIDTH | WORKING LOAD | TEST LOAD | BREAKING LOAD | WEIGHT PER M | |||
| MM | +/-MM | MM | +/-MM | MM | +/-AMM | KG | N | N | KG |
| 3 | 0.5 | 26 | 1.2 | 12 | 0.6 | 55 | 1050 | 3200 | 0.15 |
| 4 | 32 | 1.5 | 16 | 0.8 | 100 | 2000 | 6000 | 0.27 | |
| 5 | 35 | 1.8 | 20 | 1 | 160 | 3150 | 10000 | 0.43 | |
| 6 | 42 | 2 | 24 | 1.2 | 224 | 4500 | 14000 | 0.63 | |
| 7 | 49 | 2.5 | 28 | 1.4 | 300 | 6000 | 18000 | 0.86 | |
| 8 | 52 | 2.5 | 32 | 1.6 | 400 | 8000 | 25000 | 1.1 | |
| 9 | 59 | 3 | 36 | 1.8 | 530 | 10500 | 32000 | 1.41 | |
| 10 | 1 | 65 | 3.2 | 40 | 2 | 630 | 12500 | 40000 | 1.75 |
| 11 | 72 | 3.4 | 44 | 2 | 790 | 15800 | 47500 | 2.11 | |
| 12 | 78 | 3.6 | 48 | 2.3 | 940 | 18800 | 56500 | 2.55 | |
| 13 | 82 | 4 | 52 | 2.5 | 1000 | 21200 | 63000 | 2.95 | |
| 16 | 100 | 5 | 64 | 3.2 | 1600 | 33000 | 100000 | 4.45 | |
| 18 | 113 | 5.2 | 70 | 3.2 | 2120 | 42300 | 127000 | 5.65 | |
| 19 | 119 | 5.6 | 72 | 3.4 | 2370 | 47300 | 142000 | 6.25 | |
| 20 | 120 | 6 | 75 | 3.8 | 2500 | 50000 | 160000 | 7 | |
| 22 | 127 | 6 | 82 | 4 | 3170 | 63300 | 190000 | 8.55 | |
| 25 | 140 | 6.6 | 88 | 4.2 | 4090 | 81700 | 245000 | 10.9 | |
| 28 | 152 | 7 | 96 | 4.7 | 6000 | 120000 | 300000 | 13.9 | |
| 32 | 171 | 7.8 | 108 | 5.2 | 8000 | 160000 | 400000 | 18.2 | |
DIN chain, also known as German standard chain, can be divided into the following standards, DIN 766 chain (short link chain), DIN 764 chain (medium link chain), DIN 763 chain (long link chain), DIN 5685 chain, DIN 22252 chain
