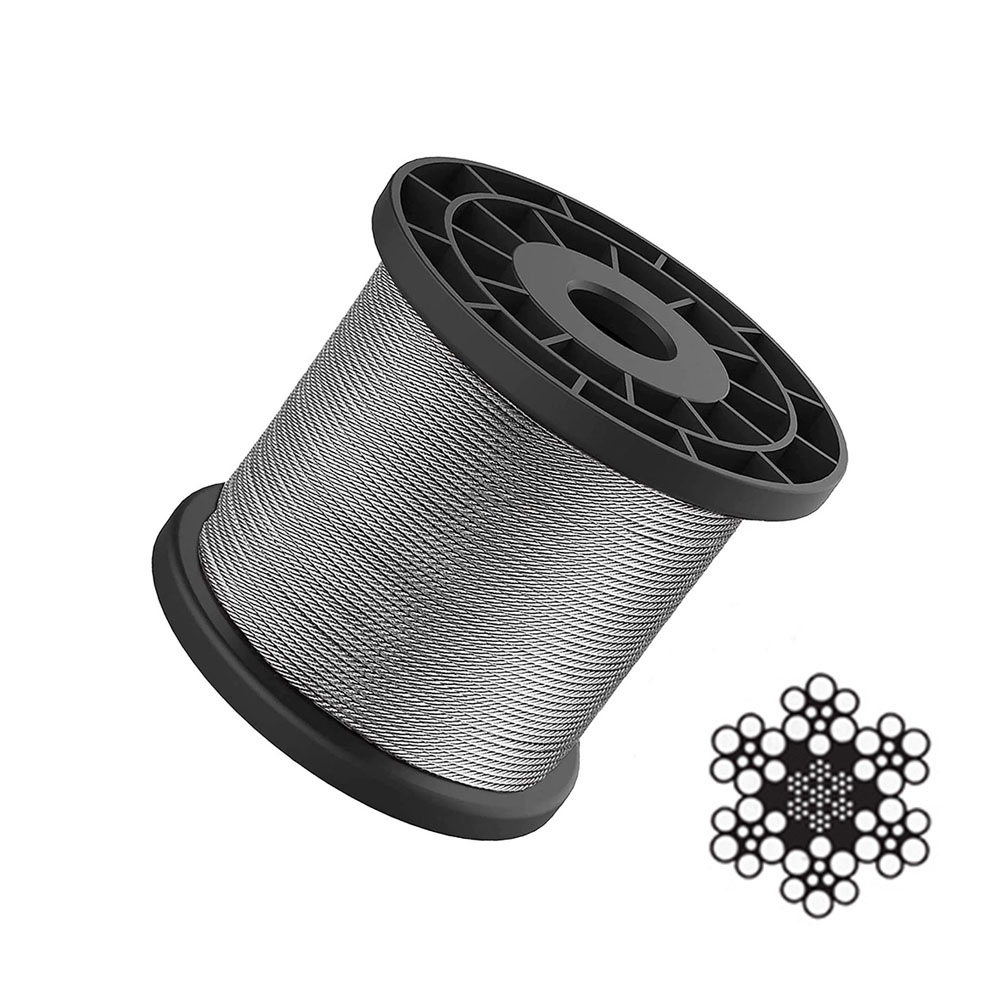

It is a 6 - strand, 9 - wire - per - strand Warrington (W) line - contact structure with a steel wire rope core (IWR).
Performance Characteristics:
Strength: The steel wire rope core also enhances the strength and anti - extrusion ability without sacrificing the good performance of the line - contact structure. It has good performance under heavy loads.
Flexibility: Though the steel wire rope core reduces the flexibility to some extent, it is nevertheless compatible with the requirements of industrial applications where high strength is desired.
Wear Resistance: The line - contact structure and the steel wire rope core provide it with excellent wear resistance, and thus it can be used in high - wear applications.
Application Characteristics: Widely used in critical applications that need high strength, wear resistance, and fatigue resistance, such as the main hoisting ropes of heavy-duty cranes, mine shaft main hoisting ropes, and hoisting ropes of high-speed elevators.
Marketing Message: Where high performance is demanded by applications where strength, wear resistance, and fatigue resistance are not subject to compromise, our 6×9W+IWR wire rope is the ideal choice. Contact us for more information on custom-designed solutions and competitive pricing.
| NAL DIAMETER | APPROX. WEIGHT | NOMINAL TENSILE STRENGTH OF ROPE(MPA) | |||||||||||
| 1570 | 1670 | 1770 | 1870 | 1960 | |||||||||
| MINIMUM BREAKING LOAD | |||||||||||||
| D | NF | SF | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS | FC | IWR/IWS |
| MM | KG/100M | (KN) | |||||||||||
| 2 | 1.4 | 1.38 | 1.55 | 2.08 | 2.25 | 2.22 | 2.4 | 2.35 | 2.54 | 2.48 | 2.69 | 2.6 | 2.81 |
| 3 | 3.16 | 3.1 | 3.48 | 4.69 | 5.07 | 4.99 | 5.4 | 5.29 | 5.72 | 5.59 | 6.04 | 5.86 | 6.33 |
| 4 | 5.62 | 5.5 | 6.19 | 8.34 | 9.02 | 8.87 | 9.59 | 9.4 | 10.2 | 9.93 | 10.7 | 10.4 | 11.3 |
| 5 | 8.78 | 8.6 | 9.68 | 13 | 14.1 | 13.9 | 15 | 14.7 | 15.9 | 15.5 | 16.8 | 16.3 | 17.6 |
| 6 | 12.6 | 12.4 | 13.9 | 18.8 | 20.3 | 20 | 21.6 | 21.2 | 22.9 | 22.4 | 24.2 | 23.4 | 25.3 |
| 7 | 17.2 | 16.9 | 19 | 25.5 | 27.6 | 27.2 | 29.4 | 28.8 | 31.1 | 30.4 | 32.9 | 31.9 | 34.5 |
| 8 | 22.5 | 22 | 24.8 | 33.4 | 36.1 | 35.5 | 38.4 | 37.6 | 40.7 | 39.7 | 43 | 41.7 | 45 |
| 9 | 28.4 | 27.9 | 31.3 | 42.2 | 45.7 | 44.9 | 48.6 | 47.6 | 51.5 | 50.3 | 54.4 | 52.7 | 57 |
| 10 | 35.1 | 34.4 | 38.7 | 52.1 | 56.4 | 55.4 | 60 | 58.8 | 63.5 | 62.1 | 67.1 | 65.1 | 70.4 |
| 11 | 42.5 | 41.6 | 46.8 | 63.1 | 68.2 | 67.1 | 72.5 | 71.1 | 76.9 | 75.1 | 81.2 | 78.7 | 85.1 |
| 12 | 50.5 | 49.5 | 55.7 | 75.1 | 81.2 | 79.8 | 86.3 | 84.6 | 91.5 | 89.4 | 96.7 | 93.7 | 101 |
| 13 | 59.3 | 58.1 | 65.4 | 88.1 | 95.3 | 93.7 | 101 | 99.3 | 107 | 105 | 113 | 110 | 119 |
| 14 | 68.8 | 67.4 | 75.9 | 102 | 110 | 109 | 118 | 115 | 125 | 122 | 132 | 128 | 138 |
| 16 | 89.9 | 88.1 | 99.1 | 133 | 144 | 142 | 153 | 150 | 163 | 159 | 172 | 167 | 180 |
| 17 | 101 | 99.4 | 112 | 151 | 163 | 160 | 173 | 170 | 184 | 179 | 194 | 188 | 203 |
| 18 | 114 | 112 | 125 | 169 | 183 | 180 | 194 | 190 | 206 | 201 | 218 | 21 | |
