Grade 30 Proof Coil Chain

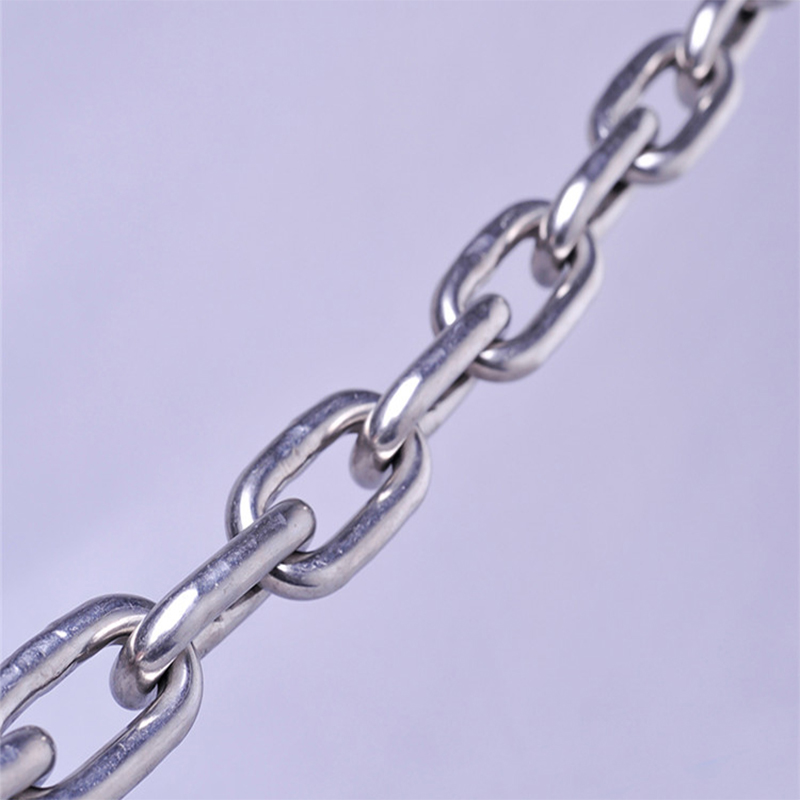

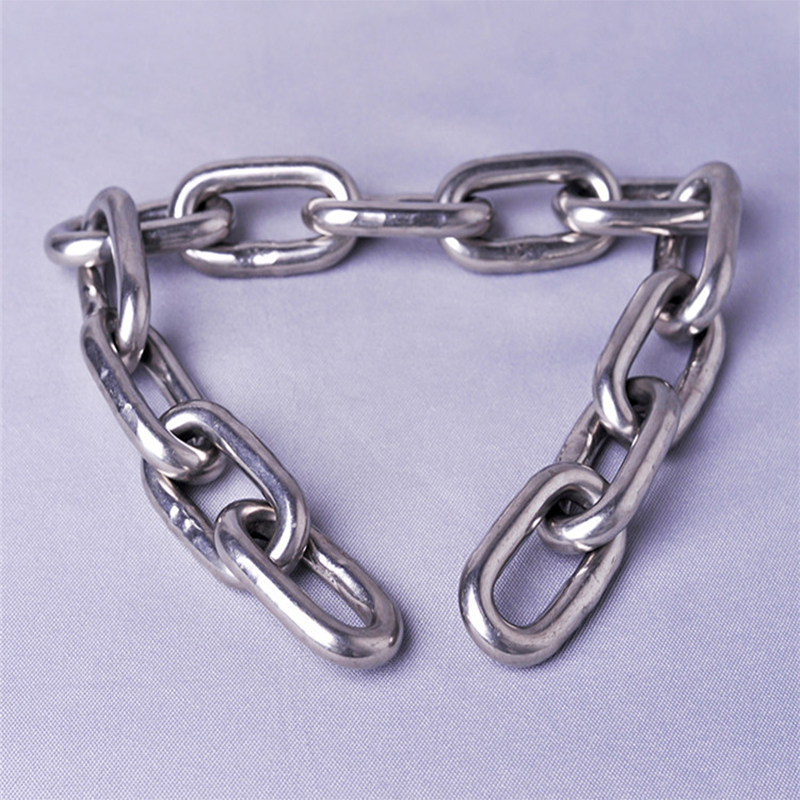

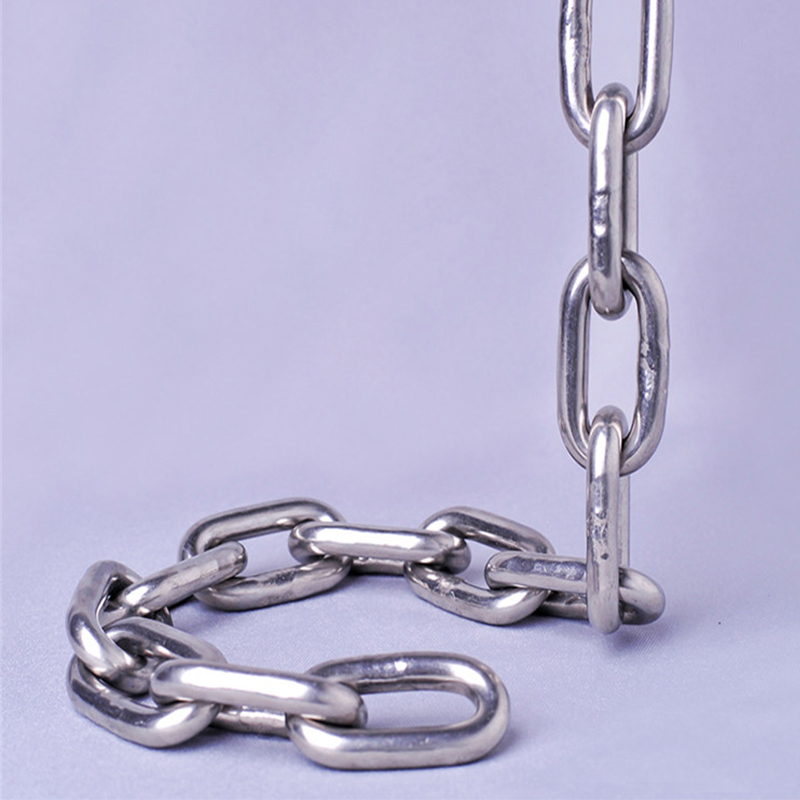

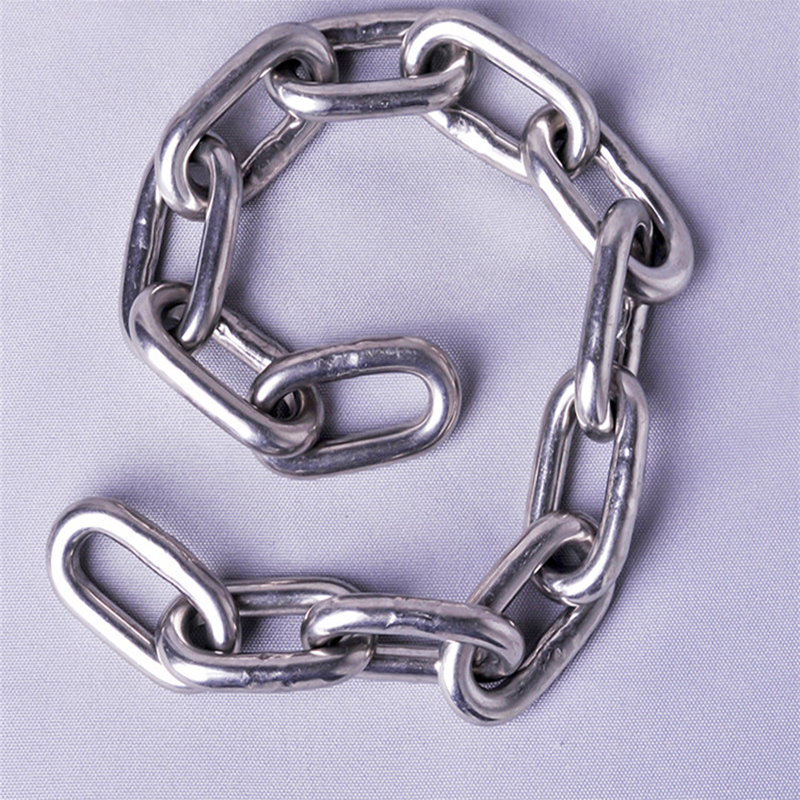

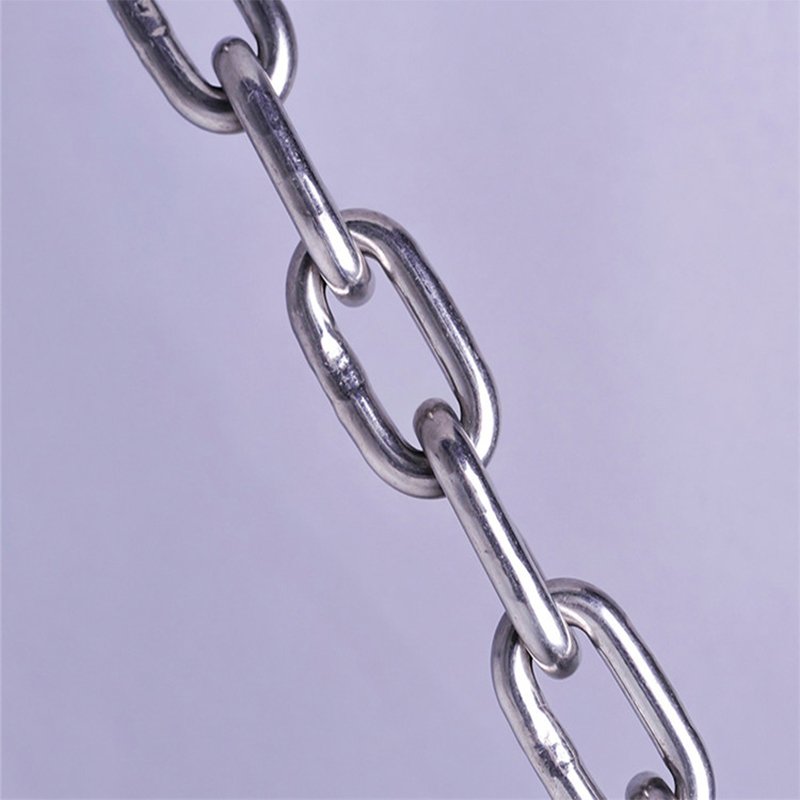

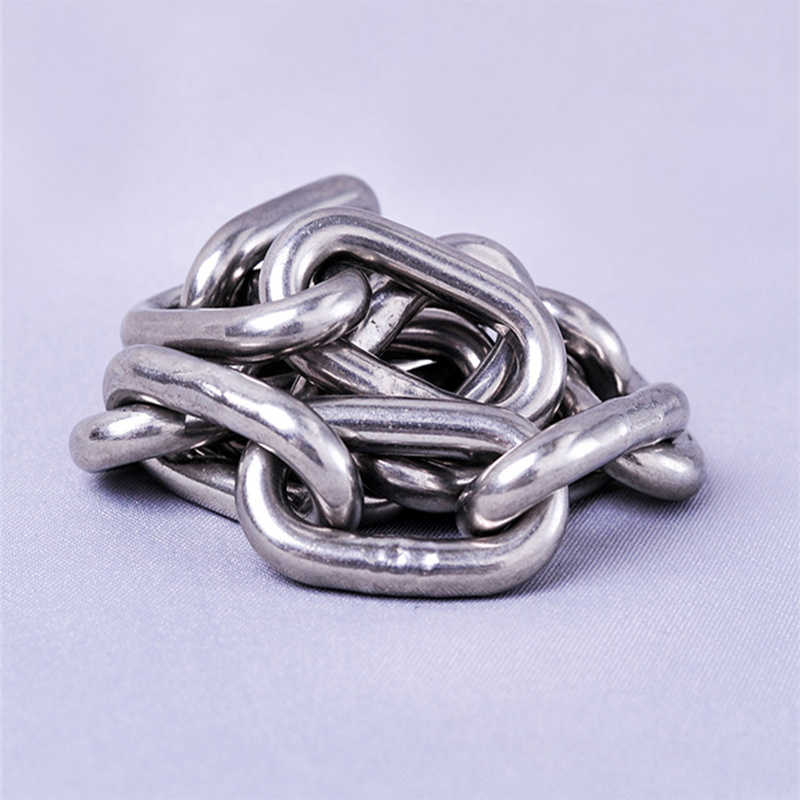

Grade 30 Proof Coil ChainCarbon Steel.Minimum Ultimate load is 4 times the Working Load Limit.Proof Tested at 2 times the Working Load Limit with certification.Finish – Self colored and galvanized.
Introduction

Grade 30 Proof Coil Chain is made from low carbon steel and is a general utility chain for such used as farm, log chain, tow chain and switch chain.

Caution:

Do Not Use for Overhead Lifting.

DO NOT EXCEED THE WORKING LOAD LIMIT.

Parameter

Grade of Chain: NACM (National Association of Chain Manufacturers & ASTM (American Society for Test Materials) classify chains in various grades. The higher the grade, the higher the working load limit for the same size of chain.

Working Load Limit (WLL): (rated capacity) Is the maximum working load that should be applied In direct tension to an undamaged straight length of chain.

Proof Test: (manufacturing test force) Is a term designating the minimum tensile force which has been applied to a chain under a constantly increasing force In direct tension during the manufacturing process. These loads are manufacturing integrity tests and shall not be used as criteria for service or design purpose.

Minimum Breaking Force: The minimum force at which the chain during manufacture has been found by testing to break when a constantly increasing force is applied in direct tension. Breaking force values are not guarantees that all chain segments will endure these loads. This test is a manufacturer’s attribute acceptance test and SHALL NOT be used as criteria for service and design purpose.

Overhead Lifting: The process of lifting that would elevate a freely suspended load to such a position that dropping a load would present a possibility of bodily injury or Property damage.

draw

Size
D
Inside Lenght
A
Outside Width
B
Working Load Test Load Breaking Load Weight Per M
MM +/-MM MM +/-MM MM +/-MM KG N N KG
3 0.5 26 1.2 12 0.6 55 1050 3200 0.15
4 32 1.5 16 0.8 100 2000 6000 0.27
5 35 1.8 20 1 160 3150 10000 0.43
6 42 2 24 1.2 224 4500 14000 0.63
7 49 2.5 28 1.4 300 6000 18000 0.86
8 52 2.5 32 1.6 400 8000 25000 1.1
9 59 3 36 1.8 530 10500 32000 1.41
10 1 65 3.2 40 2 630 12500 40000 1.75
11 72 3.4 44 2 790 15800 47500 2.11
12 78 3.6 48 2.3 940 18800 56500 2.55
13 82 4 52 2.5 1000 21200 63000 2.95
16 100 5 64 3.2 1600 33000 100000 4.45
18 113 5.2 70 3.2 2120 42300 127000 5.65
19 119 5.6 72 3.4 2370 47300 142000 6.25
20 120 6 75 3.8 2500 50000 160000 7
22 127 6 82 4 3170 63300 190000 8.55
25 140 6.6 88 4.2 4090 81700 245000 10.9
28 152 7 96 4.7 6000 120000 300000 13.9
32 171 7.8 108 5.2 8000 160000 400000 18.2
Standards

Standard: Grade 30 Proof Coil Chain

MOQ: 100 Meters

Package: Carton + Steel Pallet
