Mooring Rope
PE Fiber Mooring Rope (8 & 12-Strand) close left right

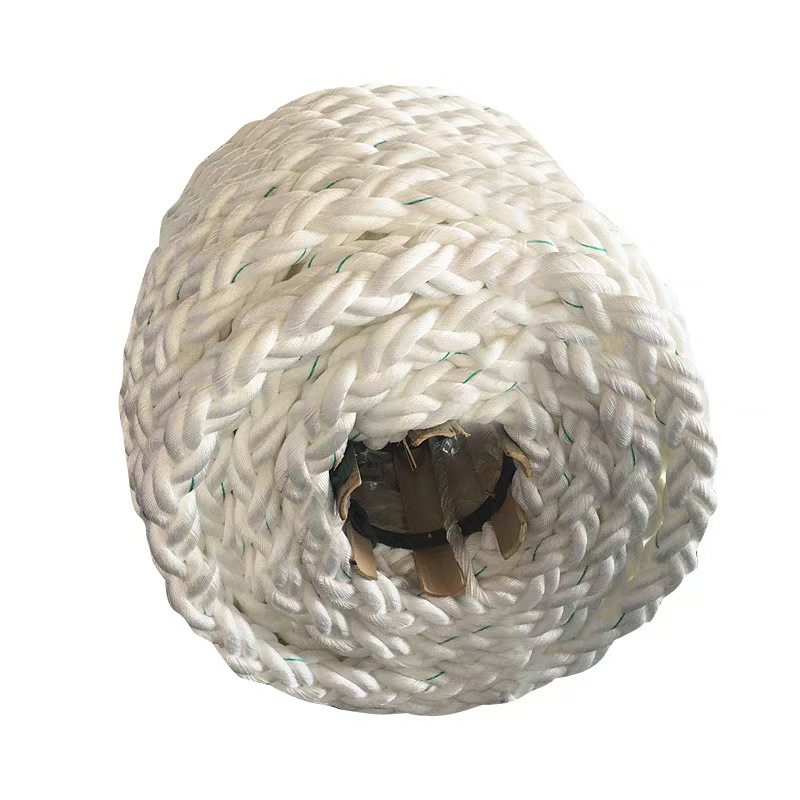

PE Fiber Mooring Rope (8 & 12-Strand)

Discover our premium PE fiber mooring rope, made from high-modulus polyethylene (HMPE). This high-strength, lightweight, and floating mooring line offers superior performance over traditional steel wire ropes. Ideal for marine, offshore, and industrial applications, our fiber mooring rope ensures maximum safety and durability. Available in 8-strand and 12-strand constructions, certified by DNV, ABS, and more.

Applications:

Our PE fiber mooring rope is versatile and ideal for a wide range of applications:



• Vessel Mooring: Suitable for all types of commercial vessels, including tankers, bulk carriers, and container ships.

• Offshore Engineering: Used for positioning and anchoring offshore oil rigs and Floating Production Storage and Offloading (FPSO) units.

• Port Operations: Ideal for tow lines on tugboats and mooring for harbor service vessels.

• Military & Defense: Used for mooring and towing naval ships and special-purpose vessels.

• Lifting Slings: Can be used as high-strength, lightweight lifting slings.

• Fishery & Aquaculture: Used for mooring large fishing vessels and aquaculture cages.


Email
    • Introduction

    PE Fiber Mooring Rope (8 & 12-Strand): The Future of Maritime Mooring

    In the demanding marine environment, safety and reliability are paramount. Our PE fiber mooring rope is engineered from advanced high-modulus polyethylene (HMPE) fiber, refined with a specialized resin treatment and leading international production technology. This high-performance mooring rope is designed to surpass the capabilities of traditional steel wire ropes, offering you unparalleled strength, durability, and ease of handling.



    Compared to steel wire ropes of the same diameter, our HMPE mooring rope is stronger yet weighs only 15% as much. This revolutionary difference not only simplifies handling but also significantly reduces operational risks. With a density lower than water, it is a naturally floating mooring line, making it easy to deploy and retrieve in all weather conditions.



    We offer both 8-strand and 12-strand braided constructions, which can be equipped with an additional protective cover upon request to further enhance their exceptional abrasion resistance. Whether you are in commercial shipping, offshore oil and gas, or naval defense, our PE fiber mooring rope is the ideal choice for securing your most valuable assets.

    Key Characteristics:

    • Ultra-High Strength: Stronger than steel wire rope of the same diameter, providing superior safety margins.

    • Lightweight and Floatable: Weighing only 15% of steel wire rope and with a density of 0.97 g/cm³, this floating mooring line is exceptionally easy to handle.

    • Low Elongation: With an elongation of just 3.5-4.5%, it ensures mooring stability and precision.

    • Exceptional Fatigue Resistance: Fatigue life is 1,000 times that of steel wire and nylon ropes, resulting in a longer service life.

    • Environmental Resilience: Soft, UV-resistant, and corrosion-resistant, it performs exceptionally well in harsh marine environments.

    • Good Bending Performance: Easy to coil and store, and resistant to kinking.






    Parameter

    Our PE fiber mooring rope is available in a wide range of specifications to meet your specific requirements. Below is the detailed parameter table:



    Diameter

    (mm)

    Circumference

    (Inch)

    Linear Density

    (ktex)

    Theoretical Weight

    (kg/200m)

    Min. Breaking Load

    (KN)

    Min. Breaking Load

    (Ton)

    20

    2-1/2

    232

    46.4

    380

    340

    28

    3-1/2

    445

    89

    680

    610

    36

    4-1/2

    720

    144

    1040

    940

    40

    5

    881

    176.2

    1260

    1130

    48

    6

    1250

    250

    1700

    1530

    56

    7

    1690

    338

    2260

    2030

    60

    7-1/2

    1930

    386

    2530

    2280

    72

    9

    2780

    556

    3520

    3170

    80

    10

    3430

    686

    4300

    3870

    96

    12

    4970

    994

    6180

    5560

    120

    15

    7720

    1544

    9440

    8500

    140

    17-1/2

    10510

    2102

    12560

    11320


    Standards

    Our PE fiber mooring rope complies with the most stringent international standards, ensuring the highest quality and reliability. We are committed to providing our customers with products they can trust.



    •ISO 10325:2018: The international standard specifically for high-modulus polyethylene (HMPE) fiber ropes, covering 8-strand, 12-strand, and covered constructions.

    • ISO 2307:2019: Specifies the general testing methods for the physical and mechanical properties of fiber ropes, ensuring accuracy and comparability of data.

    • ISO 9554:2019: The general specification for synthetic fiber ropes, ensuring products meet fundamental industry requirements.

    • OCIMF MEG4: Compliant with the latest Mooring Equipment Guidelines (MEG4) published by the Oil Companies International Marine Forum (OCIMF), suitable for high-stakes applications like tankers and gas carriers.

    • Classification Society Type Approval: Our products are available with type approval certificates from major classification societies upon request, including DNV, ABS, LR, BV, CCS, and KR, verifying their suitability for classed vessels and offshore installations.
