The tensioners are available in following sizes to match the long link lashing chains for roro lashing and general cargo lashing:
9mm Tension Lashing Lever, Load binder with chain & hook;
11mm Tension Lashing Lever, Load binder with chain & hook;
13mm Tension Lashing Lever, Load binder with chain & hook.
Applications: Ro-Ro Vehicle Lashing, Trailer Securing, Heavy Equipment Transport, Offshore Module Transportation, General Cargo Restraint.
Material: Long Link Chain with Drop Forged End Fittings.
Heat Treatment: Quenched and Tempered.
Compatible Tensioners: 9 mm, 11 mm, 13 mm Tension Lashing Levers.
Surface Finish: Powder Coated or Galvanized.
Available Colors: Natural, Green, Red, Orange, Blue, Black.
Product Features:
1. Long Link Design: Provides flexible adjustment and easy connection to hooks, shackles, turnbuckles, and deck fittings.
2. Forged Components: End fittings are manufactured from drop forged steel for reliable load transfer and repeated service.
3. Corrosion Protection: Available with powder coated or galvanized finish for marine and offshore environments.
4. Marine Applications: Suitable for Ro-Ro vessels, cargo ships, offshore transportation, and project cargo securing.
5. Customization: Custom chain lengths, end fittings, markings, colors, and specifications available upon request.
6. Restriction: Designed for cargo lashing only. Not for overhead lifting or suspended load handling.

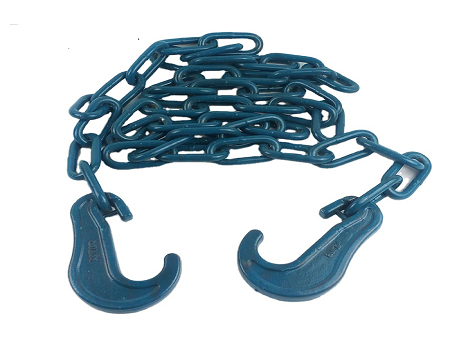

Long Link Chain Lashings with End Fittings are designed for Ro-Ro lashing and general cargo securing applications. The assemblies combine long link chain, forged end fittings, and compatible tensioning systems to provide secure cargo restraint during marine transportation. Multiple chain sizes are available to match different vessel securing requirements and cargo weights.
| Model | Chain Size | End Fittings | Material | Heat Treatment | Surface Finish |
|---|---|---|---|---|---|
| LCL-9 | 9 mm | Chain & Hook | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized |
| LCL-11 | 11 mm | Chain & Hook | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized |
| LCL-13 | 13 mm | Chain & Hook | Drop Forged Steel | Quenched & Tempered | Powder Coated / Galvanized |

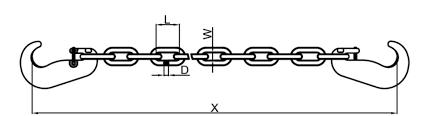

| Chain Size | D | L | L1 | MBL | WEIGHT |
| mm | mm | mm | mm | KN | kg |
| 9 | 11 | 575 | 275 | 100 | 3.4 |
| 11 | 12 | 585 | 345 | 150 | 4.5 |
| 13 | 14 | 595 | 385 | 200 | 5.6 |
Manufactured using drop forged steel components with quenched and tempered heat treatment for marine cargo lashing systems.
Each assembly passes dimensional inspection, component inspection, assembly verification, and mechanical function testing before shipment.
Suitable for Ro-Ro lashing, general cargo securing, offshore transportation, and marine cargo restraint operations.
Inspect regularly for corrosion, chain elongation, hook wear, deformation, coating damage, and excessive wear before use.
