Marine Cargo Lashing Application

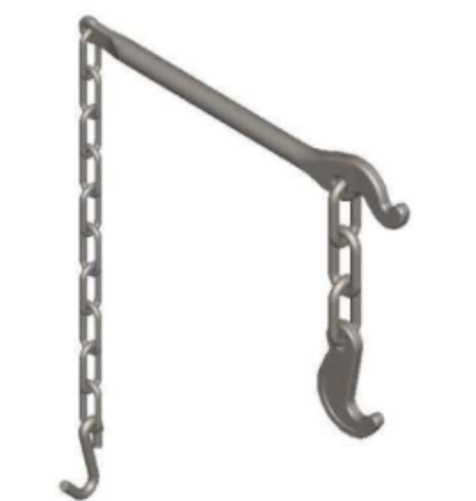

Chain Tensioner is a mechanical load tightening device designed for Ro-Ro lashing and general cargo securing operations. The tensioner is used together with long link lashing chains to generate and maintain restraint force during marine transportation.

Typical applications include:

1. Ro-Ro vessel cargo securing

2. General cargo lashing

3. Heavy equipment transport

4. Offshore module transportation

5. Port cargo handling

6. Project cargo securing

The tensioner forms part of a complete cargo restraint system consisting of lashing chains, deck securing points, and cargo attachment points.

Drop Forged Steel Construction

The main body and handle are manufactured from drop forged steel.

Drop forging improves:

• Material grain continuity

• Structural consistency

• Impact resistance

• Tensile strength

Compared with cast components, forged structures reduce internal defects and provide more uniform mechanical properties under repeated loading conditions.

The tensioner body is designed to withstand the cyclic loading generated by vessel motion during transportation.

Quenched and Tempered Heat Treatment

All load-bearing components are heat treated through quenching and tempering processes.

The heat treatment process improves:

1. Tensile strength

2. Yield strength

3. Wear resistance

4. Fatigue resistance

Marine cargo restraint systems experience continuous dynamic loading caused by rolling, pitching, vibration, and wave impact forces. Heat treatment helps maintain mechanical performance under these operating conditions.

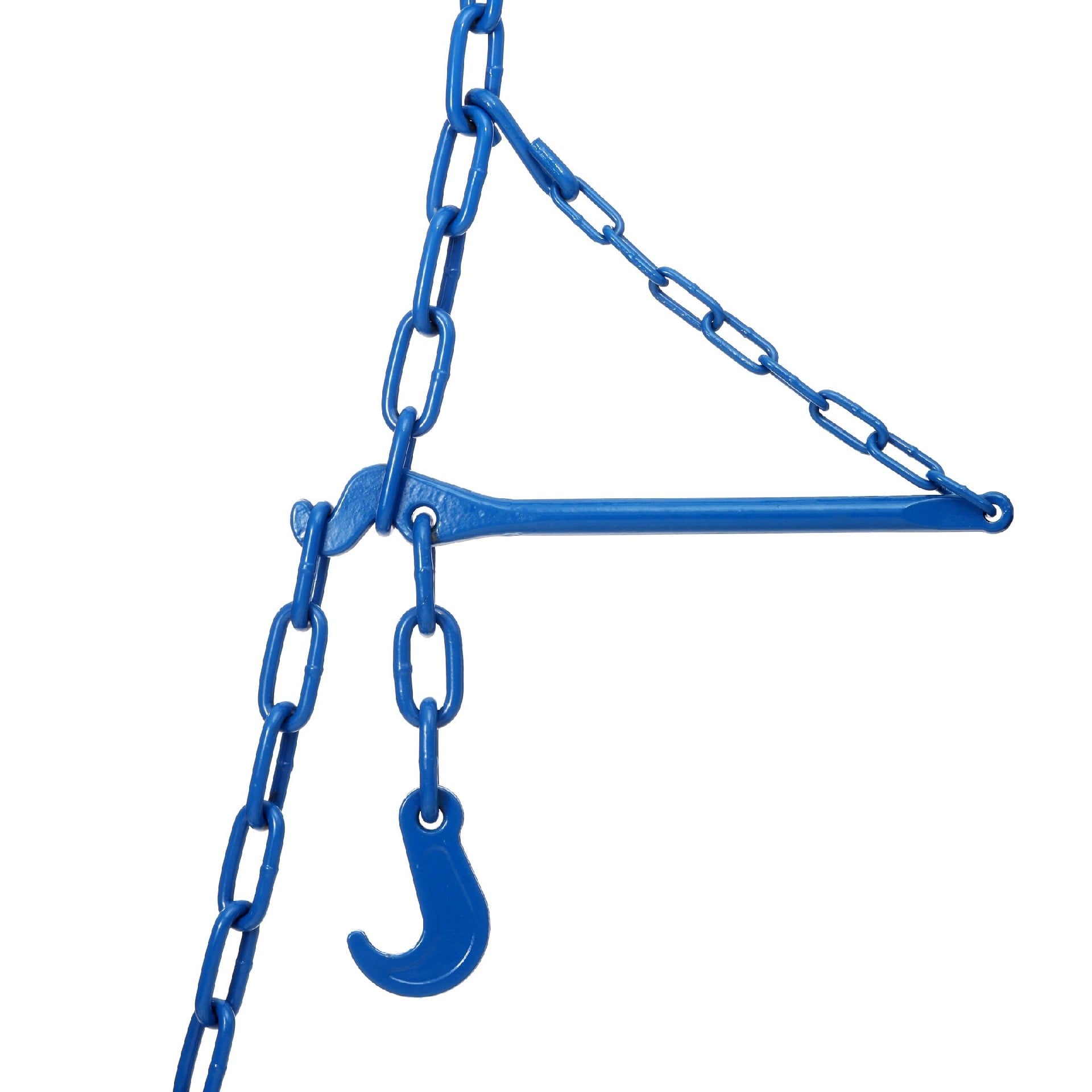

Lever Tensioning Mechanism

The chain tensioner operates through a lever-actuated tightening system.

The mechanism allows operators to:

• Apply chain tension

• Adjust lashing force

• Remove slack from securing systems

• Maintain cargo restraint during transport

The lever system generates mechanical advantage and allows rapid installation during cargo loading operations.

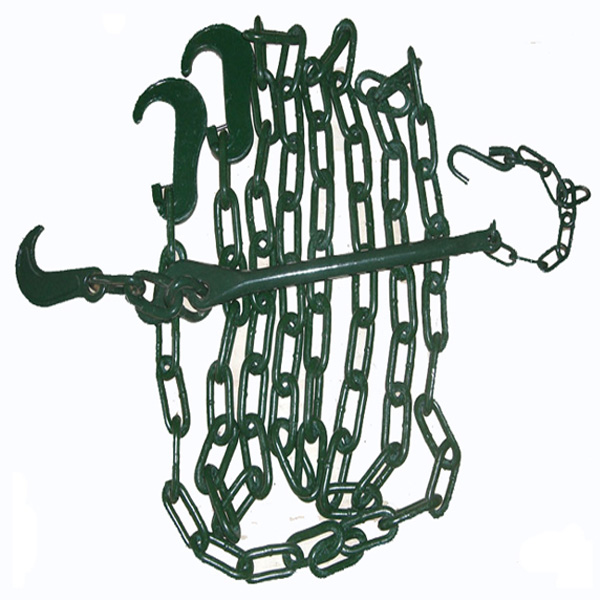

Compatibility with Long Link Lashing Chain

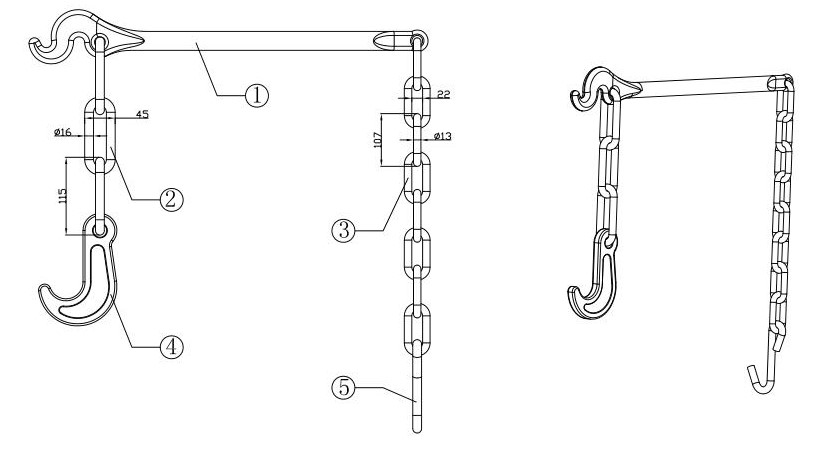

Chain Tensioners are manufactured to match common marine lashing chain sizes.

Available sizes include:

1. 9 mm Tension Lashing Lever

2. 11 mm Tension Lashing Lever

3. 13 mm Tension Lashing Lever

These sizes correspond to commonly used long link lashing chains found on Ro-Ro vessels and general cargo ships.

Proper size matching between chain and tensioner is required to maintain compatibility throughout the cargo restraint system.

Surface Protection Systems

The tensioner can be supplied with:

• Powder coated finish

• Hot dip galvanized finish

These surface treatments help protect components from:

1. Salt spray exposure

2. Seawater contact

3. Humidity

4. Outdoor storage conditions

Galvanized finishes are commonly selected for marine applications where long-term corrosion resistance is required.

Custom Manufacturing Options

Special specifications can be manufactured according to customer requirements.

Available customization options include:

• Custom markings

• Custom colors

• Special dimensions

• Project-specific identification

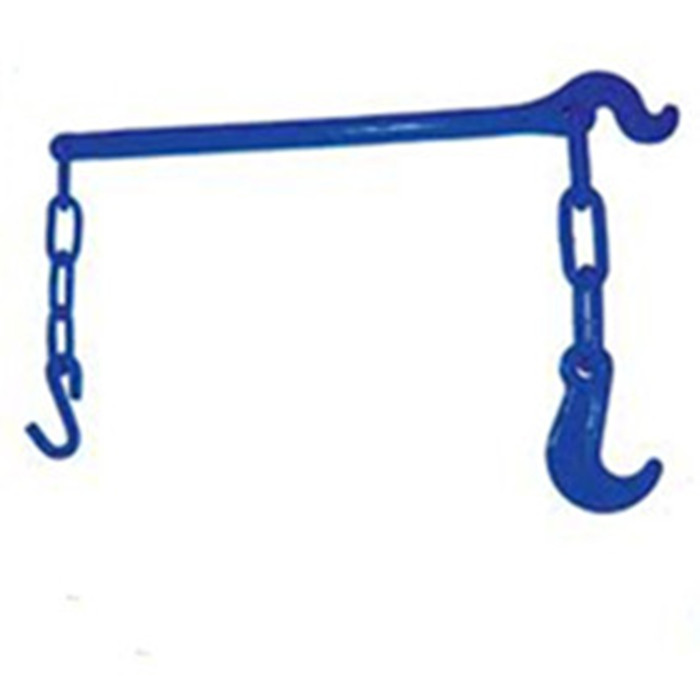

Available colors include natural color, green, red, orange, blue, and black.

Application Restriction

Chain Tensioners are designed for cargo restraint and lashing operations.

The product is not intended for:

• Overhead lifting

• Crane lifting

• Personnel lifting

• Suspended load handling

Lashing equipment and lifting equipment are manufactured according to different standards and service requirements.

Manufacturing Standards

Manufactured from drop forged steel with quenched and tempered heat treatment for marine cargo lashing applications.

Testing Standards

Each tensioner passes dimensional inspection, visual inspection, assembly inspection, and mechanical function verification before shipment.

Application Standards

Suitable for Ro-Ro lashing, general cargo securing, offshore transport, and marine cargo restraint operations.

Maintenance Standards

Inspect regularly for corrosion, thread wear, deformation, cracks, coating damage, and excessive wear before use.

Chain Tensioners are designed to match long link lashing chains commonly used in Ro-Ro transportation and general cargo securing systems. The units are manufactured from drop forged steel and heat treated through quenching and tempering processes. Various surface finishes and custom markings are available to meet vessel and cargo securing requirements.
