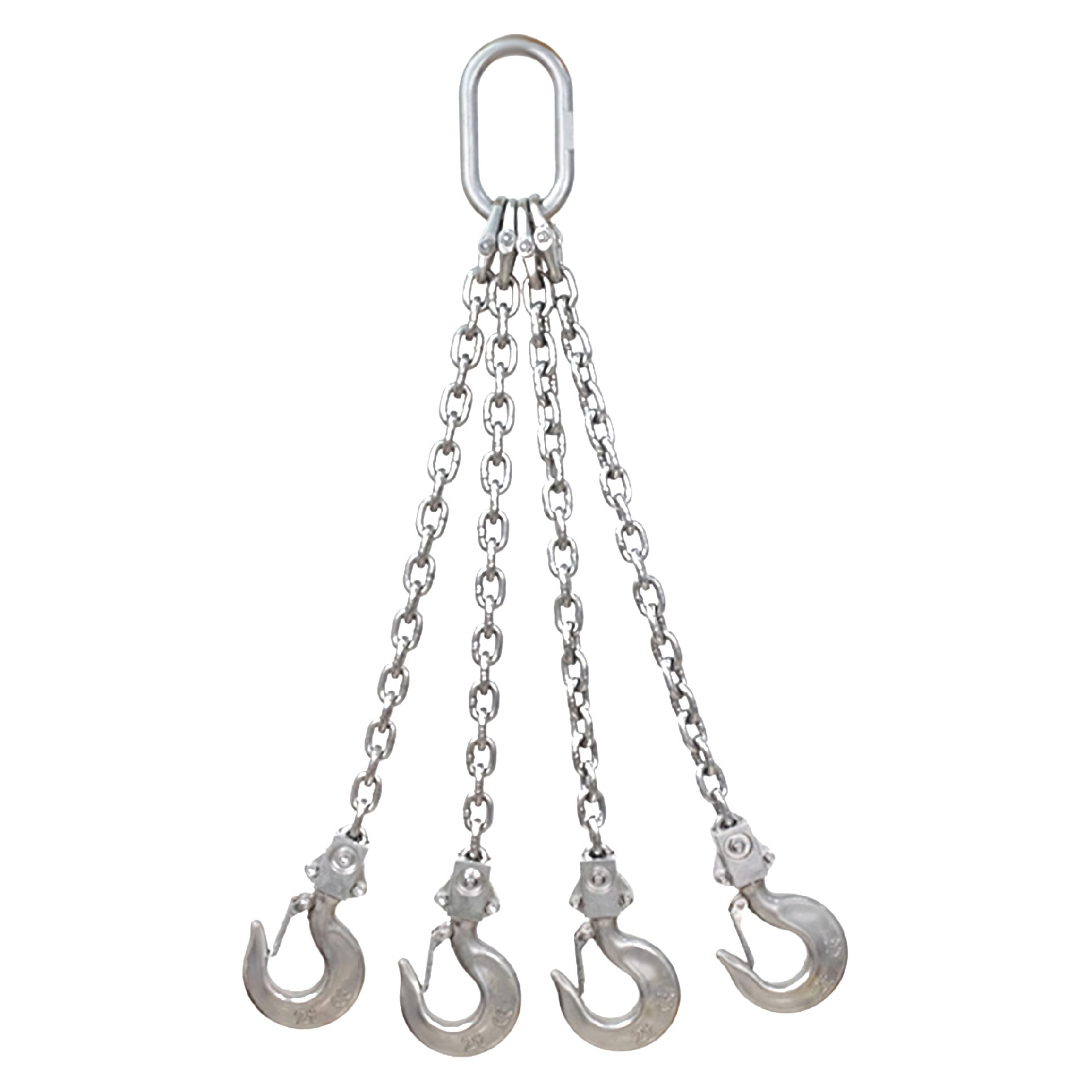

Stainless Steel Grade 60 Chain Sling is a lifting assembly consisting of stainless steel lifting chain and matched load-bearing components such as master links, connecting links, shortening devices and lifting hooks. It is available as single-leg, two-leg, three-leg and four-leg assemblies, with the chain diameter, effective working length and end fittings selected according to the load and lifting arrangement.

The Grade 60 system is intended specifically for slinging and lifting loads. Selection of the sling must consider not only the load weight but also the number of loaded legs, sling angle, load symmetry, temperature and operating environment. The WLL marked on the identification tag must not be exceeded.

Lifting Configuration

     1-Leg: The lifting point should be vertically above the load's center of gravity.

     2-Leg: The lifting points should be positioned on both sides of the center of gravity.

     3-Leg / 4-Leg: The lifting points should be distributed around the center of gravity to achieve controlled load distribution.

For multi-leg assemblies, the inclination angle β must be greater than 15° and must not exceed 60°.

Working Conditions

     Full rated WLL applies from -40°C to +250°C.

     From +250°C to +350°C, the permissible WLL is reduced to 75%.

     From +350°C to +450°C, the permissible WLL is reduced to 50%.

     For AISI 318LN Duplex components, the maximum stated operating temperature is 350°C.

     Use in acids, alkalis or their vapors requires confirmation of material resistance for the actual chemical environment.

Load Conditions

     Chain legs must not be twisted or knotted.

     Hooks must carry the load in the hook saddle, not on the hook tip.

     Shock loading and jerking of the load must be avoided.

     When used in a choker hitch, the rated WLL is reduced to 80%.

     Where equal load distribution between sling legs cannot be ensured, the applicable WLL must be reduced according to the asymmetric loading conditions specified in the operating instructions.

High-Cycle Lifting

For applications exceeding 20,000 stress cycles, such as automated production and repetitive material-handling operations, the sling requires additional consideration for dynamic loading. The manual references DIN EN 818-7, mechanism group 1Bm/M3, and recommends reducing stress through appropriate chain sizing for high-cycle service.

Name

Stainless Steel Grade 60 Chain Sling

MOQ

1 Piece

Package

Carton + Steel Pallet

Manufacturing Standards

Manufactured from stainless steel lifting chain and compatible lifting components according to:

DIN 5688-1

DIN 5687

DIN 7541

Applicable DIN EN 818 lifting chain requirements

The chain sling is assembled with traceable components and marked with identification information including Working Load Limit (WLL).

Testing Standards

Each stainless steel chain sling is inspected before delivery, including:

Material verification

Dimensional inspection

Component inspection

Identification marking inspection

Working Load Limit verification

Proof test documentation

Test certificates and product traceability documents are available according to customer requirements.

Application Standards

Stainless Steel Grade 60 Chain Sling is designed for lifting operations in:

Marine equipment handling

Offshore maintenance

Food processing facilities

Chemical industry

Clean production environments

Industrial lifting operations

During use:

Load shall not exceed the marked WLL

Chain legs must not be twisted or knotted

Hooks must be loaded on the hook saddle

Multi-leg sling angles should be controlled within the permitted range

Maintenance Standards

Regular inspection shall include:

Chain link wear

Chain deformation

Hook condition

Component damage

Corrosion condition

Identification marking

The chain sling should be removed from service when:

Chain thickness is reduced due to wear

Chain links are permanently deformed

Hooks are damaged or excessively opened

Cracks or structural damage are found
