TopOne Chain offers high-strength Car Loader Chains for agricultural machinery and manure spreaders. Available in G50, G70, and G80 grades, our chains meet DIN standards for maximum durability and performance.

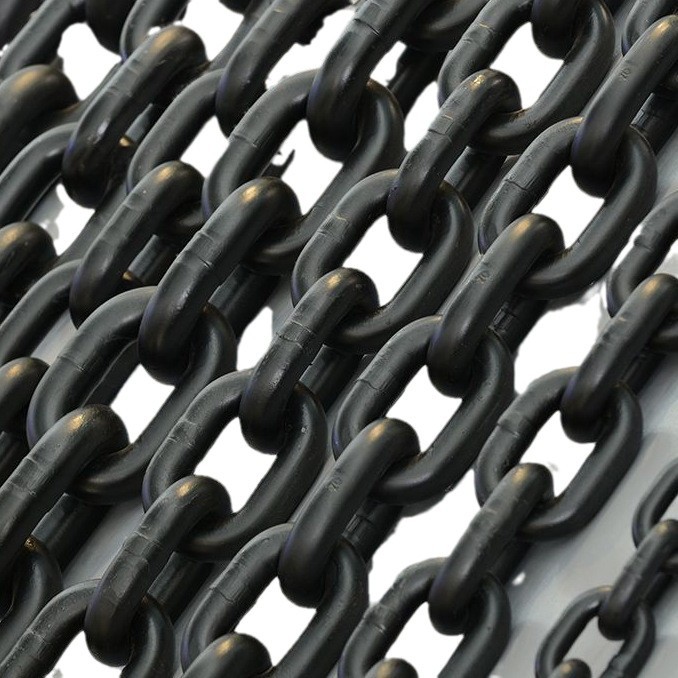

TopOne Chain’s Manure Spreader Chain is a robust and reliable solution engineered for the rigorous demands of the agricultural industry. Specifically designed for use in manure spreaders, floor conveyors, and other heavy-duty farm equipment, this chain provides the strength and durability needed for continuous operation in harsh environments. Our Manure Spreader Chains are manufactured from high-quality, heat-treated steel to ensure superior wear resistance, high tensile strength, and a long service life.
Available in multiple grades, including Case Hardened (G50), DIN 32895 (G70), and our high-performance Grade 80, our chains are built to handle heavy loads and abrasive materials. With a wide range of diameters and dimensions, we provide versatile solutions that can be customized to fit your specific machinery requirements, ensuring optimal performance and reliability for all your agricultural material handling needs.
Chain Applications:
· Manure Spreaders
· Agricultural Floor Conveyors (Spreader Aprons)
· Feed Wagons
· Forage Harvesters
· General Farm Material Handling
We offer a comprehensive range of Manure Spreader Chains in various grades and dimensions to match your equipment's specific requirements. The tables below detail the performance specifications for our different chain grades.
Chain Performance Specifications by Grade
Ø(dn) | Case Hardened (G 50) | DIN 32895 (G 70) | TopOne Chain (G 80) |
mm | WLL (t) | MTF (t) | BLL (t) |
8.0 | 1.28 | 3.19 | 5.10 |
9.0 | 1.63 | 4.06 | 6.50 |
9.5 | 1.81 | 4.53 | 7.25 |
10.0 | 2.00 | 5.00 | 8.00 |
11.0 | 2.44 | 6.09 | 9.75 |
12.0 | 2.89 | 7.22 | 11.55 |
13.0 | 3.39 | 8.47 | 13.55 |
14.0 | 3.96 | 9.91 | 15.85 |
16.0 | 5.13 | 12.81 | 20.50 |
WLL: Working Load Limit, MTF: Minimum Test Force, BLL: Breaking Load Limit |
Our Manure Spreader Chains are manufactured in compliance with internationally recognized standards to ensure quality and interchangeability. We also offer special dimensions to meet unique customer requirements.
Available Dimensions by Standard
DIN Standard | Grade | Ø(dn) (mm) | Dimension (mm) |
Special | 80 | 8.0 | 8 x 22.8 |
766 | 80 | 8.0 | 8 x 24 |
32895 | 80 | 8.0 | 8 x 31 |
766 | 80 | 9.0 | 9 x 27 |
32895 | 80 | 9.0 | 9 x 31 |
Special | 80 | 9.5 | 9.5 x 26.2 |
Special | 80 | 9.5 | 9.5 x 27 |
Special | 80 | 10.0 | 10.0 x 26.5 |
766 | 80 | 10.0 | 10 x 28 |
32895 | 80 | 10.0 | 10 x 31 |
32895 | 80 | 10.0 | 10 x 35 |
Special | 80 | 10.0 | 10 x 38 |
766 | 80 | 11.0 | 11 x 31 |
32895 | 80 | 11.0 | 11 x 35 |
· Connecting Solutions: We provide a variety of connecting links and can produce custom dimensions upon request.
· Drive Systems: Compatible drive wheels for manure spreaders are also available.
MOQ: 500 Meters
Package: Steel Drum or Wooden Box
