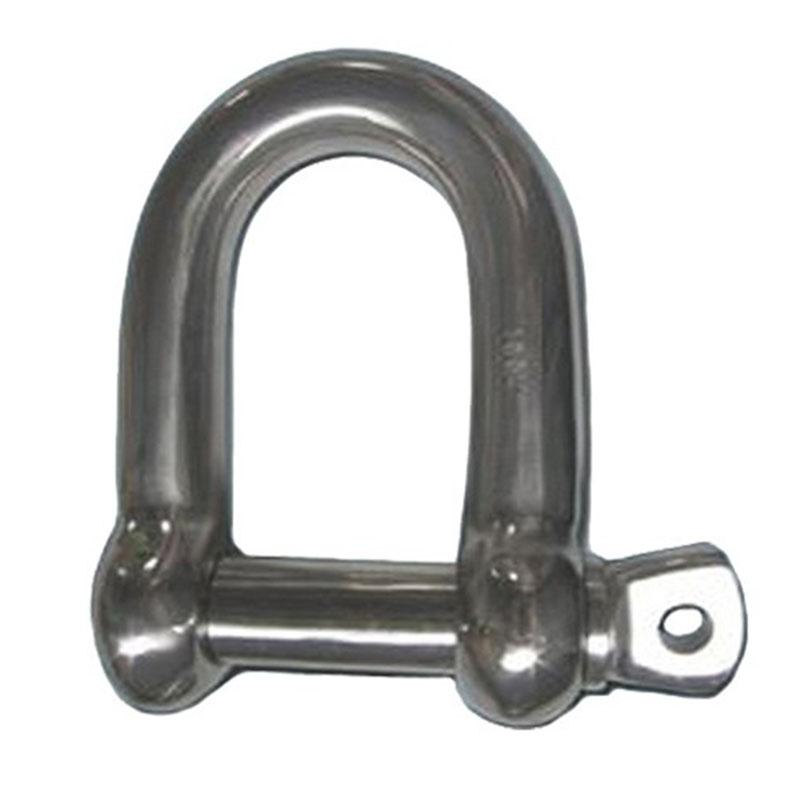

Commercial shackles are easily identified by the pin and body material being manufactured from the same diameter. The shackles are manufactured using superior grade raw material as per international qualitative standards. Our range of commercial pattern shackles is available in standard as well as customized sharps and sizes.
| Size | D | d | a | c | b | S.W.L. | Weight |
| per 100 pcs | |||||||
| mm | mm | mm | mm | mm | Kg | Kg | |
| M5 | 5 | 5 | 10 | 19 | 11 | 80 | 1.9 |
| M6 | 6 | 6 | 13 | 25 | 14 | 100 | 3.4 |
| M8 | 8 | 8 | 16 | 32 | 18 | 200 | 7 |
| M10 | 10 | 10 | 19 | 38 | 20 | 320 | 13 |
| M11 | 11 | 11 | 22 | 44 | 23 | 400 | 16.5 |
| M12 | 12 | 12 | 25 | 51 | 26 | 520 | 24 |
| M16 | 16 | 16 | 32 | 64 | 33 | 800 | 50 |
| M20 | 20 | 20 | 38 | 76 | 40 | 1100 | 80 |
| M22 | 22 | 22 | 44 | 89 | 50 | 1500 | 130 |
| M25 | 25 | 25 | 51 | 100 | 57 | 2100 | 200 |
| M28 | 28 | 28 | 57 | 115 | 68 | 3000 | 300 |
| M32 | 32 | 32 | 64 | 127 | 73 | 3500 | 430 |
| M38 | 38 | 38 | 76 | 152 | 85 | 5000 | 675 |
| M45 | 45 | 45 | 90 | 180 | 96 | 7000 | 1,250 |
| M50 | 50 | 50 | 102 | 200 | 108 | 8000 | 1,750 |
